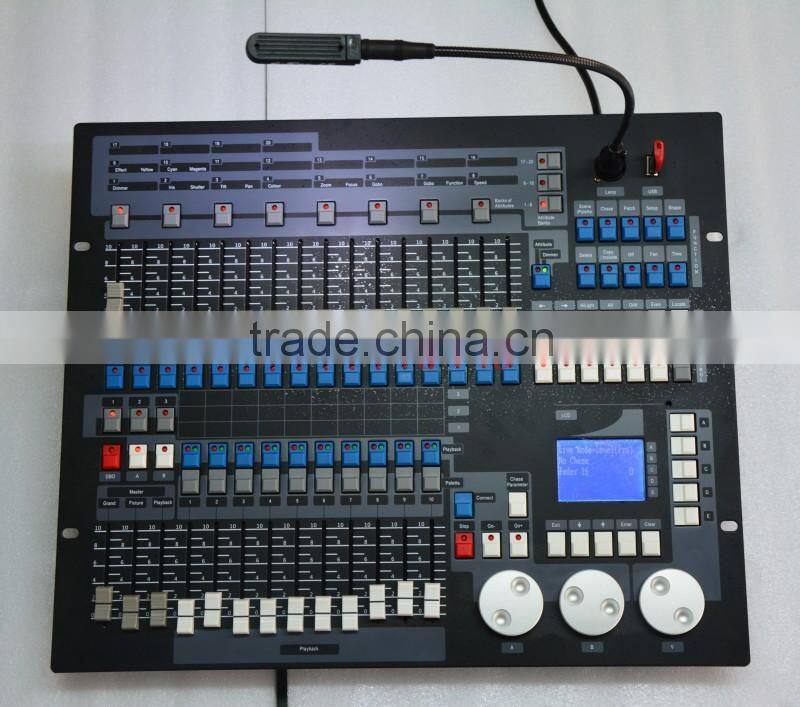

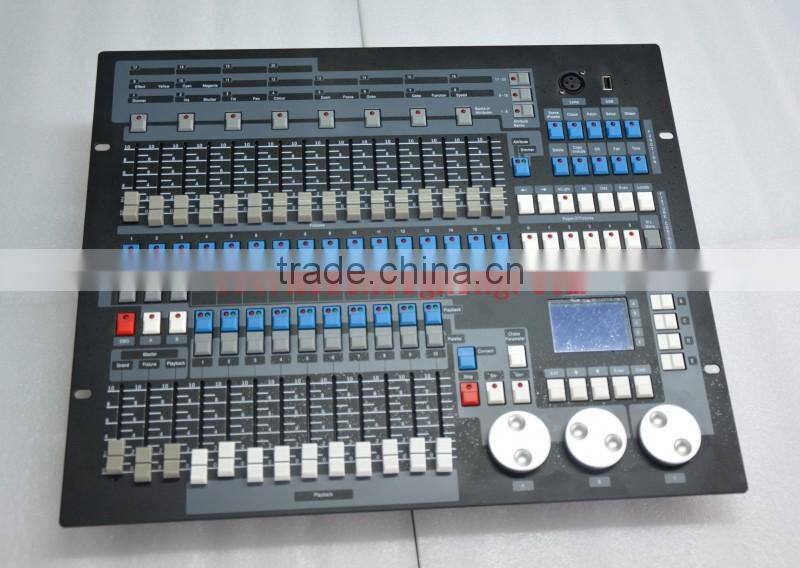

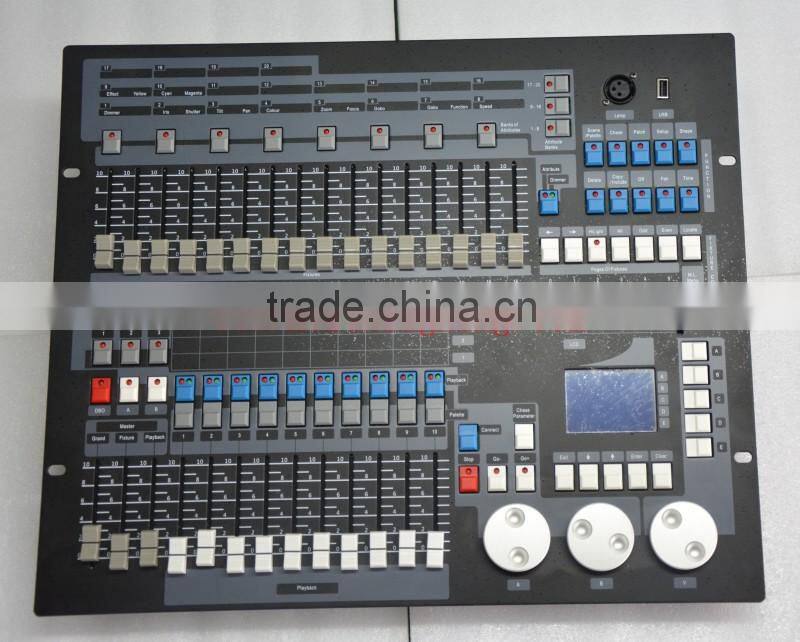

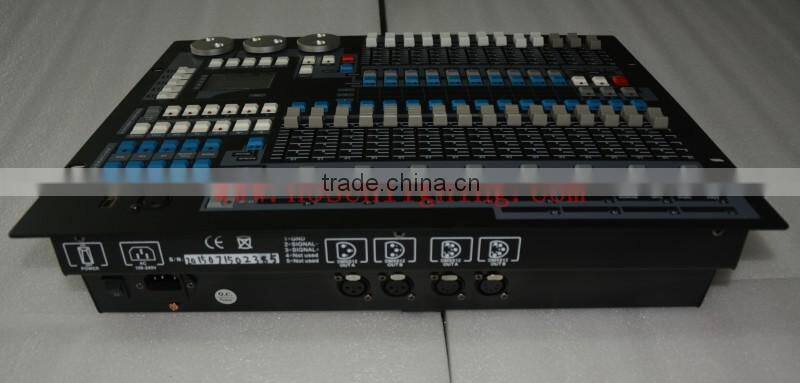

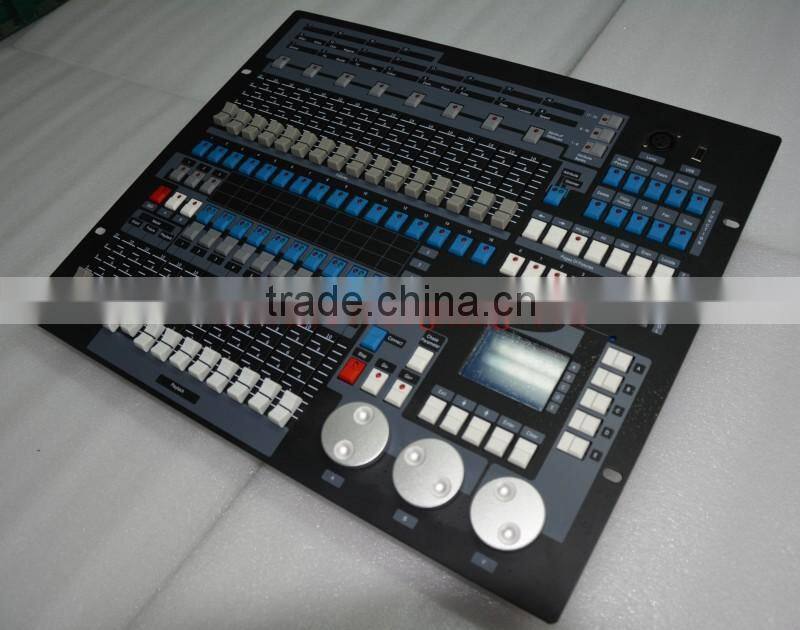

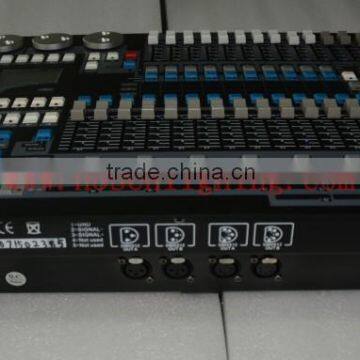

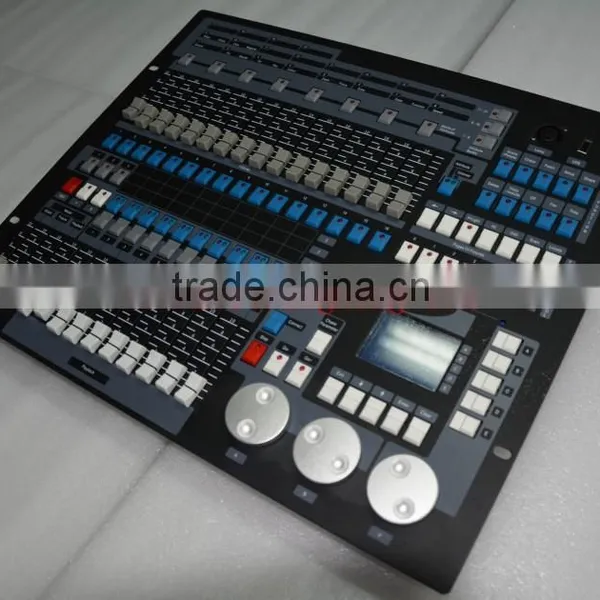

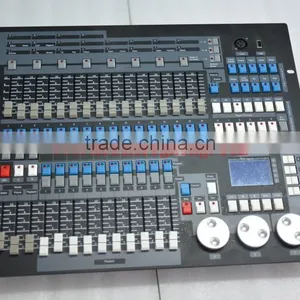

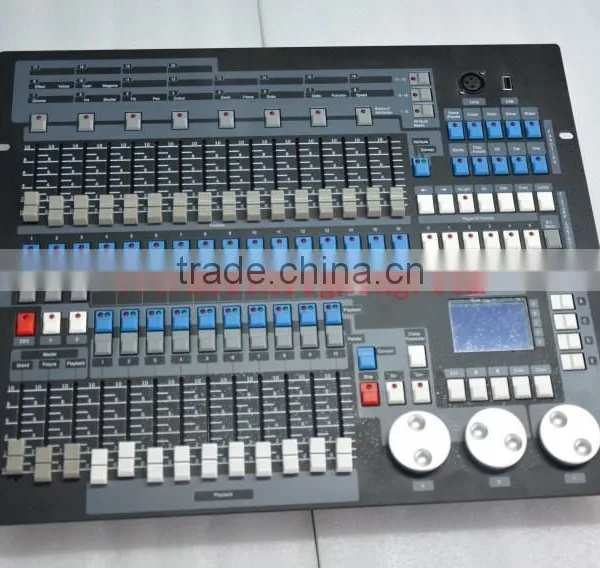

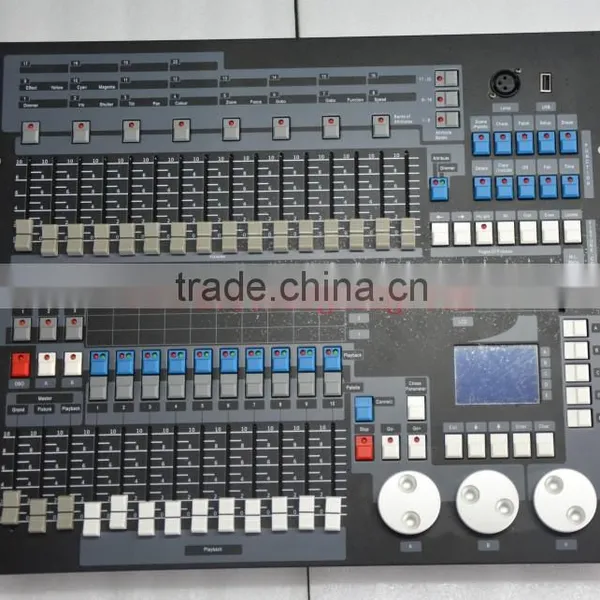

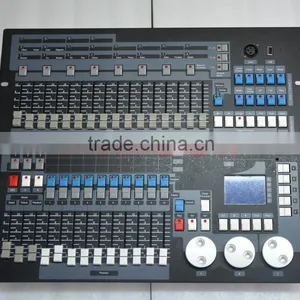

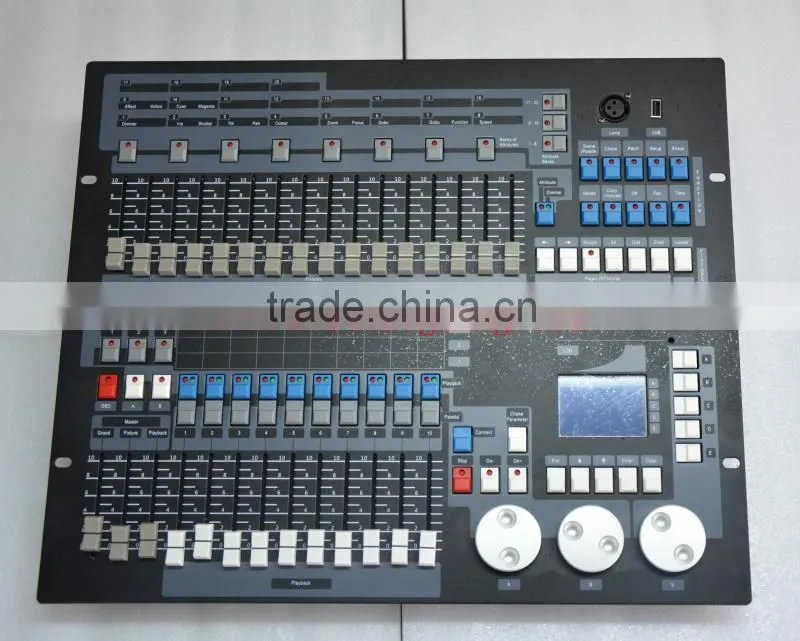

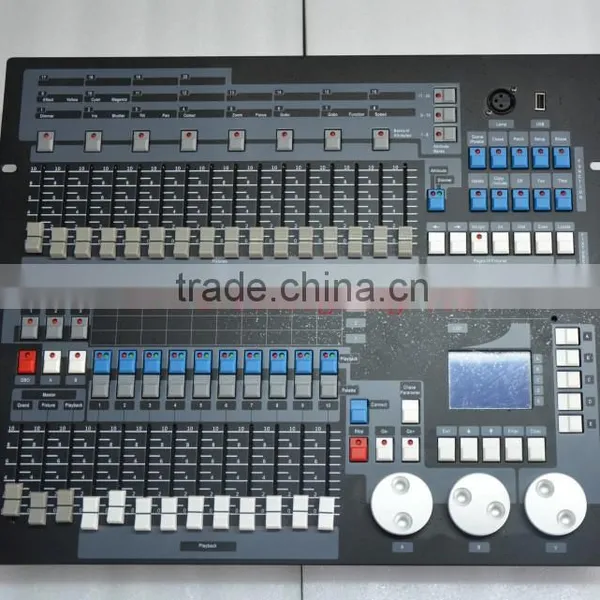

High quality Stage light console dmx 512 light controller 1024
HS-HK1024

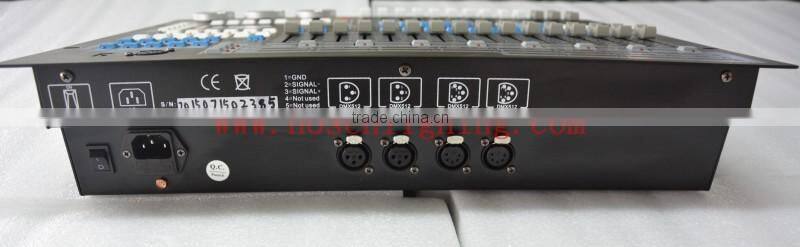

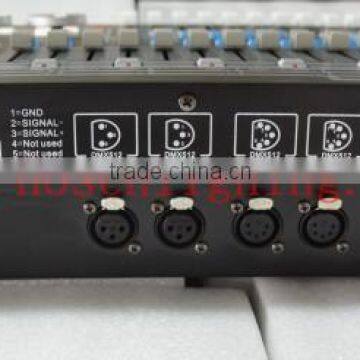

- DMX512/1990 ,up to 1024 DMX channels ,output with optical isolated
- Up to 96 intelligent Fixtures or 96 Dimmers can be controlled .
- Shape generator inside ,Shape generator can create effects such as circles ,spire,rainbow.etc
- 60 Playbacks can be store as chase or scene ,Up to 600 steps can be store in chase

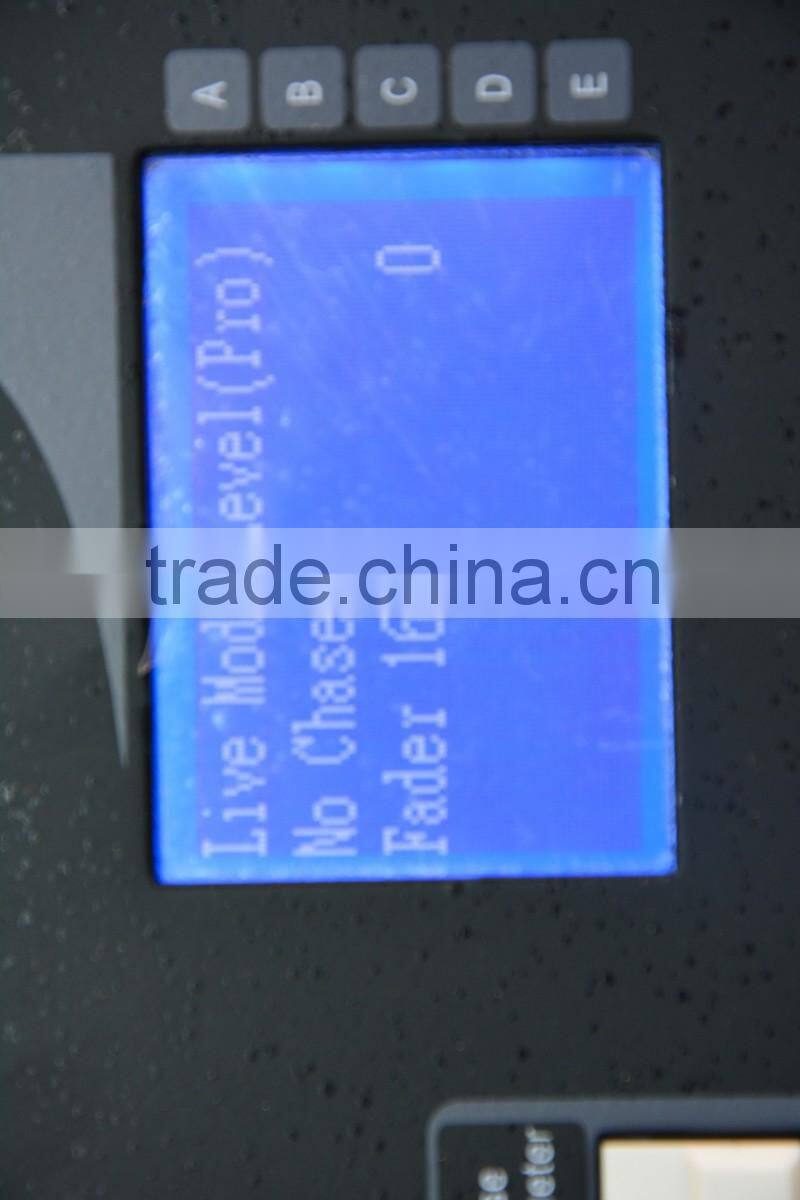

- LCD display with backlight
- 12V accessory operate light (optional)
- Power:AC 100 -240 v /50-60hz
- Size:485x420x105
1.1 Introduction
He King 1024 DMX controller can control up to 96 fixtures. It is compatible with the library in Avolite Pearl R20 format and featured with built-in shape effects of pan/tilt circle, RGB rainbow, beam dimming wave, etc. 10 scenes and 5 built-in shapes can be output simultaneously. Faders can be used to output scenes and adjust the intensity of the dimmer channels in the scenes.
1.2 Specifications
DMX512 channel number |
1024 |
Fixture |
96 |
Re-patched Fixture address |
Yes |
Swap Pan/Tilt |
Yes |
Reversed channel output |
Yes |
Channel slope modification |
Yes |
Channels for each fixture |
40 primary + 40 fine tune |
Library |
Avolite Pearl R20 library supported |
Scene |
60 |
Scenes to run simultaneously |
10 |
Total Scene steps |
600 |
Time control of Scenes |
Fade in/out, LTP slope |
Shapes for each Scene |
5 |
Scene and dimmer by slider |
Yes |
Swap Scene |
Yes |
Flash Scene |
Yes |
Shape generator |
Shapes of Dimmer, Pan/Tilt, RGB, CMY, Color, Gobo, Iris , Focus, Zoom |
Shapes to run simultaneously |
20 |
Master slider |
Global |
Real time blackout |
Yes |
Channel value by wheel |
Yes |
Channel value by slider |
Yes |
Dimmer by slider |
Yes |
USB Memory |
FAT32 supported |
2 Installation
2.1 Unpack
Please check the below items when unpack the package:
HeKing1024 x 1 unit
Installation CD x 1 piece
Power cable x piece
Optional Accessories
Flight case
Goose-neck lamp
USB Memory stick
2.2 Safety instructions
The unit must be well-grounded before using.
Do not splash any liquid on the unit.
Do not use or store the unit in a wet or dusty place.
1), Warranty Period:
All of our products have 12 months warranty.
also will send a part of the accessories along with goods.
2), After-sales service
Excellent service after sale, If there is any problem with the product (without
improper operation and outside force) , during the first year,free parts and after service will be provided.Professional service will be provided permanently.
3),Payment Terms:
T/T, Western Union, Paypal, Money Gram,L/C
4),About MOQ:
One piece is acceptable for the trial order, we welcome customer to test and evaluate our products.
5),Package:
International standard carton packaging or flight case as your requirement, using the EPE for safeguard, they will protect the light not damage.
6),Delivery Time:
For sample orders,3-5 working days after receiving the payment.
Big order depend on the quantity :Under 1000 pcs,10-20 days normally.
More than 1000 pcs,20-35 days.
7),Shipment:
DHL.UPS,FEDEX,TNT,AIR,SEA.We will chooe the best and most favorable way according to your order quantity.
Welcome your inquiry ,thanks !
