Specifications
1.Adopting digital control program,2.Multi-Needle Quilting Machine (YBD94''-3) with CE passed
3. Good after-sell service.

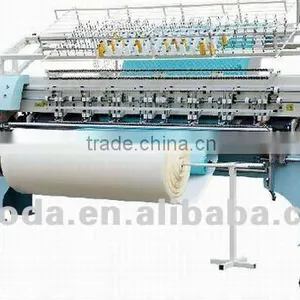

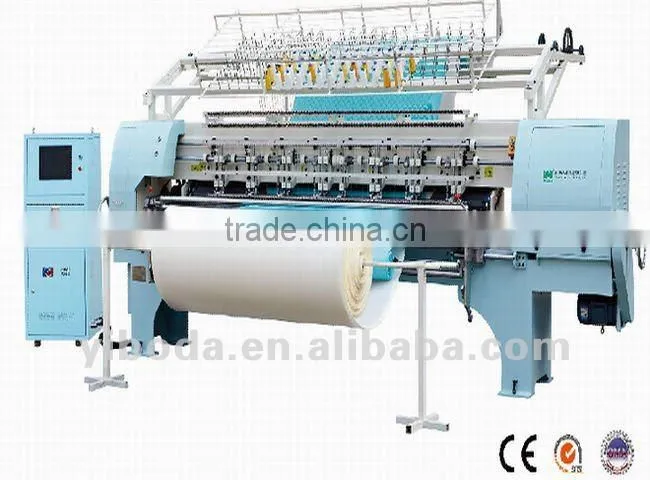

Quilting Bedding Machine (YBD94''-3)
YIBODA Industrial company brief introduction
Multi-needle quilting machine
The YIBODA series of computerized shuttle multi-needle quilting machines is suitable for many aspects of quilting, such as bedroom accessories, garments, and ornaments. This is easy and quick editing of patterns, quilting with 360°, function of pattern compensation, and function of automatic stop on breaking of thread.
Functions:
1. Adopting digital control program.
2. Saddles and rollers driven by Panasonic servo devices.
3. The revolution of the spindle controlled by Panasonic frequency conversion control devices.
4. Large number of built-in quilting patterns for your choice.
5. Easy and quick editing of patterns.
6. 360°Freedom of quilting 360¡ã all round patterns
7. Function to quilt independent patterns.
8. On-line help on operation.
9. with 500/m needle rate stitches between 2mm-6mm adjustable.
10. Function of pattern compensation, an effective solution to the distortion of patterns when quilting thick materials.
11. Simulation display of quilting.
12. Automatic needle raising and location brake system.
13. Function of automatic stop on breaking of thread (optional)
14. Infrared sensors to guarantee the safety of the operator
Specifications:
| Model | YBD94"-3 needle bar | Remarks: |
| Quilting width | 2438mm | |
| X stroke | 279.4mm | |
| Running speed | 400-500n/m | |
| Output speed | 30-100m/h | |
| Max thickness | 60mm | up to the quilting material,polyester wadding can reach 60mm, for sponge no more than 25mm |
| Max pattern size | 12"X12" | |
| Flying shuttle | 10# | bottom thread length 140m |
| Needle distance | 1 inch | |
| Needle row distance | 3 inch | |
| Stitch length | 2-6mm adjustable | |
| Rated Voltage | AC380V | |
| Power | 5.5kw | |
| Machine size | 480X120X165CM |
After-sell Service
- With 1 year guarantee
- Offering spare part when ship the machine
- Arrange client to our factory for product training, like installation, some technique details according to client’s requirement
- We can arrange our people to client’s factory for people training, settle any problem about the machine, but the food, room, ticket must be afforded by clients.
Finished Products Show
