Cooling Tower fill is the most important part of the cooling tower, its efficiency high and low which depends on the cooling water and air in the packing of the extent of the full access. And our Company Cooling Tower fills have the advantage as bellows:
1. Anti-aging
2.Excellent Performance
3.Long Service life
4.Good heat exchange perfomance, and excellent Cooling efficiency
5.Easy to install

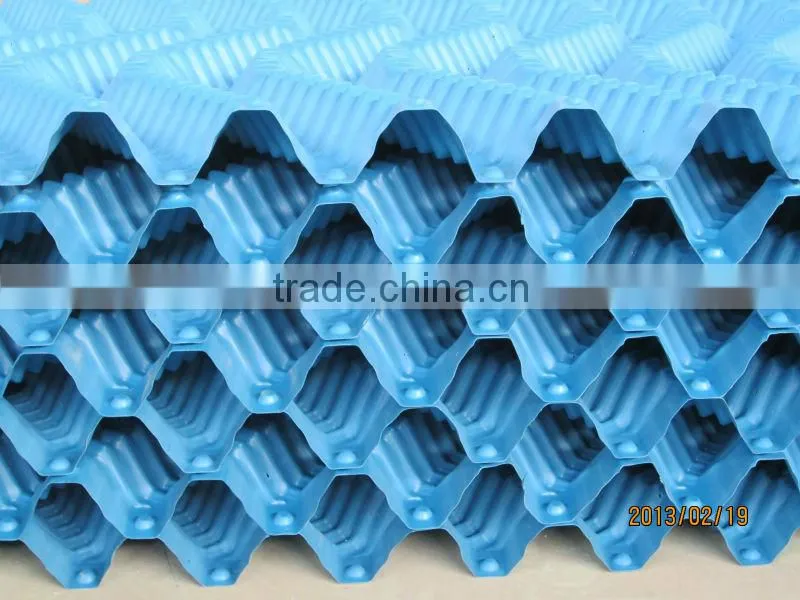

PVC Cooling Tower Filling Media:
1. Marly PVC fills, Size: 1220*300mm, 1220*600mm
2.Use Temperature: 50-68C
3.Absorption rate: < 0.015%
4.Drift water loss rate:<0.001%
PVC Cooling Tower filter Filling Technical Data:
SURFACE AREA |
SHEET SPACING |
FLUTE ANGLE |
SHEETS PER FT. |
MEDIA PACK SIZES: |
||
Minimum |
Maximum |
Standard |
||||
48 ft2/ft3 |
19 mm |
30° |
16 |
D: 12 in |
D: 24 in |
D: 12 in (305 mm) or |
fill pack for cooling tower media and type:
|
Length(mm) |
Height(mm) |
Film thickness(mm) |
|||
Size |
Tolerance |
Size |
Tolerance |
Size |
Tolerance |
|
"S" Wave |
1000 |
±10 |
500 250 |
±5 |
0.4 |
±0.05 |
2000 |
±10 |
500 250 |
±5 |
0.4 |
±0.05 |
|
Double Inclined |
1000 |
±10 |
500 250 |
±5 |
0.4 |
±0.05 |
Inclined Wave |
1000 |
±10 |
500 |
±5 |
0.4 |
±0.05 |
cooling tower filler heating Power and Resistance Character:
|
Fill Height |
Cooling No. (Volume Scattered Coefficient: Ka) |
Resistance Equotion:P/p1=9.81*A*Vcpm A.M expression |
"S" Wave |
1m |
=1.83y0.65 |
A=-0.0019q2+0.0685q+0.06543 |
Ka=4746g0.56q0.36 |
M=-0.0028q2-0.0170q+1.9480 |
||
Double Inclined |
1m |
=1.92y0.68 |
A=-0.0006q2+0.0306q+0.06376 |
Ka=4342g0.69q0.36 |
M=-0.0002q2-0.0026q+1.9029 |
||
Inclined Wave |
1m |
=1.85y0.64 |
A=-0.0001q2+0.189q+0.6374 |
Ka=4296g0.63q0.38 |
M=-0.0006q2-0.0122q+2.0178 |
Remark: P-Fill Resistance,Pa P1=Air density,kg/m3 q---Spray waterdensity,t/(m2*h) Vcp-Spray Fill Average Wind Speed m/s
g--Ventilation density kg/(m2*h g-gas water radio

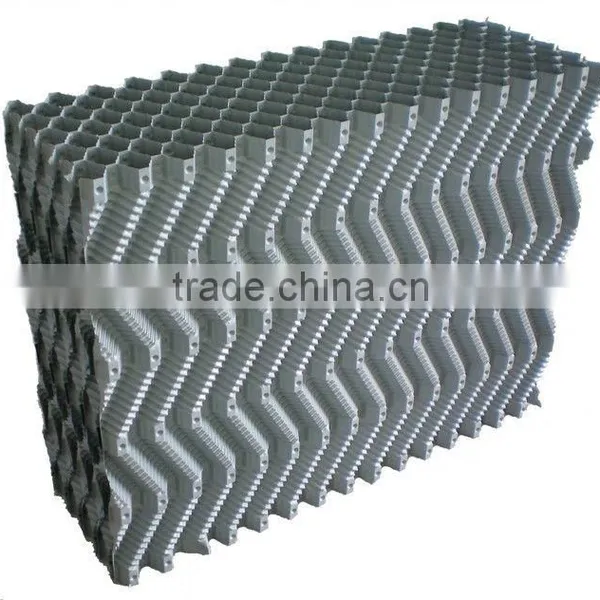

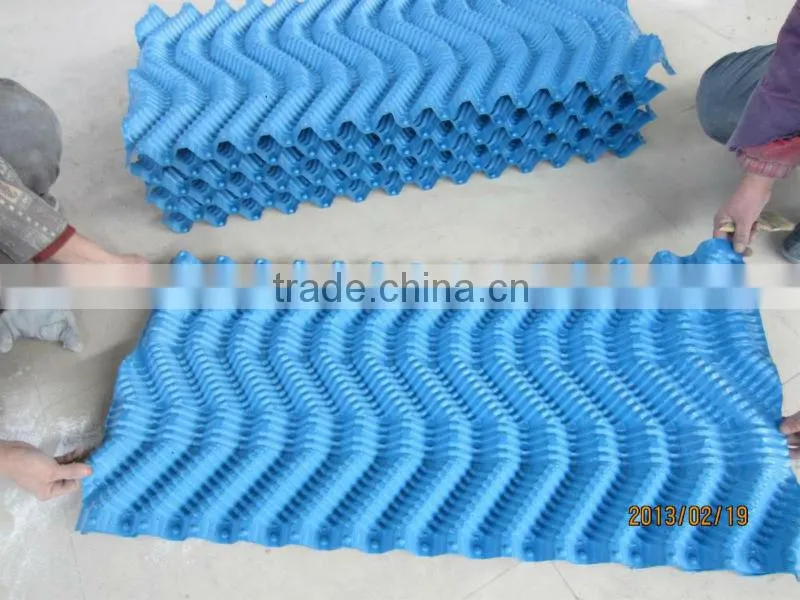

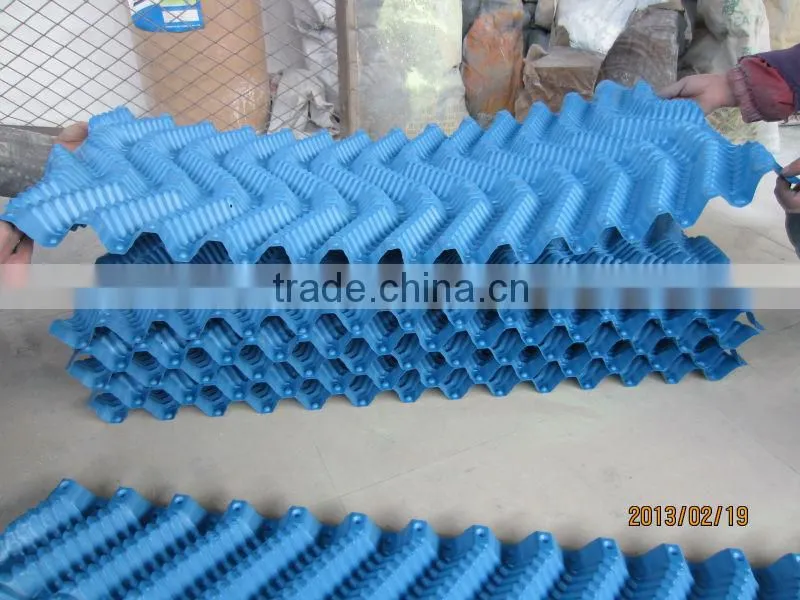

PVC Fill for Cooling Tower:
This kind of cooling tower fill with the advanced technical, long lifetime, low resistance, light weight. During the service, the fill can increase the water flow process. It is widely used in Square cooling tower.
1) Application: put into the square cooling tower.
2) Characters:
acidproof, alkali-resisting, anticorrosion for the organic solvent
good performance of inflaming retarding
oxygen index≥31
3) Description:
Normal Size:500mmX1000mm
OR
Width: Meet your demand
Length: Meet your requirement.
Thickness: Meet your demand
4) Working temperature:
PVC: -20°C~70°C
