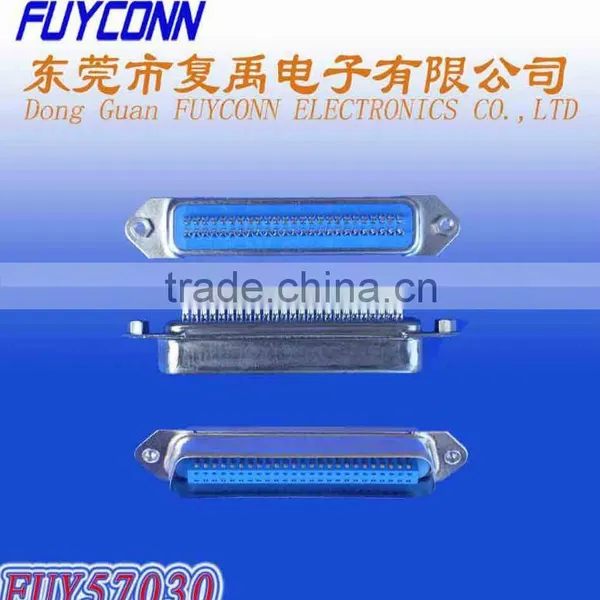

Help CenterRibbon Centronics Connector Solder Cup Contacts Easy Type Male Plug Header With Hex Head Nuts
Related Products
-
Male DDK Ribbon Centronics Solder Cup Contact Hard Connection Header ConnectorUS$ 0.8 - 1.5MOQ: 1000 Pieces -
Centronics Connector Solder Cup Contact Male Plug Type Header With PBT Insulator Certified ULUS$ 0.8 - 1.5MOQ: 1000 Pieces
-
Centronics Connector Solder Cup Contacts Easy and Soft Connection DDK Male Plug Pin Header Connector With MD Type ShellUS$ 0.8 - 1.5MOQ: 1000 Pieces
-
Centronics 57 Series Ribbon DDK Solder Cup Male Plug Type Brass Contact Easy Type Connector Certified ULUS$ 0.8 - 1.5MOQ: 1000 Pieces
-
Centronics 90 Degree Male Plug 50 Pin DDK Champ Solder Classic Type Hard Connection Header ConnectorUS$ 1.5 - 3MOQ: 1000 Pieces
Specifications
Item No.: FUY570301,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
1) Product features
1. Product Type: Connector
2. Product Line:CENTRONIC
3. Connector Style: Female
4. Certerline :2.16mm(0.85 in)
5. Number of Position:14,24, 36,50 pin
6. Contact Material: Copper Alloy
7. Contact Plating: Gold (1U", 3U", 5U" ,10U", 15U", 30U" )
8. Comb Material:Thermoplastic
9. UL Flammability Rating: UL-94-V0
10. Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
11. Orientation:Standard
12. Special Function:(Pan Holes)
A: Screw Lock B:Rivet Insert
C: 4.8mm Hex Screw Lock
D: IEEE488 Hex Screw Lock
2) Electrical Specifications
1. Current Rating: 5Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN.(at 500V DC)
4. Operation Temperature: -55°C to +105°C

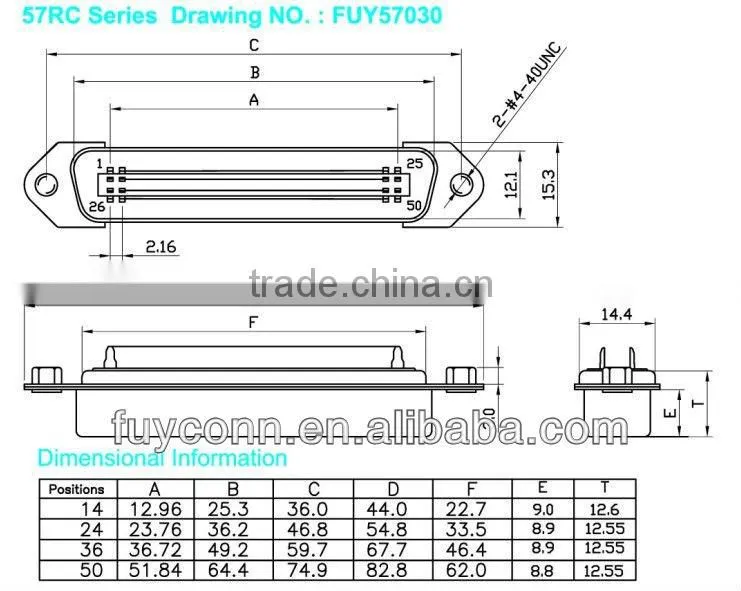

3) Technical Parameters
