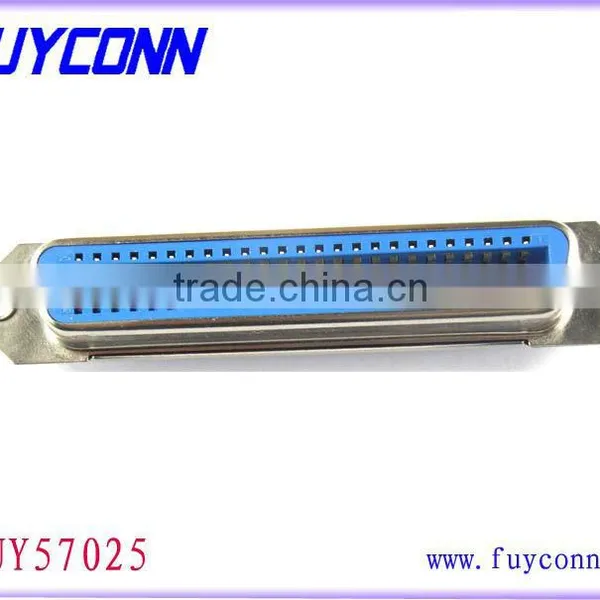

Help Center50P 25 Pair Female Socket Connector 2.16mm Solder Type Header With Hex Head Nuts
Related Products
-
50 Pin Female Header 2.16mm Chmap DDK Connector Solder Pin Type With Bail ClipUS$ 1 - 2MOQ: 1000 Pieces -
50 Pin Female Socket Champ Ribbon Solder Type Connector 2.16 PitchUS$ 1 - 2MOQ: 1000 Pieces
-
2.16mm Pitch Champ DDK Male Plug 25 Pairs 50 Pin Solder Cup Connector With Right Angle Cable ExitUS$ 1.5 - 3MOQ: 1000 Pieces
-
DDK Champ Male Plug 50 Solder Cup Pin Hard Connection Header Connector Wih Side Cable Exit Plastic CoverUS$ 1.5 - 3MOQ: 1000 Pieces
-
Ribbon 50 Pin Champ 25 Pair Solder Cup Ribbon Male Plug Pin Header Hex Head Nuts Connector Certificated ULUS$ 0.8 - 1.5MOQ: 1000 Pieces
Specifications
Item No.: FUY57025-50P1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
1) Product features
1. Product Type: Connector
2. Product Line:CENTRONIC
3. Connector Style: Female
4. Certerline :2.16mm(0.85 in)
5. Number of Position:14,24, 36,50 pin
6. Contact Material: Copper Alloy
7. Contact Plating: Gold (A:5u" ,B:10u",C:15u"A:30u'')
8. Comb Material:Thermoplastic
9. UL Flammability Rating: UL-94-V0
10. Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
11. Orientation:Standard
12. Special Function:(Pan Holes)
A: Screw Lock B:Rivet Insert
C: 4.8mm Hex Screw Lock
D: IEEE488 Hex Screw Lock
2) Electrical Specifications
1. Current Rating: 5Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN.(at 500V DC)
4. Operation Temperature: -55°C to +105°C

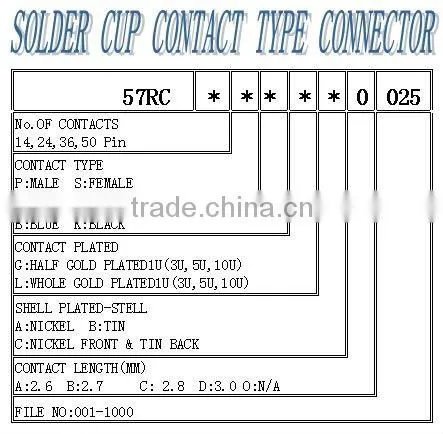

3) Order Information
Remark : 1. This is general information for each of order.
2. Plz reference to filling out this form before inquiry.
3. We will feedback the latest information to you on time.
4. We are look forwar to long term business cooperation with you.
4)Solder Cup Type Connector

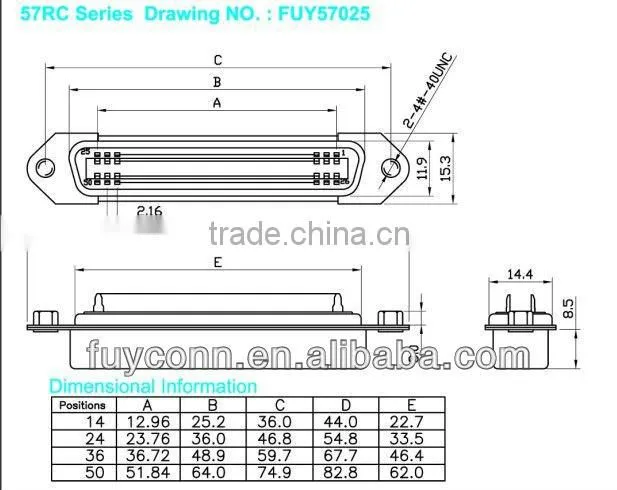

5) Technical Parameters
