Filter Dryer for Carrier

Filter Dryer for Carrier thumbnail-1
Filter Dryer for Carrier thumbnail-2
Filter Dryer for Carrier thumbnail-3
Filter Dryer for Carrier thumbnail-4
Filter Dryer for Carrier photo-1
Filter Dryer for Carrier photo-2
Filter Dryer for Carrier photo-3
Filter Dryer for Carrier photo-4
US$ 3 - 20 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
STF
Model Number:
Filter Dryer for Carrier
Contact Supplier Request Quote Chat Now
Shanghai Thermostat Factory Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name STF
Model Number Filter Dryer for Carrier
Type Other, Filter Drier, Filter Dryer for Carrier
Application Refrigeration Parts
Certification CE



Product Description

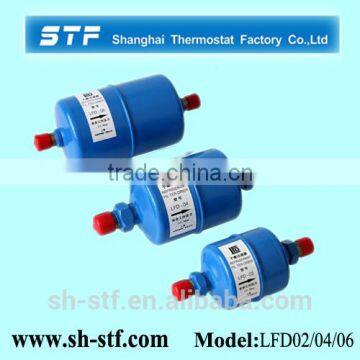

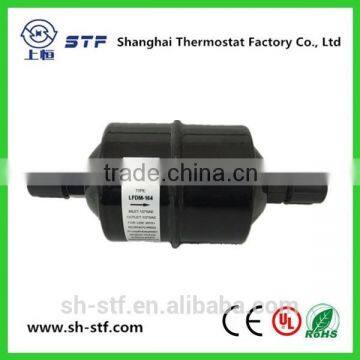

LFD Filter Dryer for Carrier

 Filter Dryer for CarrierFilter Dryer for Carrier

General Characteristics

  • After take off the seal cap of input and output ,it should be installed in right now .It can't be in the air for a long time to prevent the desiccant absorbing the moisture.
  • The flow madium direction must be the same as the mark shown on the part.
  • Can be installed in any position.
  • The desiccants must be compatible with the refrigerants.

  Note: Connect type is as per your requirement(SAE OR ODF)



  Specification



Type Connections(in) Liquid Flow Capacity(KW) Dimensions(mm) Max.Operating Pressure (bar)
  ODF SAE R134a R404A/R507 R22/R407C/R410A A D L

LFD-032-SAE    1/4 7 5 7 66 43 113 46
LFD-032-ODF  1/4   7 5 7 110 46
LFD-033-SAE    3/8 17 13 19 123 46
LFD-033-ODF  3/8   17 13 19 114 46
LFD-052-SAE    1/4 7 5 8 75 54 122 46
LFD-052-ODF  1/4   7 5 8 119 46
LFD-053-SAE    3/8 18 14 19 132 46
LFD-053-ODF  3/8   18 14 19 123 46
LFD-082-SAE    1/4 7 5 8 101 148 46
LFD-082-ODF  1/4   7 5 8 145 46
LFD-083-SAE    3/8 19 14 21 158 46
LFD-083-ODF  3/8   19 14 21 149 46
LFD-084-SAE    1/2 26 20 29 166 46
LFD-084-ODF  1/2   26 20 29 151 46
LFD-085-SAE    5/8 42 31 46 174 46
LFD-085-ODF  5/8   42 31 46 149 46
LFD-162-SAE    1/4 7 5 8     157 46
LFD-162-ODF  1/4   7 5 8     154 46
LFD-163-SAE    3/8 22 16 24     167 46
LFD-163S  3/8   22 16 24     158 46
LFD-164-SAE    1/2 30 22 33     175 46
LFD-164S  1/2   30 22 33     160 46
LFD-165-SAE    5/8 43 30 47 110   183 46
LFD-165-ODF  5/8   43 30 47     158 46
LFD-166-SAE    3/4 44 31 48     189 35
LFD-166-ODF  3/4   44 31 48     164 35
LFD-167-ODF  7/8   44 31 48     170 35
LFD-303-SAE    3/8 21 15 23     243 46
LFD-303-ODF  3/8   21 15 23     234 46
LFD-304-SAE    1/2 31 22 34   76 251 46
LFD-304-ODF  1/2   31 22 34     236 46
LFD-305-SAE    5/8 45 33 49     259 46
LFD-305-ODF  5/8   45 33 49     234 46
LFD-306-SAE    3/4 62 45 68 186   265 35
LFD-306-ODF  3/4   62 45 68     240 35
LFD-307-ODF  7/8   62 45 68     246 35
LFD-309-ODF 1 1/8   62 45 68     246 30
LFD-413-SAE    3/8 25 18 17     244 46
LFD-414-SAE    1/2 32 23 35     252 46
LFD-414-ODF  1/2   32 23 35     237 46
LFD-415-SAE    5/8 53 37 58     260 46
LFD-415-ODF  5/8   53 37 58 187 89 235 46
LFD-417-ODF  7/8   91 65 99     247 35
LFD-419-ODF 1 1/8   91 65 99     247 30







Advantages

Filter Dryer for Carrier

Company Information

Filter Dryer for Carrier
Filter Dryer for Carrier

Production Flow

Filter Dryer for CarrierFilter Dryer for Carrier

Certifications

Filter Dryer for CarrierFilter Dryer for Carrier



Packaging & Shipping

 Filter Dryer for Carrier

Packaging Detail:

Filter Dryer for Carrier closed Exportcartons:31*25*21cm then into plastic pallet

Delivery Detail:

15days after receiving deposit





Our Services



1)Our advantage:



 We are the manufacturer with more than 60 years experience in valves. Best price,quality and service, Also we can control the production status.



Shanghai Thermostat team with strong ability in designing and after sell service. Cooperation with ALCO,Carrier, Johnson Controller has improved our quality to a new level.

2)Terms of payment: T/T, L/C, Western union.

3)Shipment: average 20-25days after receiving deposit.

4)Delivery:  Shanghai ,by sea or air.

5)Gurantee: One year since delivery.

6)Inspection: 100% testing for all the valves.

7) All kinds of CERTIFICATE OF ORIGIN.



Welcome to choose Shanghai Thermostat , we are always ready!

FAQ



1.Q: What is your main market?

   A: Our main market is north America, especially USA.



2.Q: Are you products standard?

   A: Our model is standard, if you have specific demand, pls tell us.



3.Q: Do you have interest to do our own design items?

   A: Absolutely! We have big interest.
