YK Pressure Control Switch

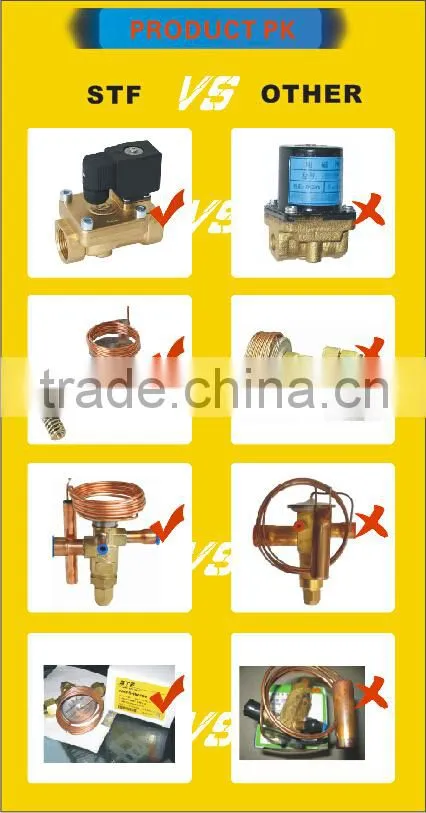

Our Products VS Others:
Characteristics:
1.YK is used for pressure control or pressure protection. When the system
reaches the set point, the switch turns on/off automatically.
2.Optional automatic reset, high pressure manual reset as well as low pressure manual reset.
3.Adjustable pressure and pressure difference setup with scale instrument.
4.Suitable for HFC, HCFC, compressed air , water and oil.
5.M12×1.25 connection.
6.Temperature of medium: - 20℃~+120℃; Ambient temperature: - 20℃~+70℃.
Electrical data:
|
Supply voltage(V) Operating current (A) |
Power COS |
125V AC |
250V AC |
|
Non-induction current |
1 |
15 |
15 |
|
Induction current |
Constant |
0.75 |
3.5 |
2.5 |
Transient |
0.75 |
21 |
15 |
|
Technical data:
1)Single Pressure:
Model |
Pressure setting range MPa |
Differential setting |
Setting point |
|
Min.–Max. |
Type |
|||
YK6 |
-0.065 – 0.6 |
0.06–0.4 |
Auto reset |
0.2 – 0.3 |
YK10 |
0.1 – 1 |
0.1–0.3 |
0.4 – 0.6 |
|
YK20 |
0.5 –2 |
0.2–0.5 |
1.2 – 1.5 |
|
YK30 |
0.5 – 3 |
0.2–0.7 |
2.0 – 2.5 |
|
YK6S |
-0.065 – 0.6 |
Act & self lock when pressure decreasing |
Manual reset |
0.2 |
YK10S |
0.1 – 1 |
0.5 |
||
YK20S |
0.5 – 2 |
1.4 |
||
YK30S |
0.5 – 3 |
2.0 |
||
YK130S |
0.8 - 3 |
Act & self lock when pressure increasing |
Manual reset |
2 |
|
YK130
|
0.8 - 3 |
0.4 |
Fixed |
1.6 – 2.0 |
2)Dual Pressure:
Model |
Pressure setting range |
Differential setting |
Setting point |
|
Min.–Max. |
Type |
|||
YK306 |
Low pressure -0.065 – 0.6 |
0.06 – 0.4 |
Auto |
0.2–0.3 |
|
High pressure 0.8 – 3 |
0.4 |
Fixed |
1.6– 2 |
|
YK306S |
Low pressure -0.065 – 0.6 |
0.06 – 0.4 |
Auto |
0.2–0.3 |
|
High pressure 0.8– 3 |
Act & self lock when pressure increasing |
Manual |
2 |
|
Packaging and Shipping:
Packaging Detail: normally Export cartons:31*25*21cm then into plastic pallet
Delivery Detail: 15 days after receiving deposit
Our Services:
1)our advantage:
we are the manufacturer with more than 60 years experience in valves. Best price,quality and service, Also we can control the production status.
Shanghai Thermostat team with strong ability in designing and after sell service. Cooperation with Carrier has improved our quality to a new level.
2)Terms of payment: T/T, L/C, Western union.
3)Shipment: average 20-25days after receiving deposit.
4)Delivery: Shanghai ,by sea or air.
5)Gurantee: One year since delivery.
6)Inspection: 100% testing for all the valves.
7) All kinds of CERTIFICATE OF ORIGIN.
Welcome to choose Shanghai Thermostat , We are always ready!
Company Informaion:

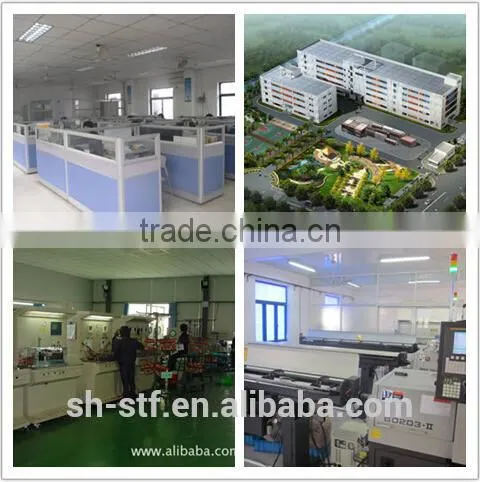

1.Company and Stuff

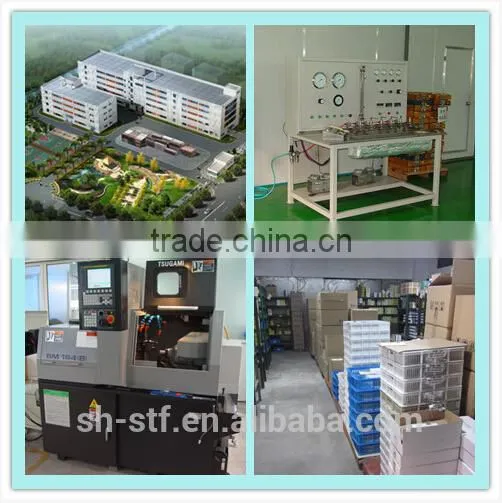

2.Production Line
3.Certificates
FAQ:
1.Q: What is your main market?
A: Our main market is north America, especially USA.
2.Q: Are you products standard?
A: Our model is standard, if you have specific demand, pls tell us.
3.Q: Do you have interest to do our own design items?
A: Absolutely! We have big interest.
