Specifications
solenoid valve 24V1.Certificate: CE CQC and UL
2.Max working pressure:35Bar
3.Temperature of medium: -25-105
4.110V 24V 36V

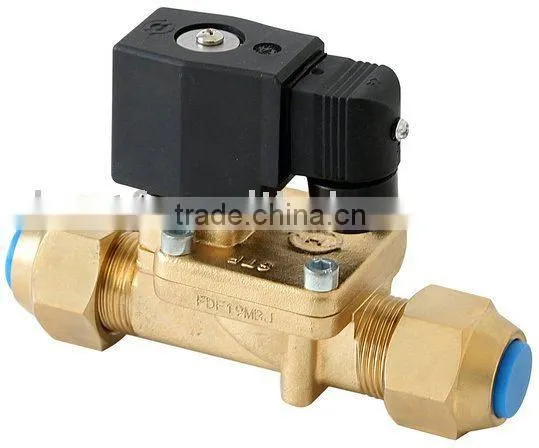

Brass solenoid valve 24V for water oil gas HCFC HFC
Characteristics
l 1. Complete range of solenoid valves for refrigeration, freezing and air conditioning plant.
l 2. Supplied both normally closed (NC) and normally open (NO) with de-energized coils.
l 3. Wide choices of coils for a.c. and d.c..
l 4. Suitable for all fluorinated refrigerants.
l 5. Opening Pressure Diff.:
Pilot type
AC0.05-21bar
DC0.05-17bar
l 6. Max working pressure:35bar.
l 7. Temperature of medium -25°C-105°C.
l 8. DF is also available with flange connections.
Operating principle
FDF-BFDF-Z series solenoid valve is the direct-acting type. The pull of the solenoid coil opens the valve port directly by lifting the seat disc off the valve seat.While de-energized in the coil,plug stem will drop and close the valve port because of spring force and its weight.
FDF-M series solenoid valve is pilot type valve.
While energized in coil,the coil emerges magnetic field and pick up plug stem,open the small orifice.Then the pressure in the upside of valve reduced, the pressure difference between both side of diaphragm happen,cause the diaphragm lift to open the main orifice. While de-energized in the coil,plug stem will drop and close the small orifice because of spring force and its weight.The flow medium enter into upside of diaphragm through throttle hole,then pressure in both side of diaphragm,balances,then the diaphragm drop and close the main orifice.
