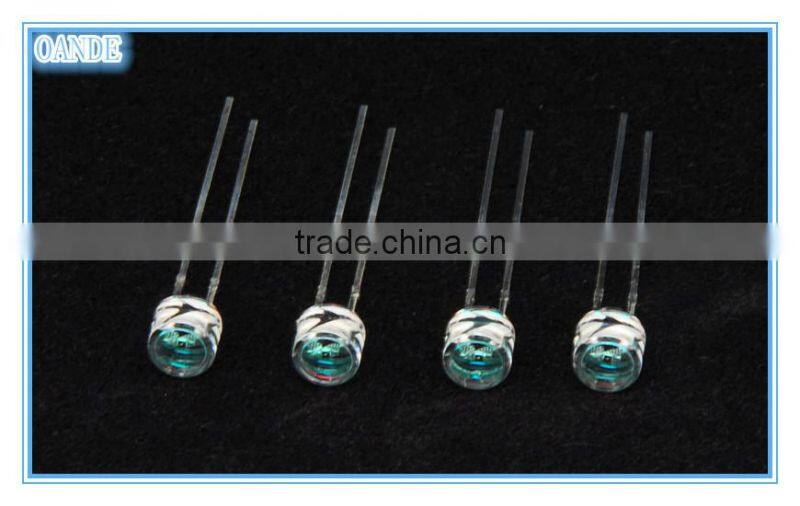

Help CenterPhotosensitive Sensor
Related Products
-
5mm OE504HP-F Infrared Sensor for Street LightsUS$ 0.016 - 0.29MOQ: 1000 Pieces -
Automatic Light Sensitive Tube 5mm OE504HP-FUS$ 0.016 - 0.29MOQ: 1000 Pieces
-
Photosensitive Sensor for Led Power BankNegotiableMOQ: 1000 Pieces
-
Best Choice Mini Pir Sensor D203s , Most Widely Model From OANDENegotiableMOQ: 1000 Pieces
-
PIR Sensor KP500B Use for CCTV Monitoring, Automation Equipment and Alarm ApplicationNegotiableMOQ: 1000 Pieces
Specifications
1.Patent products2.Have RoHS
3.Compliance with EU RoHS directive, without lead and cadmium
In order to have good cooperation ,we will send free sample to client for testing first!
For photosensitive sensors our factory,we have many series,the best price and the best service .Quality also is excellent !
OUTLINE SIZ:
FEATURES:
1.Dark current, low-light response, high sensitivity, the current increased linearly with changes in light intensity;
2.Built-in two-sensitive element, automatic attenuation of near-infrared spectral response function curve close to the human eye;
3.Built-in visible and near infrared through the filter cut-off level of optical integration package to enhance the optical filtering effect (according to customer request)
4.Built-in micro-signal CMOS amplifier, precision voltage source and the correction circuit, output current, operating voltage range, temperature stability;
5.Compliance with EU RoHS directive, without lead and cadmium;
MAJOR APPLICATONS:
1.Backlight control: TV, computer monitors, LCD backlight, mobile phones, digital cameras, MP4, PDA, GPS;
2.Green alternative: an alternative to traditional photosensitive resistor, photodiode, phototransistor;
3.Instruments: measuring light intensity of the instruments and industrial control;
4.Energy Control: infrared camera, outdoor advertising, induction lighting devices, toys;
Max Rtaings (AT=25°C)
|
REVERSE VOLTAGE |
OPERATING TEMPERATUER |
STORAGE TEMPERATURE |
SOLDERING TEMPERTURE AND TIME |
5 V |
-40°C-- +85°C |
-40°C-- +100°C |
260°C 5S |
PARAMENTER (AT=25°C)
RARAMETER |
SYMBOL |
CONDITION |
MIN |
TYP |
MAX |
UNIT |
Dark Current |
Iceo |
5 V |
|
0.004 |
0.09 |
uA |
Withstand voltage |
Bvceo |
20 mA |
|
54 |
|
V |
Respones time |
Tr |
|
|
2 |
|
μS |
Respones time |
Tf |
|
|
2 |
|
μS |
Typical incident wavelength |
λp |
|
|
560 |
|
nm |
photocurrent |
IL |
5V,A light,100Lux |
|
16 |
|
uA |
Half-value angle |
θ 1/2 |
|
|
±50 |
|
DEG |
Junction between the voltage |
VSAT |
20mA |
0.03 |
0.041 |
0.35 |
V |
OANDE - Your Reliable Partner for optical&electronic
We offer high quality photosensitive resistance,metal photosensitive resistance,photosensitive sensor,fresnel lens and optical coating lens......
Our company continuosly endevaours to give best service and at par quality.
-------------------------------------------------------------------------------------------------------------
