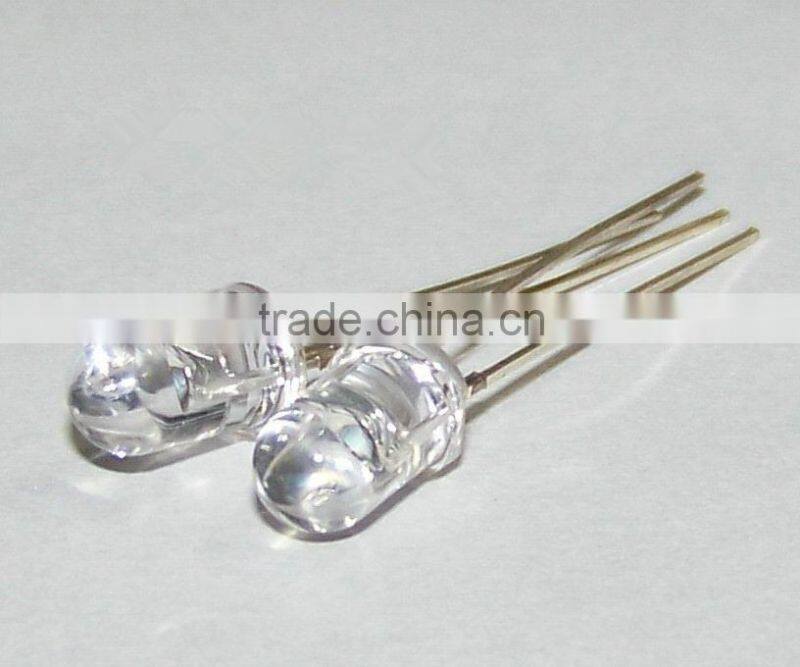

Help CenterRound Head OE504HP-F Light Sensor With Filter
Related Products
-
Plat Head Environment Friendly Light Dependent Resistor SensorUS$ 0.016 - 0.29MOQ: 1000 Pieces -
OE504HP-F Light Sensor 3mm Infrared Sensor for Street LightsUS$ 0.016 - 0.29MOQ: 1000 Pieces
-
OE504HP-R Light Sensor for Home AutomationUS$ 0.046 - 0.12MOQ: 1000 Pieces
-
Personable Usage Motion Sensor WirelessUS$ 0.1 - 0.5MOQ: 1000 Pieces
-
Indoor Honeywell Alarm Use Pir Motion SensorsUS$ 0.1 - 0.5MOQ: 1000 Pieces
In order to have good cooperation ,we will send free sample to client for testing first!
For photosensitive sensors in our factory,we have many series,the best price and the best service .Quality is also excellent !
OUTLINE SIZ:
FEATURES:
1.Dark current, low-light response, high sensitivity, the current increased linearly with changes in light intensity;

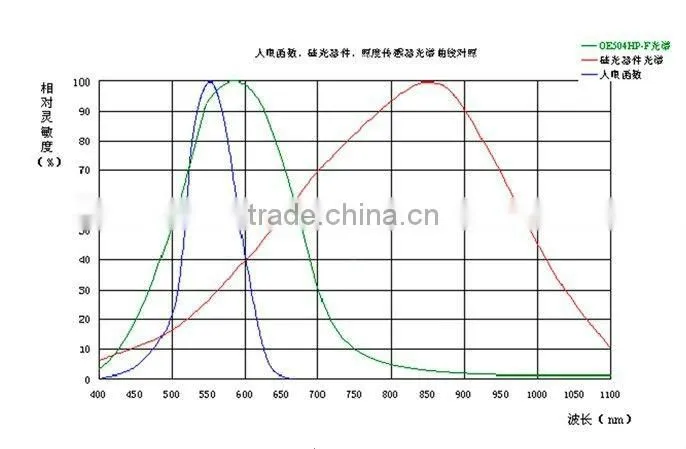

2.Built-in two-sensitive element, automatic attenuation of near-infrared spectral response function curve close to the human eye;
3.Built-in visible and near infrared through the filter cut-off level of optical integration package to enhance the optical filtering effect (according to customer request)
4.Built-in micro-signal CMOS amplifier, precision voltage source and the correction circuit, output current, operating voltage range, temperature stability;
5.Compliance with EU RoHS directive, without lead and cadmium;
MAJOR APPLICATONS:
1.Backlight control: TV, computer monitors, LCD backlight, mobile phones, digital cameras, MP4, PDA, GPS;
2.Green alternative: an alternative to traditional photosensitive resistor, photodiode, phototransistor;
3.Instruments: measuring light intensity of the instruments and industrial control;
4.Energy Control: infrared camera, outdoor advertising, induction lighting devices, toys;
Max Rtaings (AT=25°C)
|
REVERSE VOLTAGE |
OPERATING TEMPERATUER |
STORAGE TEMPERATURE |
SOLDERING TEMPERTURE AND TIME |
5 V |
-40°C-- +85°C |
-40°C-- +100°C |
260°C 5S |
PARAMENTER (AT=25°C)
RARAMETER |
SYMBOL |
CONDITION |
MIN |
TYP |
MAX |
UNIT |
Dark Current |
Iceo |
5 V |
|
0.004 |
0.09 |
uA |
Withstand voltage |
Bvceo |
20 mA |
|
54 |
|
V |
Respones time |
Tr |
|
|
2 |
|
μS |
Respones time |
Tf |
|
|
2 |
|
μS |
Typical incident wavelength |
λp |
|
|
560 |
|
nm |
photocurrent |
IL |
5V,A light,100Lux |
|
16 |
|
uA |
Half-value angle |
θ 1/2 |
|
|
±50 |
|
DEG |
Junction between the voltage |
VSAT |
20mA |
0.03 |
0.041 |
0.35 |
V |
OANDE - Your Reliable Partner for optical&electronic
We offer high quality photosensitive resistance,metal photosensitive resistance,photosensitive sensor,fresnel lens and optical coating lens......
Our company continuosly endevaours to give best service and at par quality.
-------------------------------------------------------------------------------------------------------------
