FRP stepped type Cable tray
FRP Cable tray Brief Introduction
FRPcable trays are available in polyester resin and vinyl ester resin. Also referred to as FRP Cable Tray or Fiberglass Reinforced Cable Tray, Non Metallic Cable Tray, or GRP Cable Tray or Glass Reinforced Cable Tray. Fiber Glass cable Trays are ideal for corrosive environments as well as applications that require non magnetic cable tray and non conductive cable trays. Our Fiberglass cable trays are tested in accordance with NEMA FG1 and can be CSA classified. Fiberglass tray systems meet ASTM E84, Class 1 Flame Rating and ASTM D635 Self Extinguishing requirements. A surface veil is applied during the pultrusion process to create a resin rich surface that is ultraviolet resistant.
Fiberglass trays can be very strong and meet loading over 100 pounds per linear foot on a 20 foot span.
FRP Cable tray Types
♣ Channel type cable tray
♣ Ladder type cable tray
Remark: Our cable tray all have matched accessories: elbows, three-direce-links and etc.
Material: FRP/ GRP: Fiber Reinforced Plastics
Surface Treatment: Mat coated/ UV resistant tissue coated
FRP Cable tray uses
• Support electrical cable in highly corrosive environments
• Designed for lighter loads
• Individual wiring and pneumatic tubing
• Retrofitting rusting applications
• Low-voltage or communications cables
• Fiber-optic cables
• Hydraulic or pneumatic tubing
FRP Cable tray Specification Sheet
Channel type

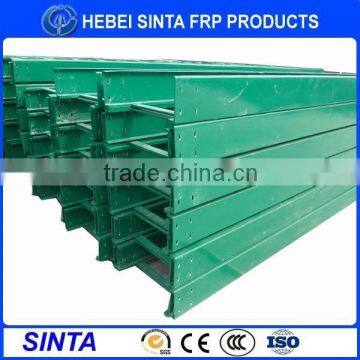

FRP Cable tray pictures

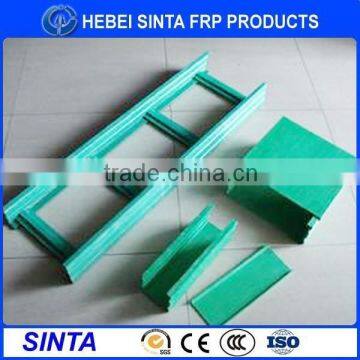

The cable tray elbows, three-direct-links, Bends, Risers, T Junctions, Crosses & Reducers
and other accessories
FRP Cable tray specification
Model |
Side Rail Height (mm) |
Loading Depth (mm) |
Flange Width (mm) |
Channel Thickness (mm) |
Tray Weight (kg/m) |
ST-01A |
75 |
46 |
25 |
4.8 |
2.93 |
ST-02A |
100 |
73 |
35 |
6.4 |
3.81 |
ST-03A |
100 |
70 |
28 |
6.4 |
4.55 |
ST-04A |
150 |
122 |
41 |
4.0 |
4.37 |
ST-05A |
150 |
122 |
41 |
4.8 |
4.37 |
ST-06A |
150 |
121 |
41 |
6.4 |
6.66 |
ST-07A |
150 |
119 |
41 |
8.0 |
7.34 |
ST-08A |
150 |
119 |
51 |
8.0 |
7.13 |
ST-09A |
200 |
170 |
44 |
8.0 |
9.60 |
ST-010A |
250 |
219 |
70 |
9.5 |
13.98 |
Remark: |
Other sizes are also can be customed by customer. |
||||

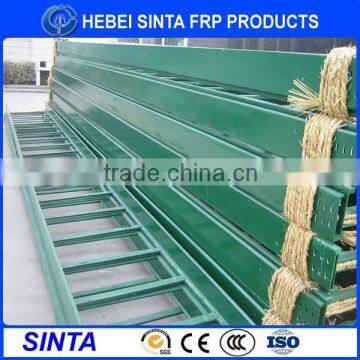

FRP Cable tray Pictures
FRP Cable tray Benefits
Economical Cable Support
Easy Installation
Fully Enclosed Cable Tray System
Smooth, Solid Bottom and Cover
Hides Cables from View
Quick Shipment
FRP Cable tray Features
Solid bottom, perforated (ventilated), or slotted construction
Corrosion resistant
High strength-to-weight ratio
High durability
Lightweight
Fire retardant
Ease of installation
Hebei Sinta FRP Products Trading Co., Ltd is specializing in FRP products. Our products mainly include fiberglass rod, bars, sheet, panels , gratings, cable tray and so on.
Our team of foreign trade sector
We offer a complete line of fittings, accessories and support material in fiberglass material such as covers, strut, strut fittings, clamps, wall brackets, etc.
Ventilated or Solid bottom fiberglass channel is also available.
♣Price terms:EXW/FOB/CNF/CIF
♣Payment terms:30% by T/T in advanced, balance by T/T before shipment.
♣Package:Export standard package suit for sea transport
♣Delivery time: 10-20days according to order quantity
♣Certification:ISO CE
Welcome for your enquiry, we'll reply you within 24 hours.
