personal customized fashion dress home textile digital printing machine
Shenzhen yueda digital Textile printing machine
6 years manufacture experience
Specifications
1. 1800mm
2. 4 colors / dual 4 colors
3. Over 120 sq.m/h
Cost
1. inks:10-12ml per sq.m
0.4 usd/sq.m for pigment inks
0.2 usd/sq.m for reactive inks
2. electrity: 25 KW/H
3. daily output: 2000 sq.m
Advantages
1.Prints directly on fabric without heating transfer process.
2.It can work continuously for 24 hours without corrugated.
3.Suitable for individual and diversified producing.
Media Types
Cotton, Viscose, Polyester, Wool, Silk, Nylon and so on.
1. 8 Starfire printheads
2. Max Speed: 120 sq.m/h by 3 pass
3. THK linear guideway ensures higher printing precision.

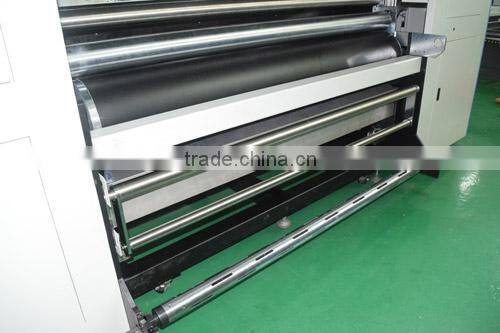

4. Pressing roller similar to Mi**ki’s printer
5. Print Head 30mm Adjustable: According to different media
Model |
YD1800-SE |
|
Print Head |
StarFire1024(with internal heating,inner loop fuction) |
|
Output speed |
120m/h 3 pass |
|
Print width |
1.8m,2.6m,3.2m optional |
|
Ink type |
Reactive, acid, disperse, pigment |
|
Fabric type |
Weave or knit cotton, flax, silk, polyester, cashmere, towel etc. |
|
Height adjustable |
0-30mm adjustable |
|
Ink Color |
Cyan, magenta, yellow, black, light cyan, light magenta, sapphire blue, orange, red, gray (ten colors optional) |
|
Print resolution |
400dpi |
|
RIP software |
Professional textile printing RIP Software |
|
|
Speed
|
High-speed |
3pass-120sqm/h |
Normal speed |
6pass-100sqm/h |
|
High resolution speed |
8pass-60sqm/h |
|
Injection frequency |
40KHz |
|
Image Type |
JPEG/TIFF/BMP file format, RGB/ CMYK color model |
|
Power |
25KW |
|
Power requirement |
380VAC ± 5%, three-phase five-wire, 50HZ ± 2% |
|
Working environment |
Temperature 20-30 ℃,relative humidity 50-80% |
|
Air Compressed |
Air flow ≥0.6m³/min, pressure ≥8kg |
|
Printer size(L/W/H) |
4.3m*1.9m*1.9m |
|
Printer weight |
2500kg |
|

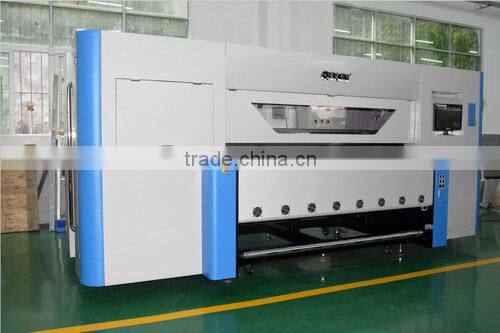

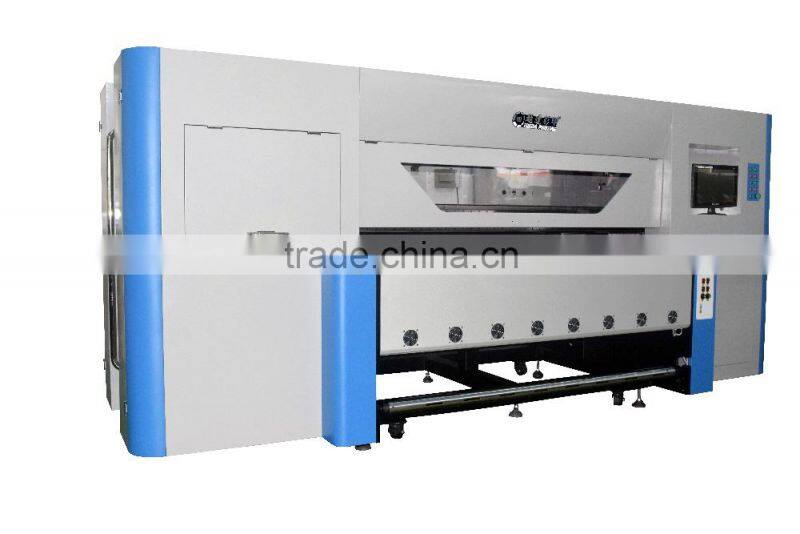

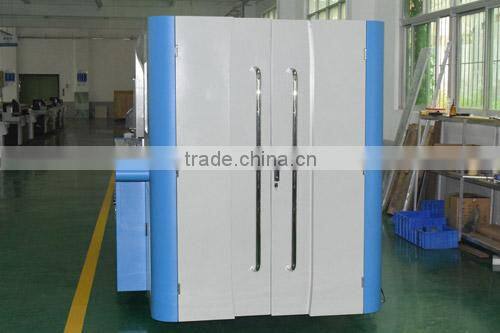

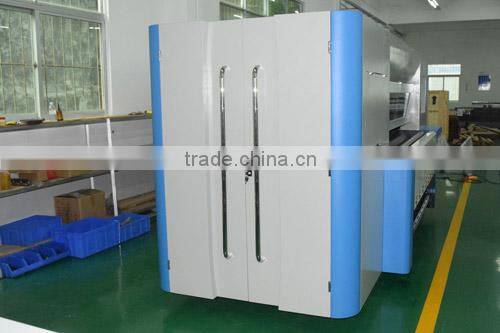

fabric digital printer
Our company
fabric digital printer in the EXHIBITION
Our service
1. One year warranty and lifetime maintance.
2. English manuals for easier installation and operation.
3. Engineers available to service machinery oversea cities.
4. The technical person go to your local place to help you.
RFQ
1.How is your after-sale service ?How can we solve any problems?
Oversea installation and technical training service is provided.
24hours online support and parts express service available.
2.How much does the ink cost per square meter?
The cost is about 0.3-0.4USD.
3.Does the fabrics need to special deal ?
Pigment ink: no pre treatment or after treatment.
Reactive ink: need pre coating, after steaming, washing.
Subliamtion ink: need pre-coating, after heating.
