Help CenterSO-SL Mini Galvanometer Scanner/ Laser Galvo Scanner
Related Products
-
Mini Scan Head for Beauty MachineNegotiableMOQ: 5 Sets -
SO-SM Galvo Scan/ Scan Head for Your Beauty MachineNegotiableMOQ: 1 Piece
-
SO Mini Series Galvo Scanner for Beauty MachineNegotiableMOQ: 1 Piece
-
Mini Galvanometer Scanner for Fractional MachineNegotiableMOQ: 5 Sets
-
SO-SM Galvanometer Scanner/ Scan Head/Galvo HeadNegotiableMOQ: 1 Piece
Specifications
1.High speed and high stable2.High precision
3.It is our newest design and adopt the latest technology.
SO-SL Galvanometer scanner/Laser Galvo Scanner
Advantage of the produce:
1.high speed and high stable
2.Long work time
3.High precision
Specification for motor
Working Temperature |
25°C ± 20°C |
Linearity |
99.9% |
Setting Time |
≤ 0.28ms |
Scale Drift |
< 20PPM/°C |
Zero Drift |
< 10μRad. /°C |
Long Term Drift Over 8 hours |
< 0.5mRad |
RMS Current |
3A(Max) |
Peak Current |
15A(Max) |
Maximum Scan Angle |
± 20° |
Storage Temperature |
-10 to +60°C |
Resolution |
8μrad |
Repeatability |
12μrad |
Input Aperture |
3~7mm |
Frequency |
≤1500Hz |
Specification for drive
Input Voltage |
± 15/24VDC@4A MAX.RMS |
Interface Signals |
Digital:XY2-100 |
Analog Signal Input Resistance |
200K ± 1%Ω |
Position Signal Input Resistance |
1K ± 1%Ω |
Position Signal Input Scale Factor |
0.5V/° |
Position Signal Output Scale Factor |
0.5V/° |
Working temperature |
0°C - 40°C |

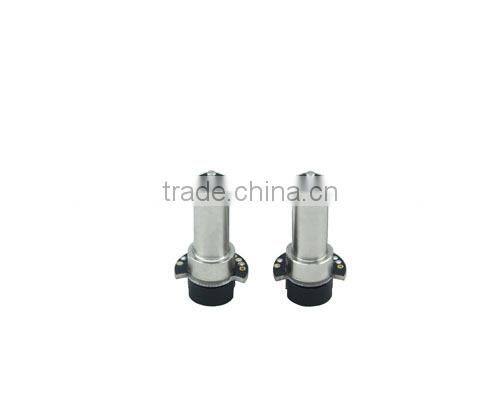

Pictures of SO-SL Galvo Scanner
Application:
The SO-SL Mini Galvanometer scanner/ Laser Galvo scanner is the newest generation produce
which is used in the field of medical and beauty. And the produce is mainly
used in fractional laser system.
The produce include the driver, motor and mirror
Packing:
SO-SL Mini Galvanometer scanner/ Laser Galvo scanner will be packed in the wooden case or carton case.
Shipping:
1.Door to door, by the DHL,EMS, UPS,FedEx etc.
2.By air to the Air cargo or by sea to the seaport.
1. 1 year warranty.
2. Professional technician support on all our products.
3. We supply the sample,user manual, video operation.
4. Online trade-manager 24 hours.
we will continue to “quality first,customer first” principle of service, to update ,better product and quality service to customers.
Contact us:
michellechung07
michelle.z AT m
+86-010-82790570
About us:
SINO-OPER just is a growing friend with you, and always concentrates on innovative
laser scanning systems.
We are honored that our company is supported by the people who are working for it.
Reaching a goal requires a flexible, powerful, dynamic team that reacts on work together
as one unit.
1.Minimum order quantity:1set
2.Payment terms: T/T in advance, western union
3.Delivery time: within 5 days after payment
4.Warranty: 1year
