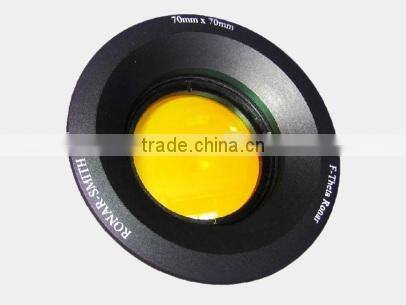

SL1-10.6/9.4-F100Z-40 F-Theta Lens for CO2 laser

Specifications

1.The laser lens is widely used in engraving and marking area.
2.High quality and competitive price

Specifications

Diameter Tolerance +0.0, -0.13mm
Thickness Tolerance ±0.25mm
Paraxial Focal Length ±2%
Centration 3 arc minutes
Clear Aperture >>80%
Surface Figure λ/2 per 1” AT 632.8nm
Surface Quality 40-20 scratch and dig
AR/AR Coating R<0.5% per surface AT 10.6um or 9.4um



Part No.	EFL (mm)	Scan Field (mm)	Diffraction Limit Spot (um)	Full Beam Diameter (mm)	Max input Angel (deg)	Lens Dia (mm)	ET (mm)	BFL (mm)
SL1-10.6/9.4-F420Z-70	420.0	295x295	268.0	20.0	28.0	70.0	3.5	430.0
SL1-10.6/9.4-F420Z-75	420.0	300x300	268.0	20.0	28.0	75.0	3.4	430.0
SL1-10.6/9.4-F435Z-48	433.0	300x300	463.5	12.0	28.0	48.0	3.0	444.0
SL1-10.6/9.4-F450Z-48	448.5	320x320	478.0	12.0	28.0	48.0	2.8	462.0
SL1-10.6/9.4-F480Z-70	480.0	350x350	305.0	20.0	28.0	70.0	3.9	496.3
SL1-10.6/9.4-F480Z-48	480.0	335x335	515.0	12.0	28.0	48.0	2.6	492.0
SL1-10.6/9.4-F550-60	561.0	400x400	360.0	20.0	28.0	60.0	3.8	561.0
SL1-10.6/9.4-F573Z-48	573.0	415x415	614.0	12.0	28.0	48.0	4.2	591.0
SL1-10.6/9.4-F573Z-62	573.0	365x365	364.0	20.0	25.0	62.0	4.0	591.0
SL1-10.6/9.4-F574Z-75	574.0	400x400	364.0	20.0	28.0	75.0	3.8	591.0
SL1-10.6/9.4-F620Z-70	620.0	450x450	396.4	20.0	28.0	70.0	3.9	636.0
SL1-10.6/9.4-F720Z-75	720.0	500x500	454.6	20.0	28.0	75.0	2.7	741.0
SL1-10.6/9.4-F720Z-48	720.7	531x531	783.0	12.0	28.0	48.0	3.0	741.0
SL1-10.6/9.4-F740Z-88	740.0	540x540	476.3	20.0	28.0	88.0	4.2	759.0
SL1-10.6/9.4-F830Z-75	830.0	600x600	532.4	20.0	28.0	75.0	4.0	848.0
SL1-10.6/9.4-F977Z-48	976.0	715x715	1576.5	12.0	28.0	48.0	3.1	990.5
SL1-10.6/9.4-F1100Z-76	1100.0	700x700	558.7	25.0	25.0	76.0	5.2	1138.0
SL1-10.6/9.4-F1150Z-48	1150.0	800x800	1231.0	12.0	28.0	48.0	3.0	1177.0
SL1-10.6/9.4-F1191Z-48	1191.6	770x770	1276.0	12.0	25.0	48.0	3.0	1220.0
SL1-10.6/9.4-F2122Z-48	2128.0	1385x1385	2283.0	12.0	25.0	48.0	3.5	2176.0

Mounting is available upon request, we provide two types of common mountings for industry application:
 R - with M85x1
 S - with 3 holes 120 degree apart at diameter 73.2mm
 Data Sheet for mounted SL1-10.6 series is available upon request.

*Recommended X-Y Mirror separation.

*Diffraction Limited Spot Size.

*spot size is for reference only.
