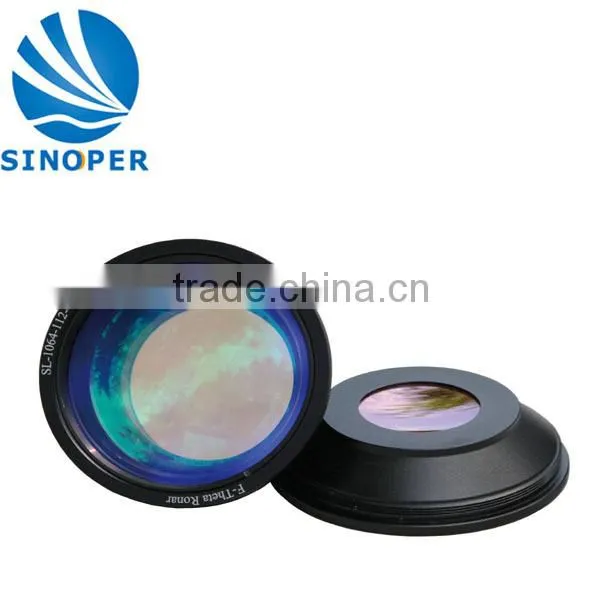

F-Theta Lenses/ Laser Lens/laser lens CO2/laser lens YAG
Objective CO2 Introduction:
Monolithic flat field scan lens are designed for co2 laser scanning system, widely used in drilling and marking fields.
Part No. |
SL1-10.6- F100Z-48A |
SL1-10.6- F150Z-48 |
SL1-10.6- F200Z-70 |
SL1-10.6- F250Z-48 |
SL1-10.6- F420Z-70A |
EFL |
100mm |
150mm |
200mm |
250mm |
420mm |
Scan Field |
70×70mm |
107×110mm |
140×140mm |
175×175mm |
300×300mm |
|
Diffraction Limit Spot |
106.7 um |
161 um |
160 um |
214 um |
268 um |
|
Full Beam Diameter |
12 mm |
12 mm |
16 mm |
15 mm |
20 mm |
|
Max Input Angel |
29 deg |
29 deg |
28 deg |
28 deg |
28 deg |
Lens Dia |
48 mm |
48 mm |
70 mm |
48 mm |
75 mm |
ET |
3 mm |
3.1 mm |
2.8 mm |
3.2 mm |
3.4 mm |
BFL |
106.3 mm |
152.7 mm |
208.8 mm |
256 mm |
430 mm |
Objective YAG Introduction:
Theta Scan Lens is widely applied for taking advantage of galvanometer scanning. Nd: YAG, Green ray and U-YAG scan system. It is widely used in drilling and marking area.
Part No. |
SL-1064- 70-100 |
SL-1064- 110-160B |
SL-1064- 140-210 |
SL-1064- 180-260 |
SL-1064- 300-420 |
EFL mm |
100 |
150 |
210 |
260 |
420 |
Scanning Angle mm, |
-/+25 deg |
-/+28 deg |
-/+25 deg |
-/+25 deg |
-/+27 deg |
Scan Length mm |
90 |
156 |
198 |
254 |
400 |
Scan Field mm |
70×70 |
110×110 |
140×140 |
180×180 |
300×300 |
Ent. Pupil mm |
14 |
12 |
14 |
10 |
14 |
Average Spot Size um |
22.5 |
21 |
14.5 |
47 |
42.5 |
Length mm |
49.5 |
41 |
50 |
63 |
69.36 |
WD mm |
100 |
187.09 |
238.4 |
297 |
495.5 |
Screw Thread |
M85×1 |
M85×1 |
M85×1 |
M85×1 |
M85×1 |
Packing:
F-Theta Lenses/ Lens For Galvo will be packed in the wooden case or carton case.
Shipping:
1.Door to door, by the DHL,EMS, UPS,FedEx etc.
2.By air to the Air cargo or by sea to the seaport.
1. 1 year warranty.
2. Professional technician support on all our products.
3. We supply the sample,user manual, video operation.
4. Online trade-manager 24 hours.
we will continue to “quality first,customer first” principle of service, to update ,better product and quality service to customers.
About us:
SINO-OPER just is a growing friend with you, and always concentrates on innovative laser scanning systems.
We are honored that our company is supported by the people who are working for it.
Reaching a goal requires a flexible, powerful, dynamic team that reacts on work together as one unit.
Contact us:
michellechung07
michelle.z AT
+86-010-82790570
1.Minimum order quantity:1set
2.Payment terms: T/T in advance, western union
3.Delivery time: within 5 days after payment
4.Warranty: 1year
