Cooling Tower Accessory for Cooling Tower

Marley cooling tower fill fetures:

1. Improved water distribution

2. High thermal performance

3. Material meets Cooling Tower Institute

4.Mainly apply to Counterflow fill.

MX75 cooling tower fill Technical Data:

MX Fill is available in MX75 configuration and higher-performing MX625 configuration. MX is a hanging film type cooling tower fill which spreads the water into a thin film, flowing over large vertical surfaces, promoting maximum exposure to air flow. This type of fill provides much more water surface exposure per cubic foot than splash type fill.

MX fill incorporates highly efficient cellular drift eliminators, integrally molded within the fill sheets. Compared with previous designs, these eliminators reduce drift emissions from the tower by a factor of ten or more! Less drift means tower owners save water bills and water treatment chemical expenses.

This fill virtually eliminates the nuisance caused by drift spotting on adjacent buildings and property. For additional savings, the drift eliminators discharge air directly toward the fan. Discharge air, traveling in the right direction when it leaves the eliminators, translates to lower fan horsepower.

Louvers are also integrally molded within the fill sheets preventing water from escaping and assuring precise air distribution throughout wide variations in airflow. Unlike towers equipped with separate external louvers, this fill operates virtually ice-free even in extremely cold weather.

MX fill is thermoformed from PVC with a flame spread rating less than 25 per ASTM E-84 and is considered selfextinguishing. Therefore, the risk of fire damage is minimal.

We have many years for exported Cooling towers filling, we are professional for installation and production .

MX75 PVC Fill for Marley Cooling Tower Weight:

Above Data is for PVC material .

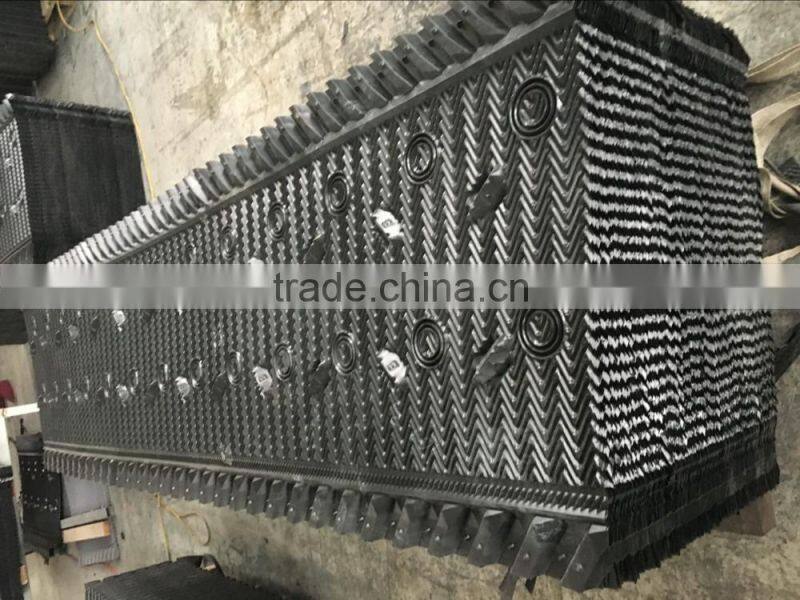

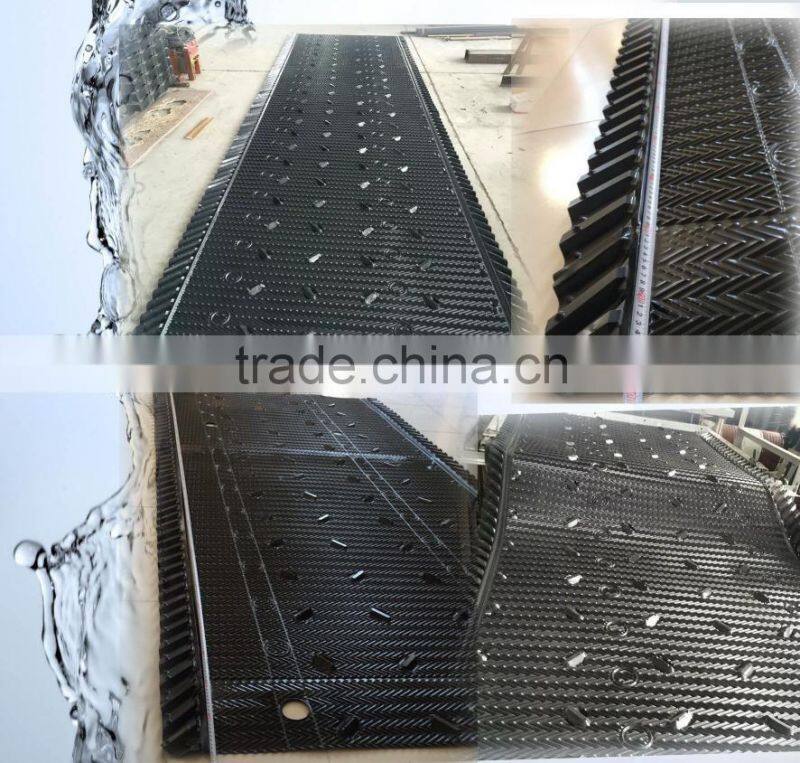

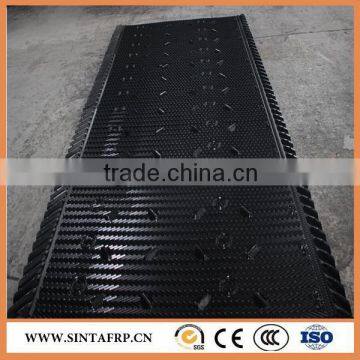

MX75 Marley cooling tower media pictures:

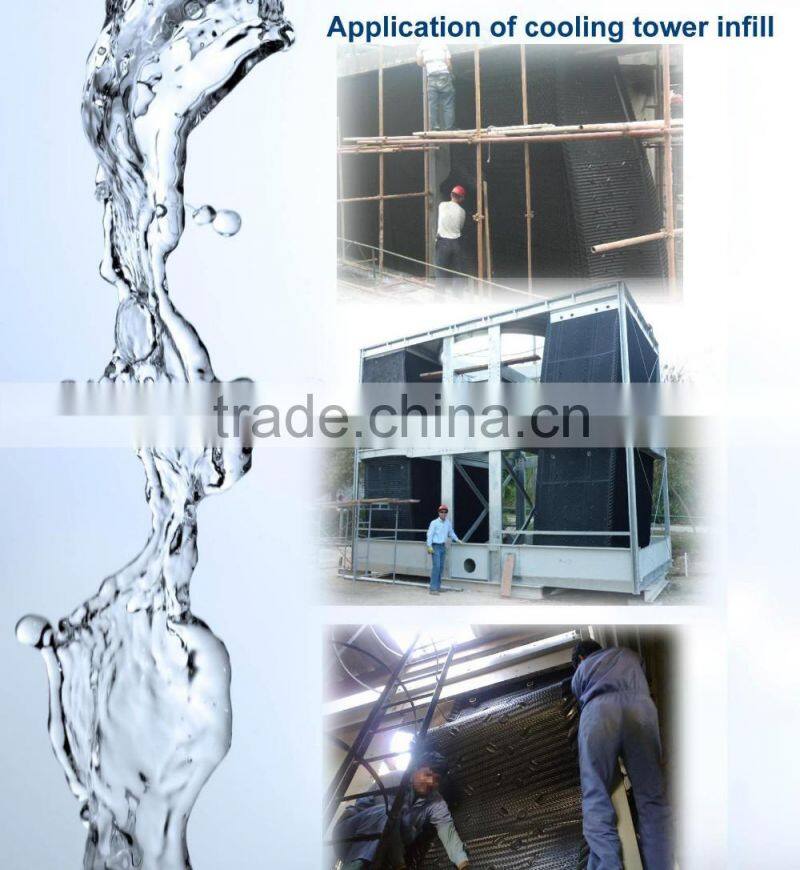

MX75 PVC fill application:

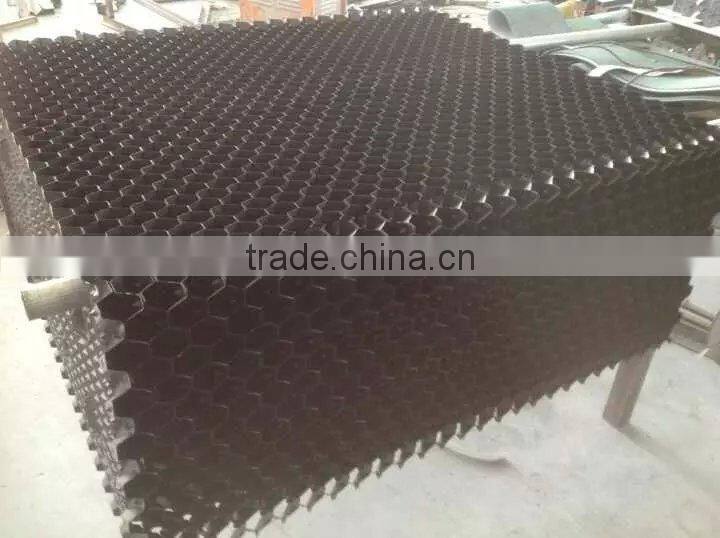

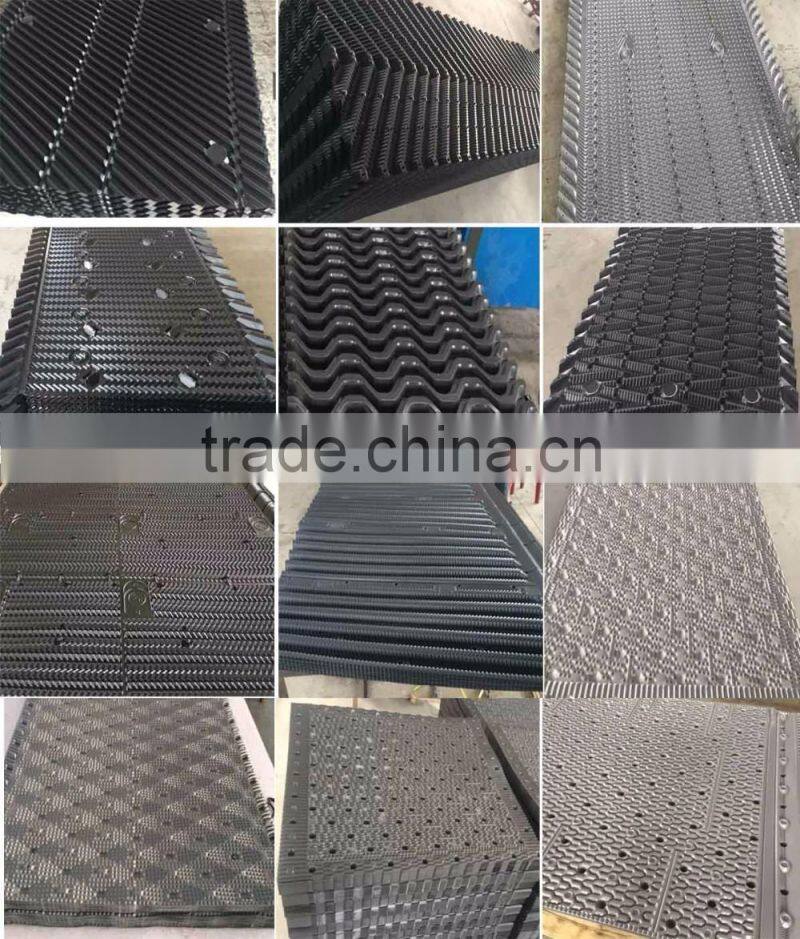

Other cooling tower fill/PVC fill for cooling tower pictures:

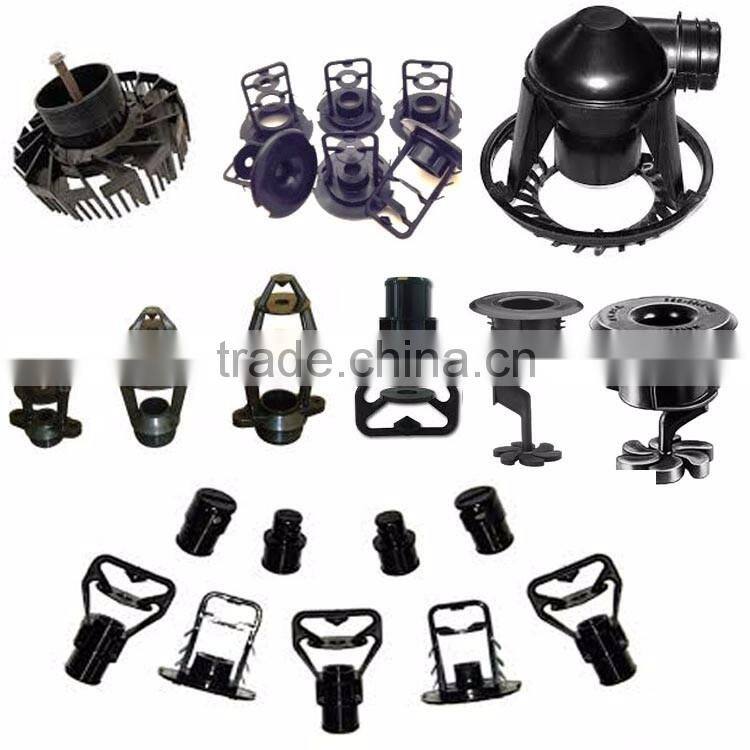

 Cooling tower nozzles:

If you are interested in our products, please don't hesitate to contact with us.
