Marley Sigma Cooling Tower Fill With Drift Eliminator Only Quality Choice

Cooling Towre Fill Media

Sinta could supply many series of cooling tower fill, the hot sale is Marley cooling tower fill,Liangchi,kuken,shinwa cooling tower fill. Other items as cooling tower nozzles,drift elimiantors,mist eliminators,ext,welcome to contact us.

 Marley Sigma Cooling Tower Fill

M106 is a film-type, bottom-supported cooling tower fill. Water flowing down the fill sheets forms a thin film on the surface of the sheets. This type of fill provides much more water surface exposure per cubic foot than does splash-type fill.

                                               TYPE A                                                       TYPE B

This fill offers greater cooling efficiency, which translates to colder water from present systems without an increase in fan horsepower. Or, this improved efficiency can be used to save horsepower and produce the same cold water temperature.

M-106 fill is also available with highly efficient drift eliminators molded right into the fill sheets. Compared with older designs, these eliminators reduce water carryover (drift) from the tower by a factor of ten or more! Reduced drift means lower water and treatment chemical costs.

The nuisance of spotting adjacent buildings and property due to cooling tower drift is virtually eliminated. Options include eliminators for both vertical and horizontal discharge cooling towers. Guiding the discharge air in the right direction further increases savings in fan horsepower.

M-106 is thermoformed from PVC sheets with a maximum flame spread rating of 25 per ASTM E-84. Therefore, the risk of fire damage is minimal.

M106 fill is impervious to rot, corrosion, and decay. The wide sheet spacing prevents clogging ensuring minimal maintenance and long service life.

M-106 is easy and inexpensive to install in almost all crossflow cooling towers. It requires minimal structural modification because it is bottom supported. The integral drift eliminators don’t need extra frames or retainers. M-106 provides more cooling capacity and improved drift elimination in one easily installed pack.

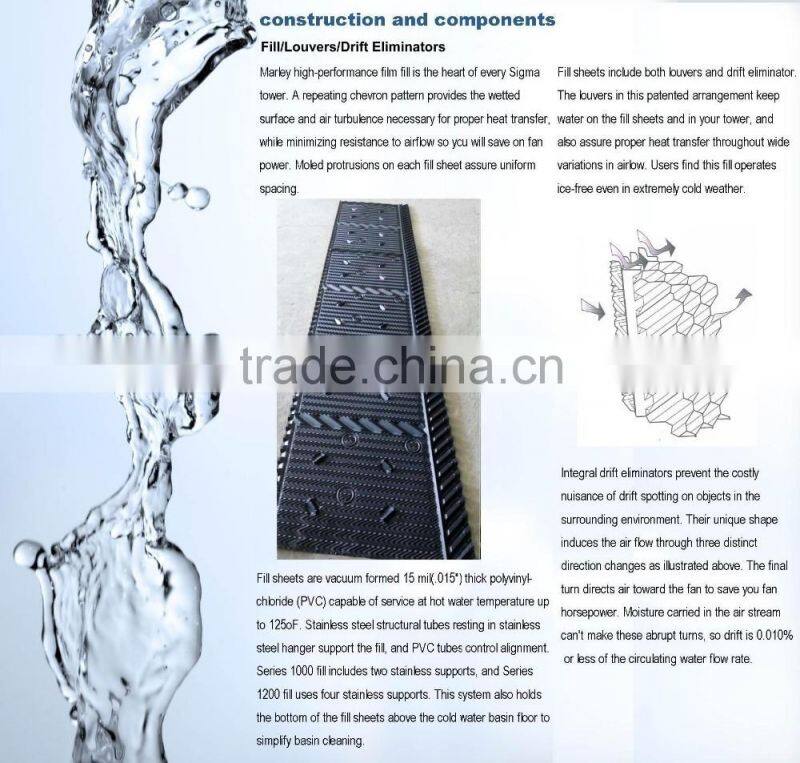

Fill sheets include both louvers and drift eliminator. The louvers in this patented arrangement keep water on the fill sheets and in your tower, and also assure proper heat transfer throughout wide variations in airlow. Users find this fill operates ice-free even in extremely cold weather.

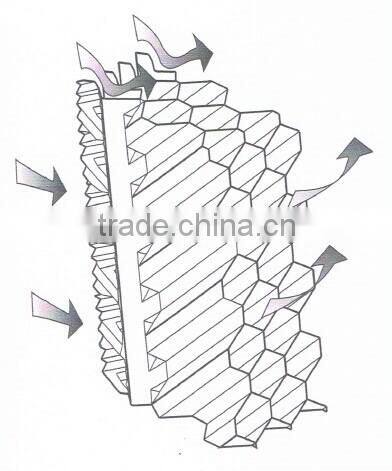

Integral drift eliminators prevent the costly nuisance of drift spotting on objects in the surrounding environment. Their unique shape induces the air flow through three distinct direction changes as illustrated above. The final turn directs air toward the fan to save you fan horsepower. Moisture carried in the air stream can't make these abrupt turns, so drift is 0.010% or less of the circulating water flow rate.

Sigma film fill fetures:

1. Improved water distribution

2. High thermal performance

3. Material meets Cooling Tower Institute

4.Mainly apply to Counterflow fill.

We have many years for exported Cooling towers filling, we are professional for installation and production .

Marley film fill Weight:

Above Data is for PVC material .

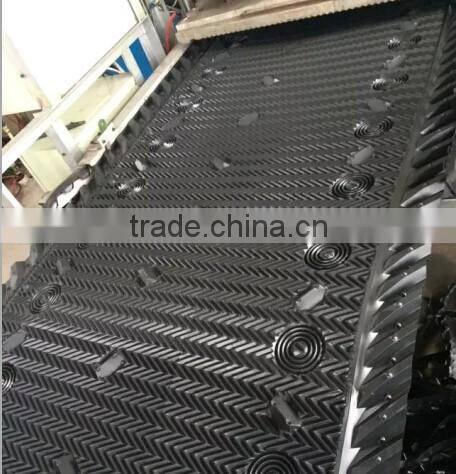

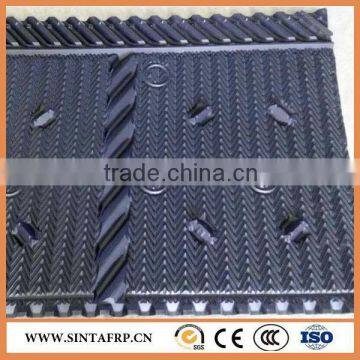

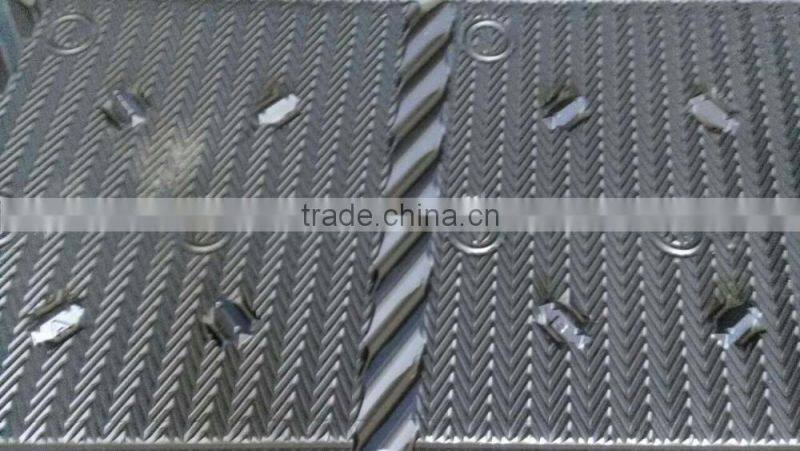

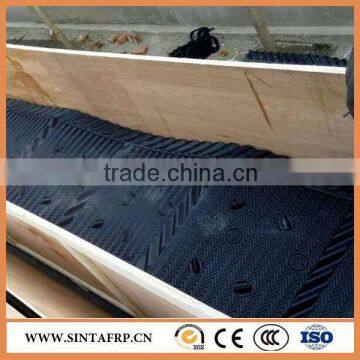

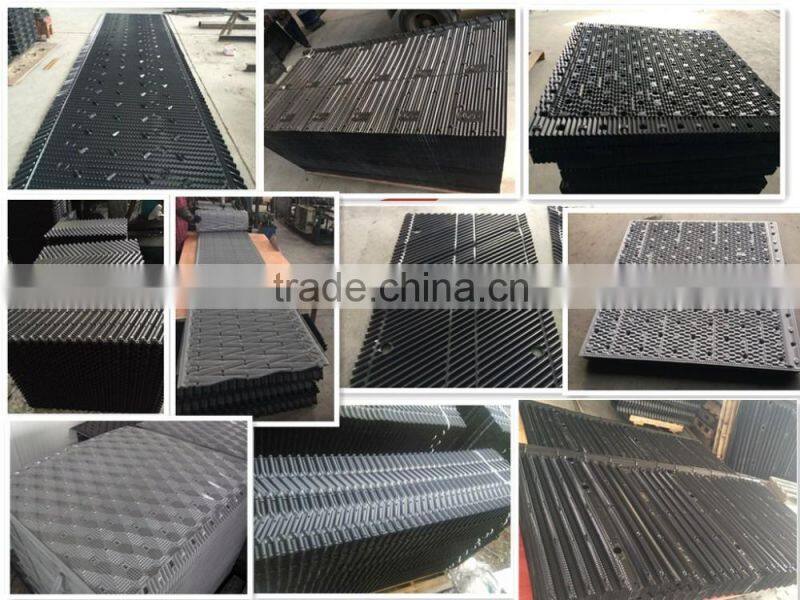

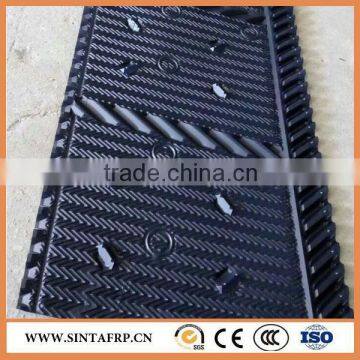

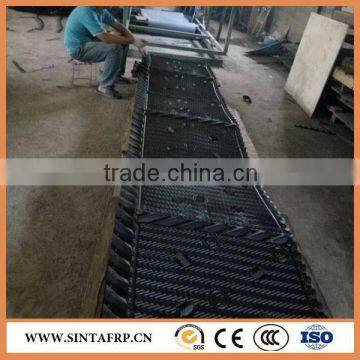

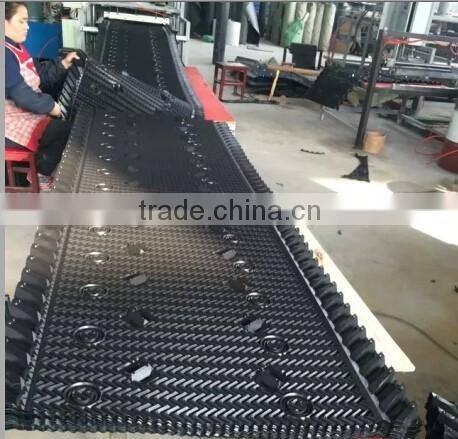

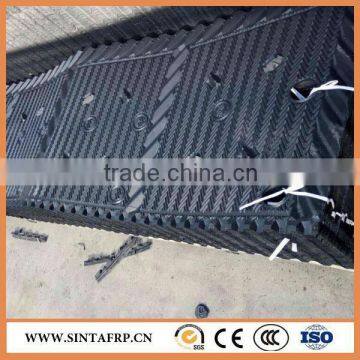

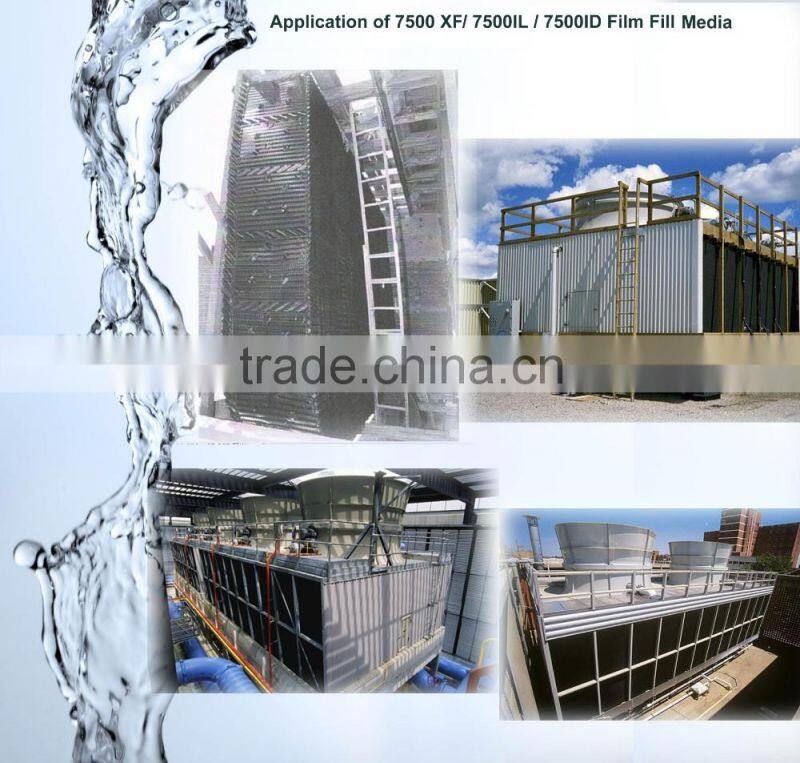

Sigma Tower Fill pictures:

If you are interested in our cooling tower fill, please don't hesitate to contact with us.
