MONTEK High Quality Aluminum top Truss 2016 System Trade or aluminum alloy truss
Specification:
1.Aluminum spigot truss/bolt truss
2.Raw material: Aluminum 6061-T6

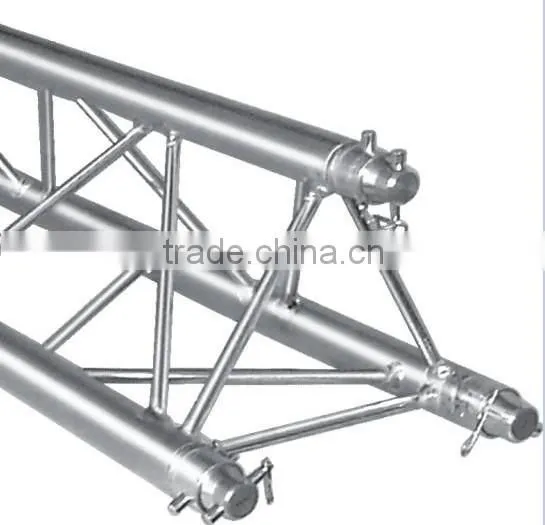

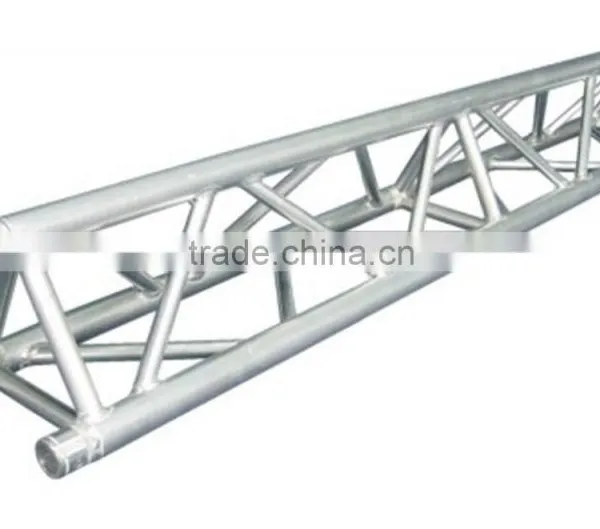

3.Shape:Square,triangle,circle irregular,OEM offered.
4.Truss size:Worldwide recognized 290*290,OEM offered
5.Connect:spigot/bolt
6.We could custom any size roof truss as your demand
Type |
Model |
Size |
Length |
Main tube |
Brace tube |
Snake brace |
Square truss |
T2941 |
290*290mm |
0.25~3.0m |
50*3mm |
25*2mm |
25*2mm |
T2942 |
300*300mm |
|||||
Triangle truss |
T2931 |
290*290mm |
0.5~4.0m |
50*3mm |
25*2mm |
25*2mm |
T2932 |
300*300mm |
|||||
Circle truss |
T2945 |
290*290mm |
2.0~6.0m |
50*3mm |
25*2mm |
25*2mm |
T2946 |
300*300mm |

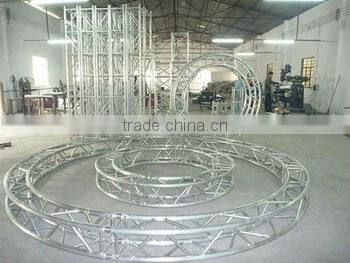

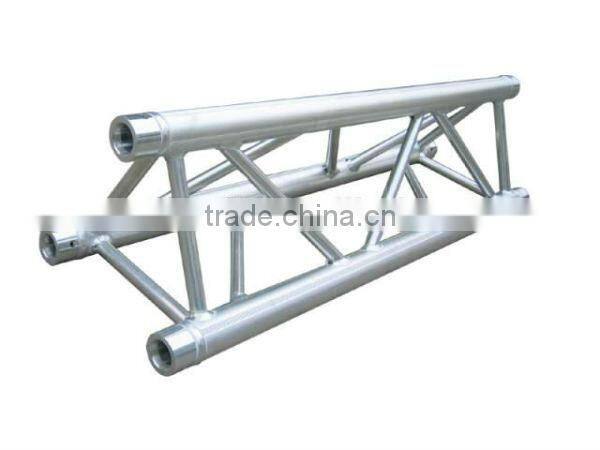

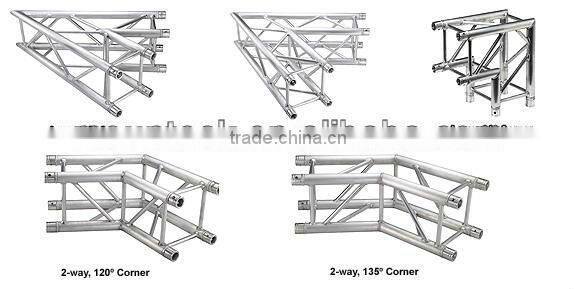

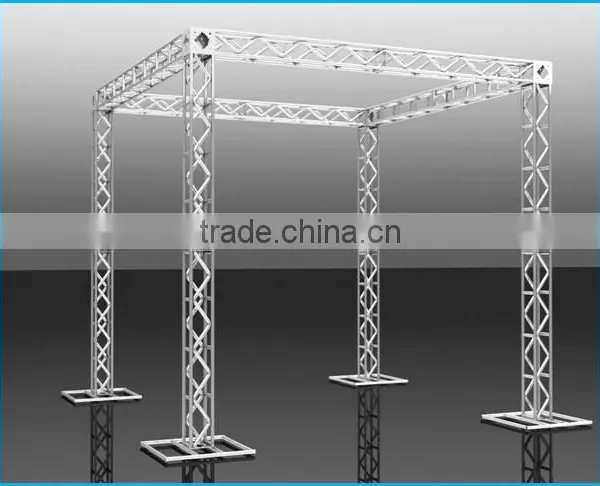

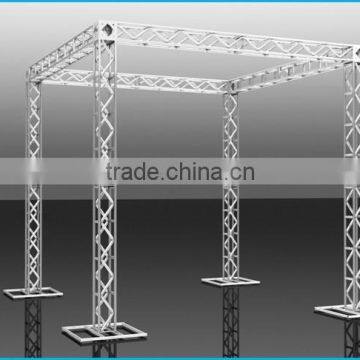

All shapes of trusses:
Loading capacity:
Span(m) |
2 |
4 |
6 |
8 |
10 |
12 |
Center point load(kg) |
1 |
6 |
17 |
29 |
43 |
56 |
Deflection(mm) |
310 |
333 |
359 |
392 |
429 |
520 |
Distributed load(kg) |
500 |
788 |
978 |
1232 |
1432 |
1600 |
Deflection(mm) |
310 |
333 |
359 |
392 |
429 |
520 |
Features of Aluminum Truss System:
1.Lighting truss hanglights,suitable for display,exhipition,stageing structure,concert,event,etc.
nvenient for set up and transportation
3.weight-loading capacity 200-800kg,meter according to the truss size
4.All kinds of truss can be retread and reused because high corrosion resistence,non-rust with high technical welder and good quality of alloy aluminum tube.
More details:

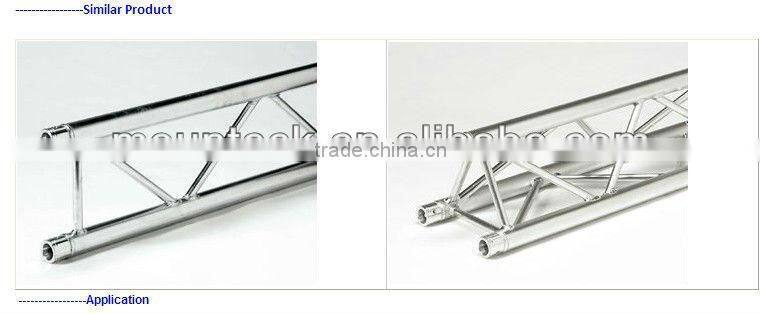

Related product:

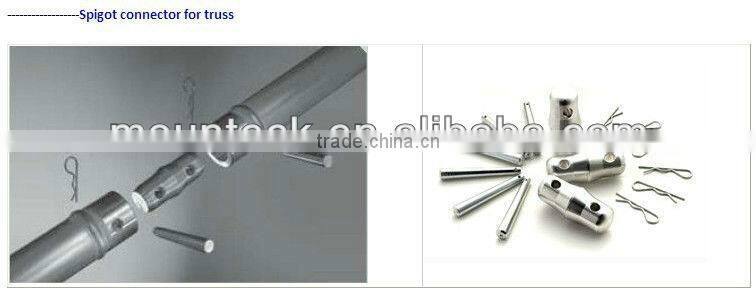

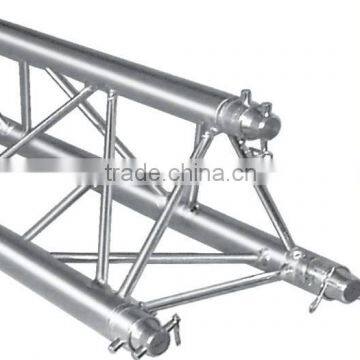

Spigot truss

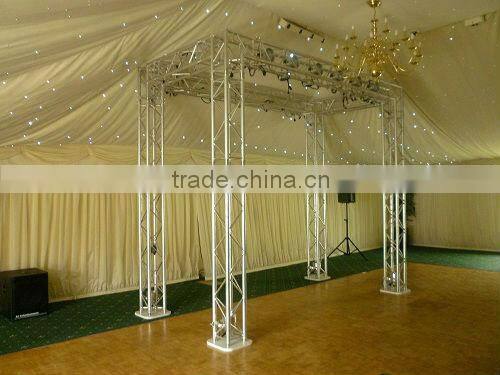

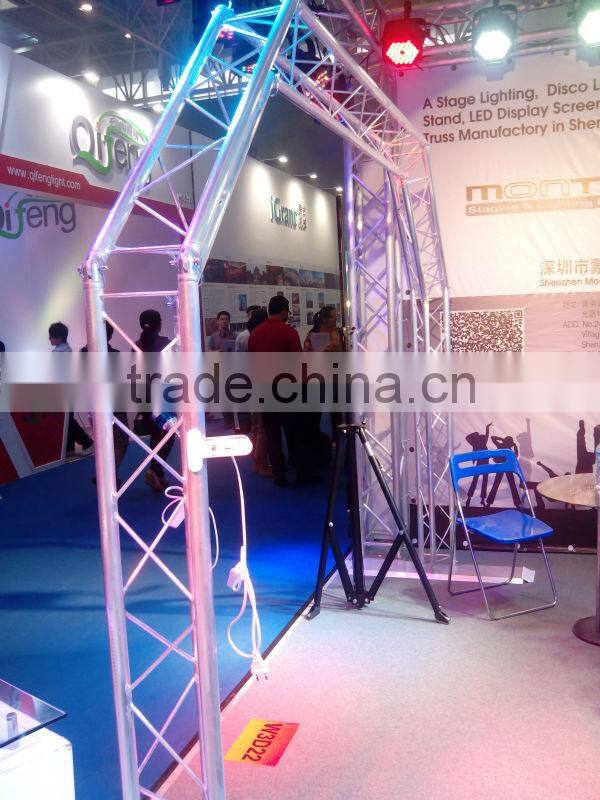

Successful projects:
