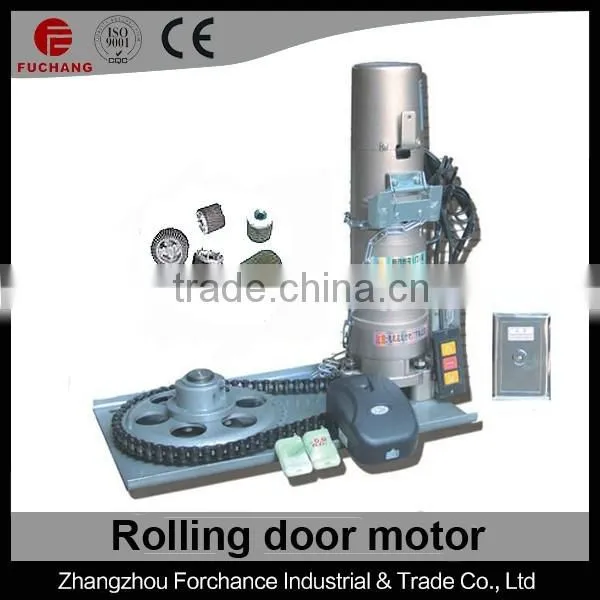

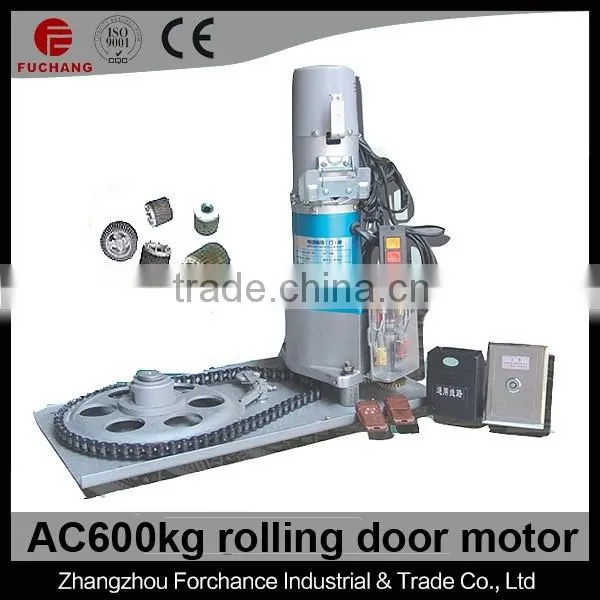

Fujian Forchance Rolling Door Motor for Shutter Doors

Name: Fujian Forchance Rolling Door Motor for Shutter Doors
Brand: FUCHANG
SKU: 113488095
Availability: InStock

US$ 60 - 200 MOQ: 1 Set

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

FUCHANG

Model Number:

FC-400KG-1P

Zhangzhou Forchance Industrial & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

XIAMEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name FUCHANG

Model Number FC-400KG-1P

Fuchang shutter motor can be used for any rolling door.

Specifications:

1) Relative humidity: 90% (25°C)

2) Compact construction, large torque and quiet operation

3) Short hour working system, continuous operation not exceeding 7 minutes with one phase and 10 minutes with three phases

4) Stylish, advanced structure and strong power

5) Safe and stable

6) Little vibration and small power consumption

7) Light weight, easy to install, long operational life and reliable performance

8) Remote control: long distance operation

9) Theftproof and fireproof functions

10) Easy manual operation in case of power failure

11) The first power storage mechanism of its kind in China

12) Security mechanism in case that chain is broken

Roller shutter door main specifications

Model	Power (w)	Set load		Set load			Maxlifting height (m)			Max external diameter of Door (m)	Chain No.	Weight of host motor (kg)
		Lifting force ( kg. f )		Output	Output turn		Laths thickness
				torque	Speed
				N. m	r/min		12	20
220V 50Hz
200-1P	180	200	84		5.1	4			4	0.33	06B	6.8
300-1p	250	300	168		4.8	5			6	0.38	10A	11.8
400-1p	180	400	225		4.5	6			6	0.41	08B	17.5
500-1p	370	500	343		4.8	6			6	0.38	10A	12.8
600-1p	370	600	412		4.8	6			6	0.38	10A	12.8
800-1p	400	800	647		3.94	7			6.7	0.42	10A	13.8
1000-1p	400	1000	809		3.75	6			8	0.47	10A	13.8
