FC-1000-3P Brand Manufacturer of FC Roller Shutter Door

Name: FC-1000-3P Brand Manufacturer of FC Roller Shutter Door
Brand: FUCHANG
SKU: 113487815
Availability: InStock

US$ 1 - 250 MOQ: 1 Set

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

FUCHANG

Model Number:

FC-1000-3P

Zhangzhou Forchance Industrial & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

XIAMEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name FUCHANG

Model Number FC-1000-3P

Specifications

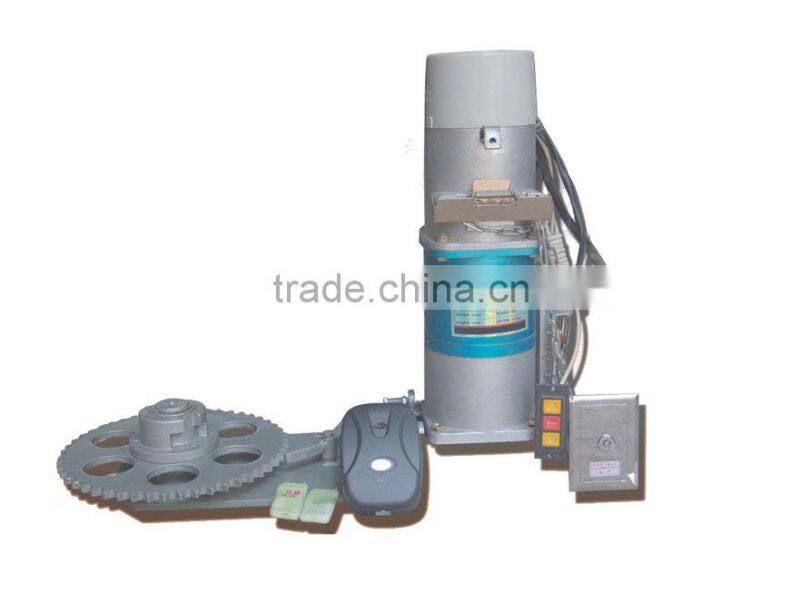

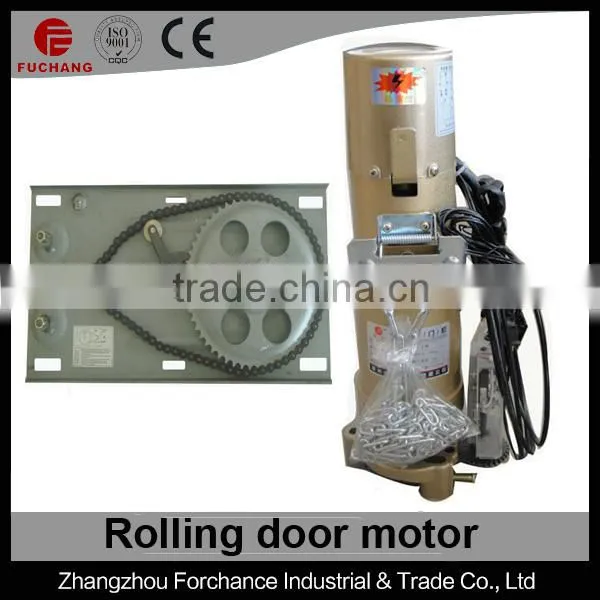

Roller shutter door:
1.with high performance
2.simplicity of installment and operator
3.match the ordinary shutter doo

FuChang series Roller shutter door structure and function features:

Left or right installation is ok
design controller with different funtions according to customers request.
300kgs/500kgs could add reserve power function
overheat protection:if the motor temperature is over 110 degreed centigrade, the motor stops working automatically, works again if temperature return below 70 degreed centigrade
It can be operated by electricity and manual
Durable compact design great elevating power with low noise
Could match infrared sensor or alarm system(optional)

Four relays inside the motor,four micro-active switch inside the limit system

Roller shutter door Main Specifications

Model	Motor Power(W)	Max.lifting force(KG)	Max.hosting height(M)	Max.output Torque(N.W)	Rated Current(A)	Large Sprocket Reel Speed(R/MIN)	Chain No.
Power Supply(V/HZ): 220/50
DJM-300-1P	250	300	6	168	3.3	4.8	08B
DJM-400-1P	250	400	6	225	3.3	4.8	08B
DJM-500-1P	370	500	6	343	3.9	4.8	10A
DJM-600-1P	370	600	6	412	3.9	4.8	10A
DJM-800-1P	400	800	9	647	4.5	3.94	10A
DJM-1000-1P	400	1000	9	809	4.5	3.75	12A
Power Supply(V/HZ): 380/50
DJM-600-3P	250	600	6	412	1.2	4	10A
DJM-800-3P	300	800	9	647	2.0	3.94	10A
DJM-1000-3P	400	1000	9	1102	2.3	3.74	12A
DJM-1300-3P	600	1300	9	1372	3.0	4.4	12A
DJM-1500-3P	600	1500	9	1610	3.2	5.2	16A
