High Quality and Best Price Led Driver 1500mA 34VDC
Negotiable
MOQ: 200 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Evada
Model Number:
CUF-050-150-SFD2
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Strength Led Driver 2100mA 24VDCNegotiableMOQ: 200 Units -
Xiamen, China Driver Waterproof Electronic Led Driver Ip67 75WNegotiableMOQ: 500 Units
-
75W 85W 100W 120W Constant Current Led Driver With Waterproof Alumium Led Driver HousingNegotiableMOQ: 500 Units
-
High Quality 100w Constant Current Power Supply, Led Driver 1050maUS$ 14 - 17MOQ: 500 Units
-
EVADA Led Switching Power Supply 85W With Aluminum Led Driver Housing, Waterproof Aluminum DriverNegotiableMOQ: 500 Pieces
Place of Origin
Fujian, China
Brand Name
Evada
Model Number
CUF-050-150-SFD2
Output Power
1 - 50W
Output Type
Single
Input Voltage
Other, 90-264VAC
Output Voltage
34VDC
Output Frequency
50Hz/60Hz
Output Current
1500mA
Product Description
High quality and best price led driver 1500mA 34VDC
| Features : | |||
| 1. Universal AC input/Full voltage (90VACup to 264VAC) | |||
| 2.Low ripple current design, no flicker | |||
| 3.Protections: Overload / Over voltage /short circuit | |||
| 4.Built-in active PFC function | |||
| 5.Cooling by free air convection | |||
| 6.Suitable for LED lighting and moving sign applications | |||
| 7.IP65/67 design for indoor or outdoor installations | |||
| 8. Damp / wet location outdoor application | |||
| 9.Compliance to worldwide safety regulations for lighting | |||
| 10.3 years warranty |
SPECIFICATION
| MODEL | CUF-050-150-SFD2 | |||||||||
| OUTPUT | DC VOLTAGE | 34V | ||||||||
| CONSTANT CURRENT REGION | 25-36V | |||||||||
| RATED CURRENT | 1500mA | |||||||||
| RATED POWER | 50W | |||||||||
| RIPPLE & NOISE (max.) | 300mVp-p | |||||||||
| LINE REGULATION | ±1% | |||||||||
| LOAD REGULATION | ±3% | |||||||||
| SETUP, RISE TIME | 3000/80ms at full load 220VAC /110VAC | |||||||||
| INPUT | VOLTAGE RANGE | 90-264VAC | ||||||||
| FREQUENCY RANGE | 47-63Hz | |||||||||
| POWER FACTOR | PF≥0.99/110VAC PF≥0.97/220VAC | |||||||||
| EFFICIENCY (Typ.230Vac/50Hz) | ≥85% | |||||||||
| AC CURRENT | 0.650A / 110VAC 0.330A / 220VAC | |||||||||
| INRUSH CURRENT(max.) | COLD START 10A/250VAC | |||||||||
| LEAKAGE CURRENT | <0.75mA / 240VAC | |||||||||
| PROTECTION | OVER CURRENT (Typ.) | 95 - 108% | ||||||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
| OVER VOLTAGE | 42-45V | |||||||||
| Protection type : Constant voltage limiting | ||||||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +55℃ @ full load ; +70℃ @ 60% load | ||||||||
| WORKING HUMIDITY | 20-95% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40~ +80℃, 10 ~95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃(0-50℃) | |||||||||
| VIBRATION | 10 - 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||
| SAFETY & EMC | SAFETY STANDARDS | UL1012 ; EN61347-1, EN61347-2-13 independent ; UL60950-1, TUV EN60950-1 (TBD) | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |||||||||
| SOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 ℃/ 70% RH | |||||||||
| EMI CONDUCTION & RADIATION | Compliance to EN55015, EN55022 (CISPR22) Class B | |||||||||
| HARMONIC CURRENT | Compliance to EN61000-3-2 Class C (≥75% load) ; EN61000-3-3 | |||||||||
| EMS IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61547, EN55024, light industry level (surge 4KV), criteria A | |||||||||
| OTHERS | MTBF | 30Khours. | ||||||||
| DIMENSION | L142*W44.2*H30mm | |||||||||
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. | |||||||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | ||||||||||
3. Constant current operation region is within 75% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design. 4. Safety and EMC design refer to EN60598-1, subject 8750(UL), CNS15233, GB7000.1, FCC part18. | ||||||||||

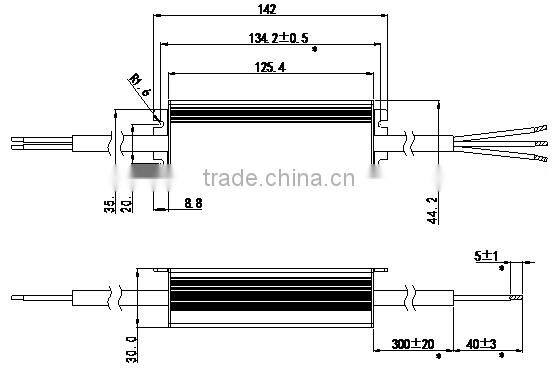

Mechanical Specification
