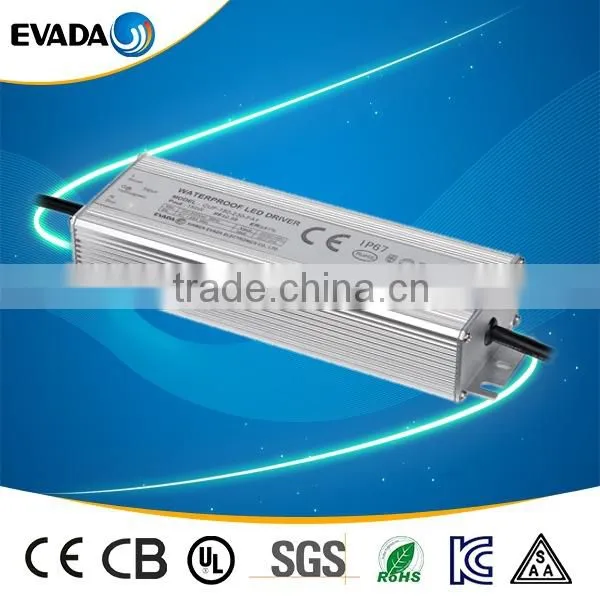

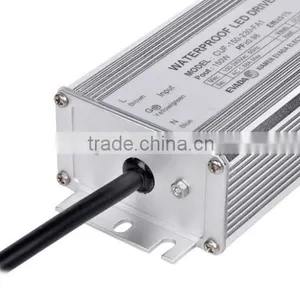

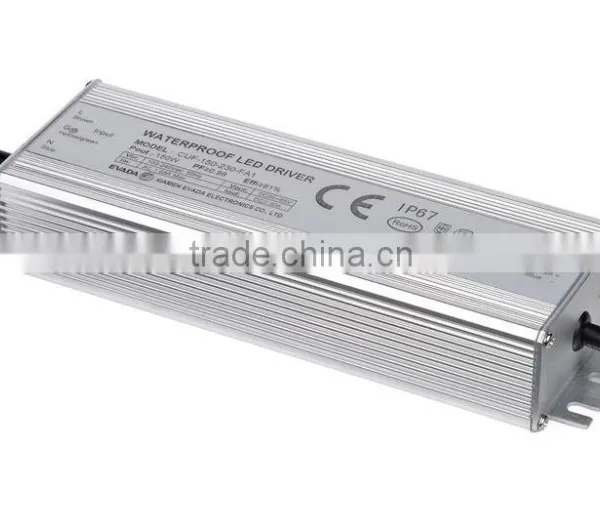

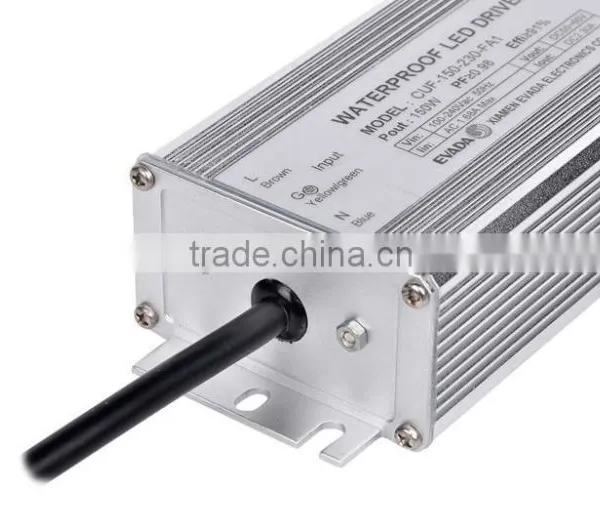

Led Driver Factory Led Driver Constant Current 2.5a 135w

Name: Led Driver Factory Led Driver Constant Current 2.5a 135w
Brand: Evada
SKU: 113487217
Availability: InStock

Negotiable MOQ: 200 Units (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

Evada

Model Number:

CUF-135-250-FA1

Xiamen Evada Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name Evada

Model Number CUF-135-250-FA1

Output Power Other, 135W

Output Type Single

Input Voltage Other, 90-264V AC

Output Voltage 38-54V DC

Output Frequency 50Hz/60Hz

Output Current 2.5A

led driver factory led driver constant current 2.5a 135w

Features:

90~264VAC Universal AC input
Fully enclosed metal case with IP67 level
Short circuit, over load, over voltage, over temperature protections
Built-in active PFC, typical PF≥0.98
Cooling by free air convection
Ideal for street lights, LED lighting, moving signs and outdoor electronic kiosks
3 year warranty
OEM service. Output current/voltage etc. are customizable!

Specification:

MODEL		CUF-135-250-FA1
OUTPUT	DC VOLTAGE	38-54V
	CONSTANT CURRENT REGION	0~2500ma
	RATED CURRENT	2.5A
	RATED POWER	135W
	RIPPLE & NOISE	1V
	VOLTAGE TOLERANCE	10%
	LOAD REGULATION	±2.0%
INPUT	VOLTAGE RANGE	90~264VAC
	FREQUENCY RANGE	47~63Hz
	POWER FACTOR	PF≥0.98/220VAC
	EFFICIENCY(Typ.)	91%
	AC CURRENT	1.68A Max
PROTECTION	OVER CURRENT	±5% rated output current
		Protection type: Constant current limiting
	SHORT CIRCUIT	Hiccup mode
	Over VOLTAGE	Protection type: Shut down and latch off o/p voltage, re-power on to recover.
	Over TEMP.	Protection type: Shut down o/p voltage, re-power on to recover.
ENVIRONMENT	WORKING TEMP.	-30°C~+70°C
	WORKING HUMIDITY	10%RH~100%RH non-condensing
	STORAGE TEMP., HUMIDITY	-40°C~+80°C 10~95%RH
SAFETY& EMC	SAFETY STANDARDS	IEC/EN60598;IEC/EN61347;CB
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC
	EMC	EN55015/EN61547/EN61000
OTHERS	IP RATING	IP67
	MTBF	60000Hours
	DIMENSION	2257039.2mm(LWH)
	PACKING	1.2KG/pc;12pcs/ctn; 15.2KGS/0.02M³
