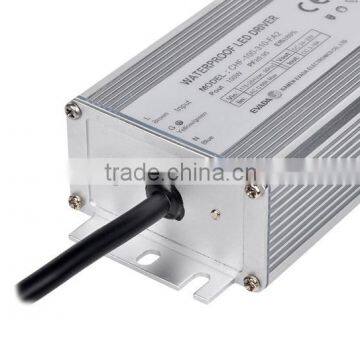

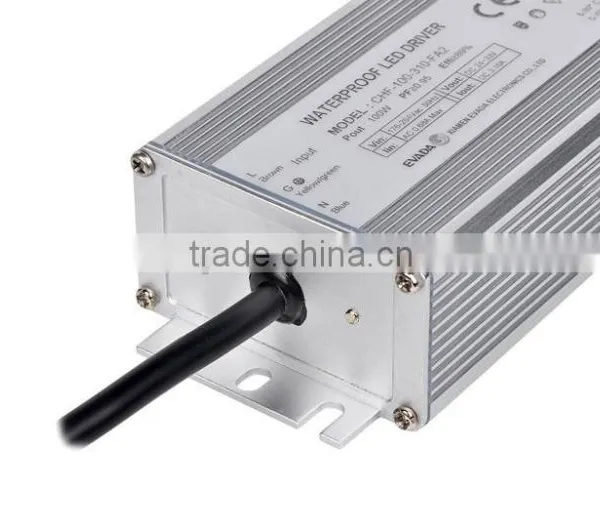

IP67 Waterproof Outdoor Constant Current Led Power Driver 65W

Name: IP67 Waterproof Outdoor Constant Current Led Power Driver 65W
Brand: Evada
SKU: 113487091
Availability: InStock

Negotiable MOQ: 100 Units (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

Evada

Model Number:

CHF-065-045-FA2

Xiamen Evada Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name Evada

Model Number CHF-065-045-FA2

Output Power Other, 65W

Output Type Single

Input Voltage Other, 176-264V AC

Output Voltage 100-145V DC

Output Frequency 50Hz/60Hz

Output Current 450mA

IP67 waterproof outdoor constant current led power driver 65W

EVADA is a manufacturer which can make custom designed. Welcome OEM/ODM.

Features:

90~264VAC Universal AC input
Fully enclosed metal case with IP67 level
Output voltage and constant current level can be custom-made
Short circuit, over load, over voltage, over temperature protections
Built-in active PFC, typical PF≥0.98
Cooling by free air convection
Ideal for street lights, LED lighting, moving signs and outdoor electronic kiosks
2 year warranty

MODEL	led power driver	CHF-065-045-FA2
OUTPUT	DC VOLTAGE	100-145V DC
	CONSTANT CURRENT REGION	0~450ma
	RATED CURRENT	0.45A
	RATED POWER	65W
	RIPPLE & NOISE	1V
	VOLTAGE TOLERANCE	10%
	LOAD REGULATION	±2.0%
INPUT	VOLTAGE RANGE	90~264VAC
	FREQUENCY RANGE	47~63Hz
	POWER FACTOR	PF≥0.98/220VAC
	EFFICIENCY(Typ.)	91%
	AC CURRENT	1.68A Max
PROTECTION	OVER CURRENT	±5% rated output current
		Protection type: Constant current limiting
	SHORT CIRCUIT	Hiccup mode
	Over VOLTAGE	Protection type: Shut down and latch off o/p voltage, re-power on to recover.
	Over TEMP.	Protection type: Shut down o/p voltage, re-power on to recover.
ENVIRONMENT	WORKING TEMP.	-30°C~+70°C
	WORKING HUMIDITY	10%RH~100%RH non-condensing
	STORAGE TEMP., HUMIDITY	-40°C~+80°C 10~95%RH
SAFETY& EMC	SAFETY STANDARDS	IEC/EN60598;IEC/EN61347;CB
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC
	EMC	EN55015/EN61547/EN61000
OTHERS	IP RATING	IP67
	MTBF	60000Hours
	DIMENSION	2257039.2mm(LWH)
	PACKING	1.2KG/pc;12pcs/ctn; 15.2KGS/0.02M³
