DJM-300kg-1P High Speed Door Operator for Rolling Door Motor

FOB Price

US$ 1 - 249 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China		Brand Name	Fuchang
Model Number	DJM-300kg-1P

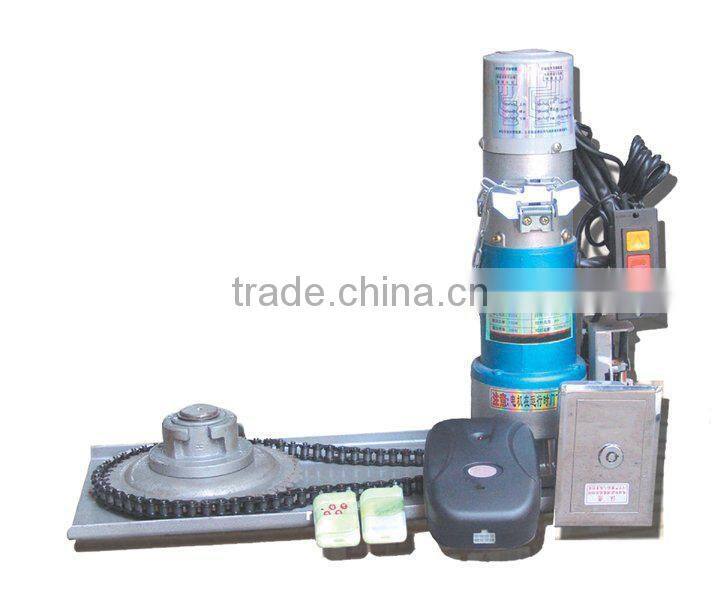

rolling door operator for rolling door motor picture:

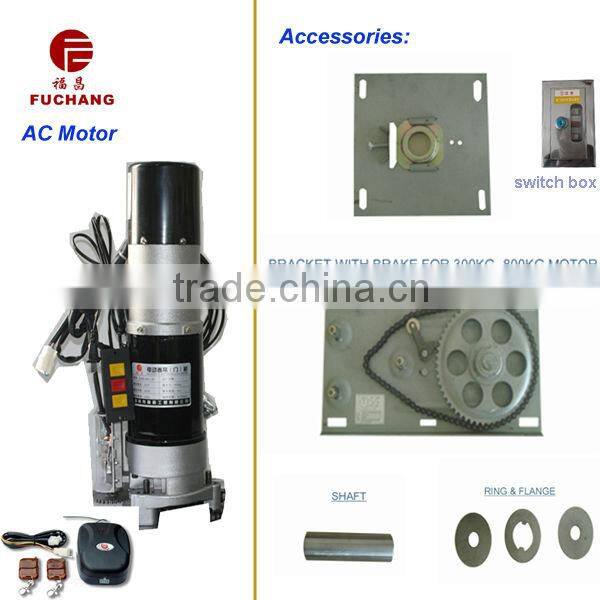

rolling shtter door motor accessories:

High speed door operator structure and function features:

Left or right installation is ok
design controller with different funtions according to customers request.
300kgs/500kgs could add reserve power function
overheat protection:if the motor temperature is over 110 degreed centigrade, the motor stops working automatically, works again if temperature return below 70 degreed centigrade
It can be operated by electricity and manual
Durable compact design great elevating power with low noise

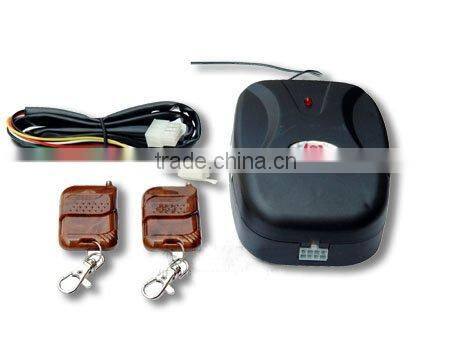

Could match infrared sensor or alarm system(optional)
Four relays inside the motor,four micro-active switch inside the limit system
Features:

Model	Motor power (W)	Max.lifting force (Kg)	Max.hoisting height(M)	Max external diameter of door (M)	Chain NO.	Weight of main engine (Kg)
Model	Motor power (W)	Max.lifting force (Kg)	Max.hoisting height(M)	Max external diameter of door (M)	Chain NO.	Weight of main engine (Kg)
Power supply (V/Hz):220/50
DJM-300-1P	200	300	6	0.42	10A	7.4
DJM-500-1P	300	500	6	0.42	10A	11
DJM-600-1P	300	600	6	0.48	10A	11
DJM-800-1P	400	800	9	0.54	10A	16
Power supply (V/Hz):380/50
DJM-300-3P	180	300	6	0.42	10A	7.4
DJM-500-3P	250	500	6	0.42	10A	11
DJM-600-3P	250	600	6	0.48	10A	11
DJM-800-3P	300	800	9	0.54	10A	16
DJM-1000-3P	360	1000	9	0.54	12A	16
DJM-1300-3P	600	1300	9	0.54	12A	22

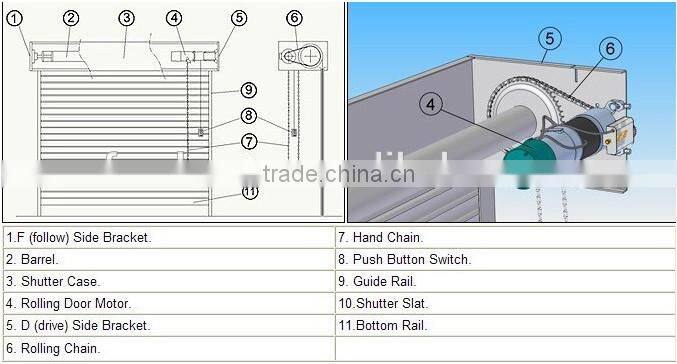

Easy installation schematic
