yueda manufacture Large format 3D printer Roll To Roll UV printer
YD-2512-KD is a new kind of 3d printer with embossed effect for glass wood metal. Now it is very hot in the market with its unique design and strong function. It can instoll Gen 4 and Gen 5,industrial KM1024/512/1024i printhead. It has flexible materials: wood, glass, metal, wallpaper, leather, carpets, reflective film, canvas, paper, PVC etc. Shen Zhen Yueda is a specialized factory which manufacture uv printing machine. We would try best to meet your satisfaction completely! 2512 KM1024 would be a good choice for you! Shenzhen Yueda uv printer factory provide you the best printing machines with best factory price!
YD2512-KD Gen4 head printer specification
Printer model | YD2512-KD printing machine | ||
Print size | 2500×1250mm | ||
Print height | 100mm | ||
Print head | KM1024(14pl) | ||
Number of nozzles | Single row 4,5,6,7,8 | ||
Speed
| High-speed mode | 30 square meter /h | |
| Normal mode | 23 square meter /h | |
| High resolution mode | 15 square meter /h | |
Color System | C,M,Y,K,LC,LC,W,V | ||
ink | UV ink | ||
RIP Software | Photoprint Software | ||
Color management | International standard ICC | ||
UV curing systems | 085 mercury lamp curing, the energy level is adjustable 3-4 / led UV lamp (optional) | ||
Interface mode | High speed USB | ||
Power requirement | AC220V/3000W;50/6HZ | ||
Working environment | the optimum temperature:20℃-28℃,Relative humidity:40%-60% | ||
Printer size | 4700×2000×1300(mm) | ||
1. Internal heating industrial printhead
Gray level konica1024(14pl/42pl,12khz) industrial printhead wide printing 72mm. Used widely in UV printing
field. This space-saving printhead not only maked the printer smaller, but also improved the primnting quality.
2. High end equipment indicators of 3d printer can meet the needs of industrial customers: Configuration
import accessories, Such as: Ganasonic servo motor, HIWIN, TCG deceleration machine, IGUS belt etc.
3. Humanized safety protection design of 2512 best printing machine:
The whole steel frame structure is reliable. Using high temperature to stress, protect the printers from deformation caused by long distance transportation and shipping turbulence.The beam adopts double guide rail
structure, can make the head stable, run faster and smoother.
4. Humanized automatic control design of printer for glass wood metal:
By a single servo control of Y axis on both ends of the lead screw, guarantee the synchronous movement of
two side lead screw.
We are One of the biggest manufacturer which producing advertising equipment and printing machines in China. Our main products are printers, heat press machines. Our company is a high scientific and
technical enterprise that combines research, development, production and sales together. Products
have been sold to all over the world. Until now,we have offered our products to more than 200
countries and regions.
Digital printing machine in China
Notice: Our uv printers can print on any materials.such as :Glass, Plexiglas, plastic, ceramic tile, stone,ceiling, crystal, acrylic sheets, leather, aluminum sheets, metal, wooden sheets, billboards, KT board, foam board & flexible media like wall paper, glistening film, canvas, carpet, paper sheets, etc.
printing samples:

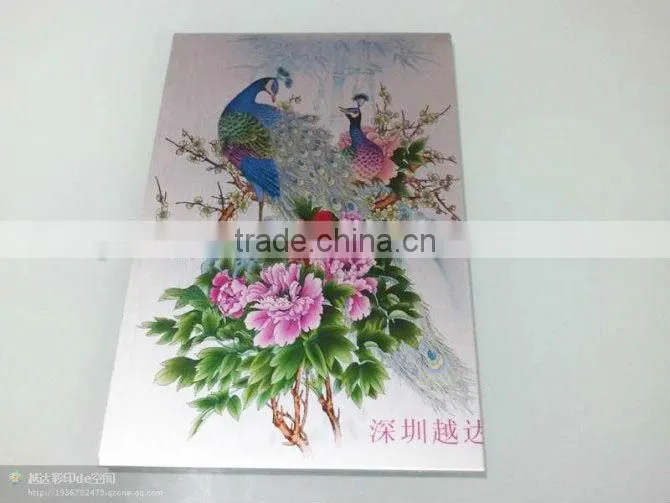

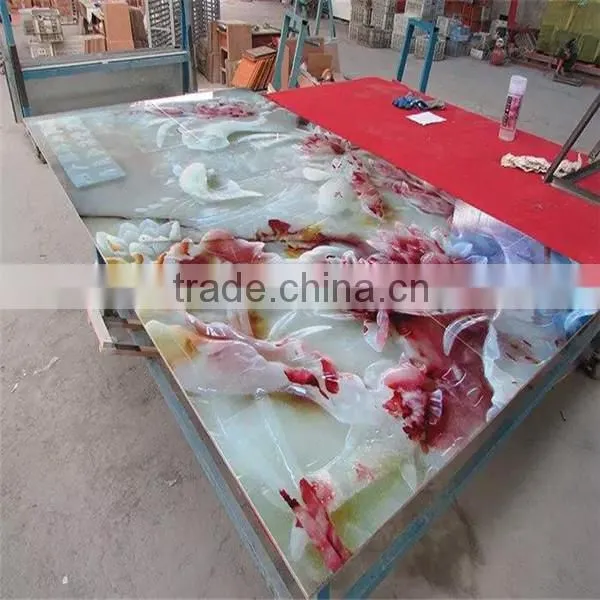

Printer for glass wood metal samples:
1. About us?
We are one of the true manufacturer, located at Shenzhen.
2. About price and quality?
We can not say we are the best supplier, but we are honesty for our quality and price. Good quality is our first rule, and good service is our mission. We produce machines as 5S management rules, and ISO standard.
3. Why you choose our factory?
We produce flatbed printing machine, digital flatbed printer is a new product in printing industry, it can print on the surface for various kinds of flat objects directly, such as crystal, leather, glass, metal, ceramic tile, PVC, PP, PE and so on. Any pictures can be printed on the surface of the subjects by the printer with high resolution ,it is the fastest flatbed printer
on the current market. And we will keep you with a best service, give us a chance, also give your a chance to know this
field if you really want to know this printer.
1. Over 10 years of Export Experiences.
2. Exports to more than 200 countries.
3. Professional oversea aferservice team.

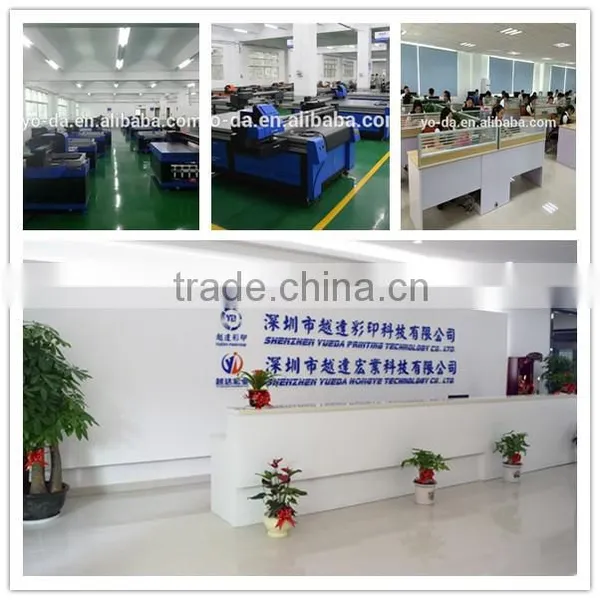

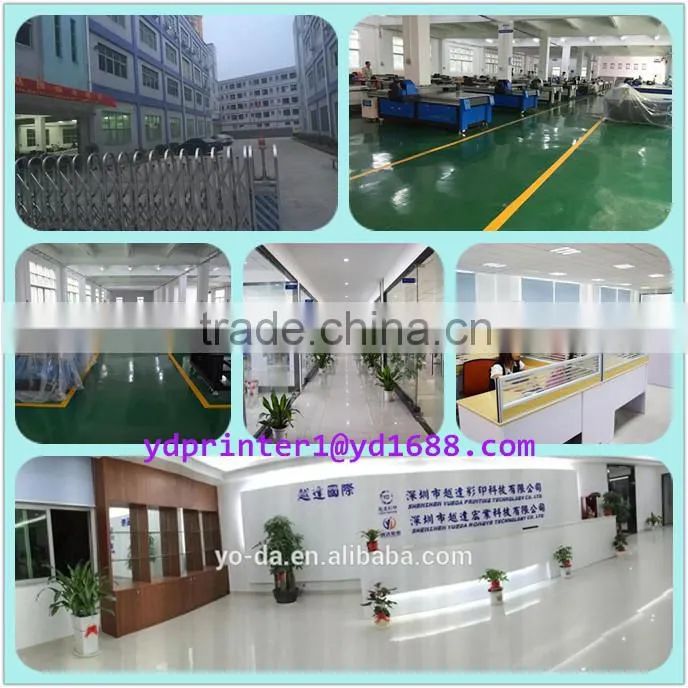

4. We have two factorys,each factory Over 10000 square meters office and showroom.
5. All of Our products got the CE certification.
Business conditions:
1. Terms: FOB Shenzhen
2. Payment: T/T 30% deposit, 70% balance payment before shipment.
3. Delivery Time: about 3-7 working days after receiving the payment
4. One year warranty, all life maintenance.
