DJM-300-1P Automatic Door Operator Commercial Door Openers

Name: DJM-300-1P Automatic Door Operator Commercial Door Openers
Brand: Fuchang
SKU: 113486531
Availability: InStock

US$ 1 - 249 MOQ: 1 Set

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

Fuchang

Model Number:

DJM-300-1P

Zhangzhou Forchance Industrial & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

XIAMEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name Fuchang

Model Number DJM-300-1P

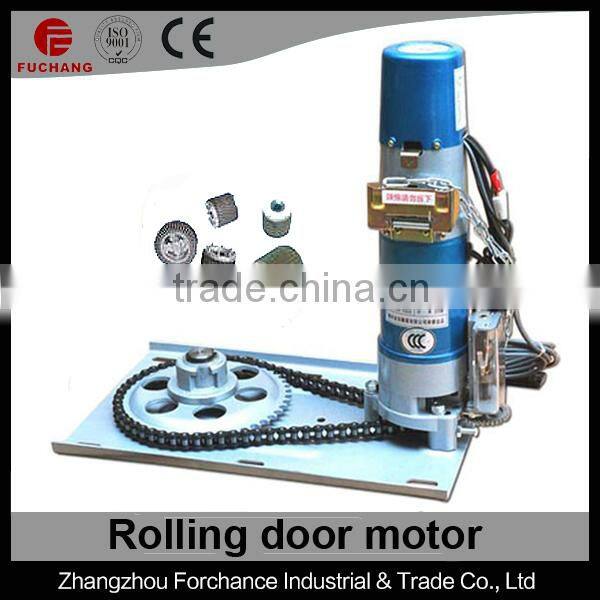

Rolling door motor picture:

FuChang Rolling Door Motor structure and function features:

Left or right installation is ok
design controller with different funtions according to customers request.
300kgs/500kgs could add reserve power function
overheat protection:if the motor temperature is over 110 degreed centigrade, the motor stops working automatically, works again if temperature return below 70 degreed centigrade
It can be operated by electricity and manual
Durable compact design great elevating power with low noise
Could match infrared sensor or alarm system(optional)
Four relays inside the motor,four micro-active switch inside the limit system
Features:

Model	Motor power (W)	Max.lifting force (Kg)	Max.hoisting height(M)	Max external diameter of door (M)	Chain NO.	Weight of main engine (Kg)
Model	Motor power (W)	Max.lifting force (Kg)	Max.hoisting height(M)	Max external diameter of door (M)	Chain NO.	Weight of main engine (Kg)
Power supply (V/Hz):220/50
DJM-300-1P	200	300	6	0.42	10A	7.4
DJM-500-1P	300	500	6	0.42	10A	11
DJM-600-1P	300	600	6	0.48	10A	11
DJM-800-1P	400	800	9	0.54	10A	16
Power supply (V/Hz):380/50
DJM-300-3P	180	300	6	0.42	10A	7.4
DJM-500-3P	250	500	6	0.42	10A	11
DJM-600-3P	250	600	6	0.48	10A	11
DJM-800-3P	300	800	9	0.54	10A	16
DJM-1000-3P	360	1000	9	0.54	12A	16
DJM-1300-3P	600	1300	9	0.54	12A	22
