new design direct to roll leather,cheap leather uv printer with high quality

Name: new design direct to roll leather,cheap leather uv printer with high quality
Brand: Yueda
Price: USD $20,000 - 100,000 / Set

FOB Price

USD $20,000 - $100,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port FOB Shenzhen
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Plate Type:	Flatbed Printer	Place of Origin:	Guangdong, China
Brand Name:	Yueda	Model Number:	YD3200-KC leather uv printer	Usage:	Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, Other, Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, leather uv printer
Automatic Grade:	Automatic	Voltage:	110-220V 50*60HZ	Gross Power:	7500W
Dimensions(LWH):	450021001700mm	Weight:	1600KGS	Certification:	CE, SGS
After-sales Service Provided:	Overseas service center available

Product Description

new design direct to roll leather,cheap leather uv printer with high quality

Tips

Below is our factory video,pls check it,if you think this is best for you,pls contact Alia.whatsapp/wechat: 0086 13925228627

Website:

skype: alia_printer

/watch?v=xy4v0HyuxQY

Summary

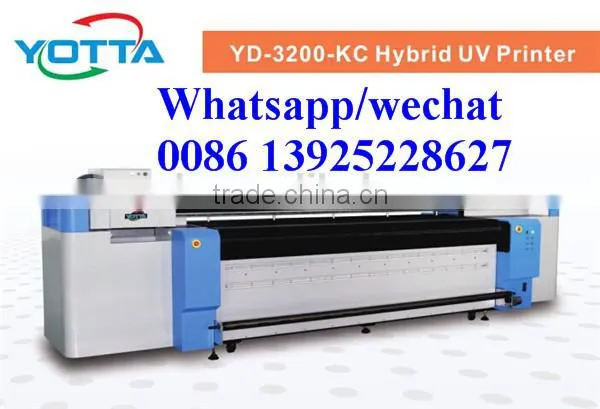

YD3200-KC hybrid UV Printer adopts original imported KM1024i(14pl) print head, and it can print onto super huge flex materials which maximum print width 3200mm and thickness within 50mm. The materials including paper, PVC, plastics, leather, film,PP, banner and so on. the print speed is fast and can achieve mass production.

Application fields:

Rigid materials:glass,ceramic,metal plate,wood,data plate.acrylic panel,KT board,PVC sheet,melamine sheet,marble board,etc.

Flexible materials: paper, PVC, plastics, leather, film,PP, banner,etc.

Feature

1. Internal heated industrial print head:

Brand new gray-scale degree KM1024i internal heated industrial print head, gray scale KM1024i (14pl 12kHz) industrial print head, YD3200-KC is widely used in printing industry like Large-scale outdoor advertising . Super slim and space-saving shape of the print head improves print quality and makes the printer design more exquisite. 4-8 pieces of KM1024i heads you can choose. The print resolution is high, the print speed is fast, the ink droplet is more concentrated and the colors are brighter.

The machine structure is reasonable, the whole steel frame structure adopt tempering treatment materials, stable and reliable, good toughness, high strength, wear-resisting, anti-collision anti-deformation, that protect the printers from deformation caused by the long distance transportation and shipping jounce.

Whole steel frame structure tempering treatment,which adopt dual guide rail steel frame structure,print head can be more steady, running can be more stable and faster.

4.Humanized automatic control design:

Adopts the single servo control of Y axis on both ends of the lead screw, that guarantee the synchronous movement of two lead screw.

Two UV LED lamps, the drying speed is faster and it can achieve bidirectional printing.

Two lead screw guide rail of Y axis, transmit stably, and Y axis motion more accurate, the print error less than 0.01mm.

	Anti-collision device: when the print head strikes the media, it will stop, and the print head as well as carriage can be protected.
Contact information	Alia whatsapp/wechat 0086 13925228627 Skype: alia_printer
	Emergency back-up power supply: When the power is turned off suddenly, the printer can still maintain the normal operation of negative pressure system, and it will be engaged in work quickly once the power is turned on. The 24 hours*7 days production can be achieved.
	Automatic measurement of media thickness:The printer automatically measure with senses distance nozzle and media, which eliminate the procedure that we measure thickness by ourselves. What's more, it saves our time and improves our work efficiency.
Contact information	Alia whatsapp/wechat 0086 13925228627 Skype: alia_printer

Specification

Printer model			YD3200-KC Alia Whatsapp/wechat:0086 13925228627
Print head			KM1024i
Number of head			4-8 pcs (Optional)
Print resolution			720*1440dpi
Print width			3.2 m
Media type			Rigid and flexible sheet
Print width			50 mm
Special ink			UV white ink
Print speed	High-speed mode	Single row 80 sqm/h;Double row 150sqm/h
	Normal mode	Single row 60sqm/h;Double row 110sqm/h
	High resolution mode	Single row 40 sqm/h Double row 70sqm/h
Application			Rigid material:glass,acrylic,wood,metal plate,PVC sheet,Corrugated board, reflective film, corrugated board. Flexible materials:leather,wall paper,advertising cloth,car sticker etc.
Ink type			Environmental UV curing ink(NO VOC)
Ink color			C,M,Y,K,LC,LM (Optional)
Image Format			PDF,JPEG,TIFF,EPS,AI etc
Printer weight			1600KG
Printer size			4.5m(length) × 2.1m(width) ×1.7m(height)
Power requirement			220VAC (±10%) Simplex printing,50 / 60 HZ, 7.5 KW (32A)
Working environment			Individual,clean,Low Dust,little sunshine,and Ventilated workshop, Environment temperature:18º~30º (64º~86º) relative humidity:30%~70%(Non-condensing)Ventilation: Recommended use overhead exhaust fan, exhaust 600 cfm

Applications

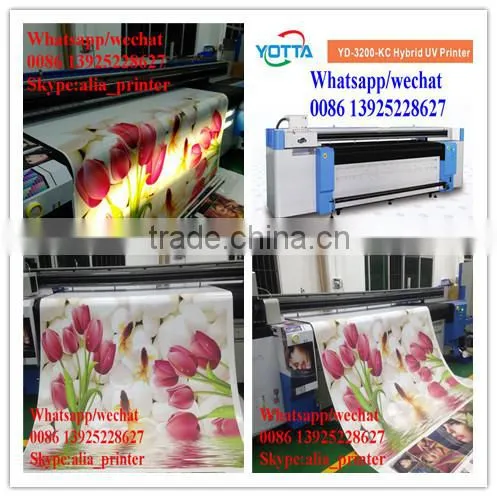

YD3200-KC Hybrid UV Printer printer printing good effect and more outstanding,welcome to visit our factory to see our actual printing effect.

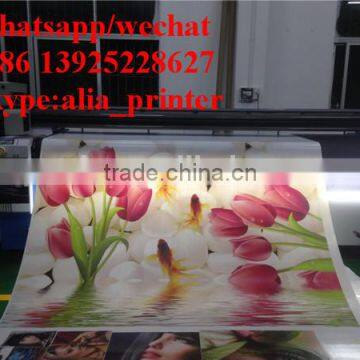

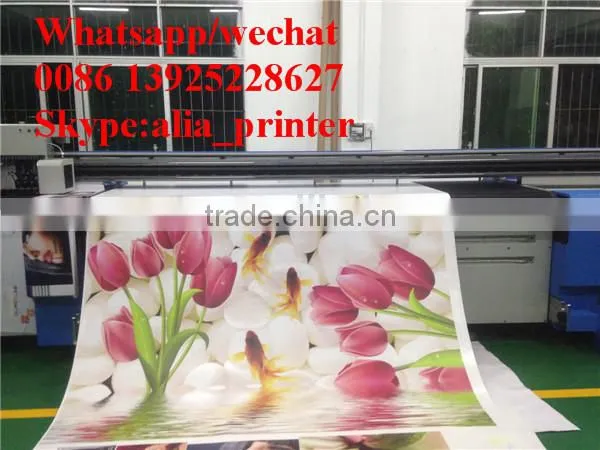

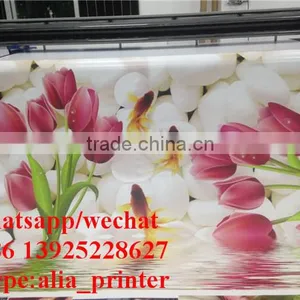

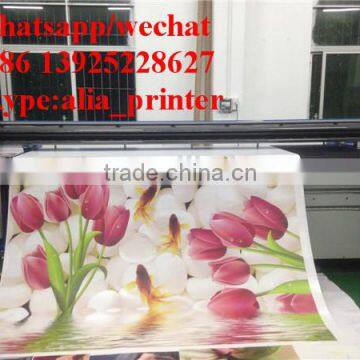

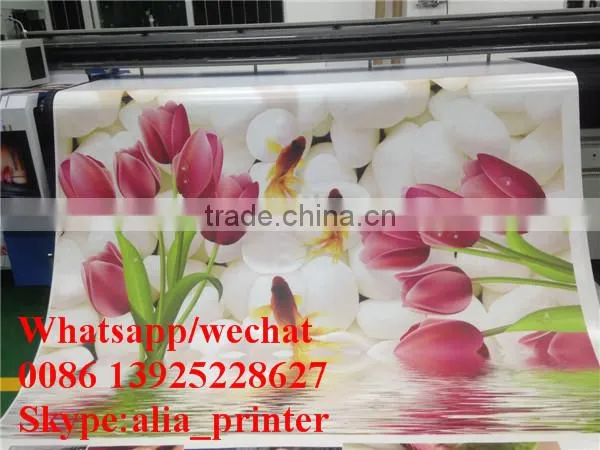

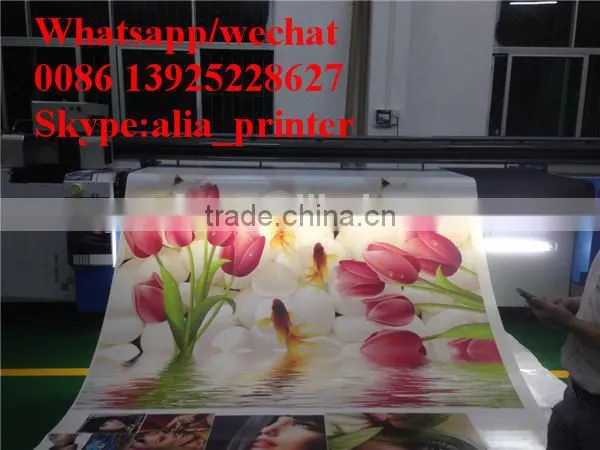

banner Printing sample

PVC printing sample

Certificate
