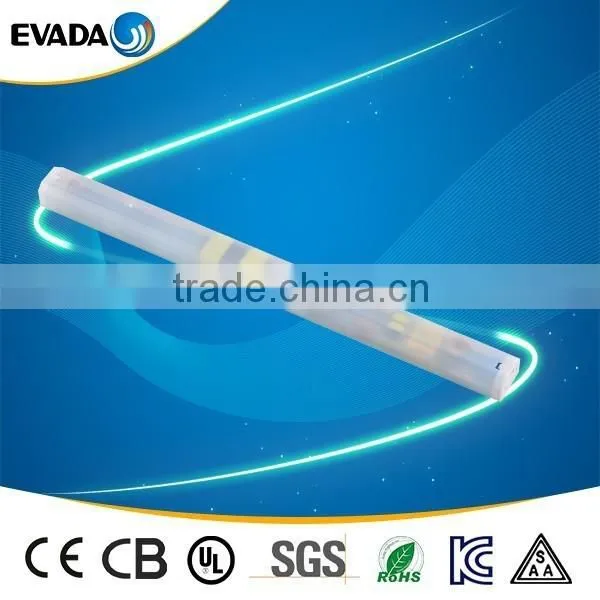

28W LED Driver Slim LED Driver With High Efficency
Negotiable
MOQ: 1000 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Evada
Model Number:
CUF-028-035-T
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mini Led Driver 350mA Constant Current, Mini Power Supply 12wNegotiableMOQ: 1000 Units -
dc to dc Driver 12wNegotiableMOQ: 1000 Units
-
dc Led Driver 12W 250ma dc to dc Power SupplyNegotiableMOQ: 1000 Pieces
-
Nice Silver White 70V 350mA 24W Led Light DriverNegotiableMOQ: 200 Units
-
Durable 3 Years Warranty 70V 350mA 24W Power Led DriversNegotiableMOQ: 200 Units
Place of Origin
Fujian, China
Brand Name
Evada
Model Number
CUF-028-035-T
Output Power
Other, 28W
Output Type
Single
Input Voltage
Other, 90-264V AC
Output Voltage
56-80V DC
Output Frequency
50Hz/60Hz
Output Current
350mA
Product Description
28W LED driver slim LED driver with high efficency
| Features : | |||
| 1.Universal AC input / Full range (90VAC to 264VAC) | |||
| 2.Protections: Overload / Over voltage /short circuit | |||
| 3.Built-in active PFC function | |||
| 4.Cooling by free air convection | |||
| 5.Compliance to worldwide safety regulations for lighting | |||
| 6.3 years warranty |
Specification
| MODEL | CUF-028-035-T | |||||||||
| OUTPUT | DC VOLTAGE | 80VDC | ||||||||
| CONSTANT CURRENT REGION | 56-80V DC | |||||||||
| RATED CURRENT | 350mA | |||||||||
| RATED POWER | 28W | |||||||||
| RIPPLE & NOISE (max.) | 1500mVp-p | |||||||||
| LINE REGULATION | ±3% | |||||||||
| LOAD REGULATION | ±3% | |||||||||
| SETUP, RISE TIME | 3000/80ms at full load 220VAC /176VAC | |||||||||
| INPUT | VOLTAGE RANGE | 90-264VAC | ||||||||
| FREQUENCY RANGE | 47-63Hz | |||||||||
| POWER FACTOR | PF≥0.98/110VAC PF≥0.95/220VAC | |||||||||
| EFFICIENCY (Typ.230Vac/50Hz) | ≥89% | |||||||||
| AC CURRENT | 0.2A / 110VAC 0.1A / 220VAC | |||||||||
| INRUSH CURRENT(max.) | <600mA | |||||||||
| PROTECTION | OVER CURRENT (Typ.) | 95 - 108% | ||||||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
| OVER VOLTAGE | 67-72VDC | |||||||||
| Protection type : Constant voltage limiting | ||||||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +55℃ @ full load ; +70℃ @ 60% load | ||||||||
| WORKING HUMIDITY | 20-95% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40~ +80℃, 10 ~95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃(0-50℃) | |||||||||
| VIBRATION | 10 - 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||
|
SAFETY & EMC |
SAFETY STANDARDS | UL1012 ; EN61347-1, EN61347-2-13 independent ; UL60950-1, TUV EN60950-1 (TBD) | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |||||||||
| SOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 ℃/ 70% RH | |||||||||
| EMI CONDUCTION & RADIATION | Compliance to EN55015, EN55022 (CISPR22) Class B | |||||||||
| HARMONIC CURRENT | Compliance to EN61000-3-2 Class C (≥75% load) ; EN61000-3-3 | |||||||||
| EMS IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61547, EN55024, light industry level (surge 4KV), criteria A | |||||||||
| OTHERS | MTBF | 30Khours. | ||||||||
| DIMENSION | L220*W17*H12mm | |||||||||
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. | |||||||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | ||||||||||
|
3. Constant current operation region is within 75% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design. 4. Safety and EMC design refer to EN60598-1, subject 8750(UL), CNS15233, GB7000.1, FCC part18. | ||||||||||
Other items
| CUF-027W LED Tube Lights Driver (Output Current/Voltage are customizable) | ||||||||
| Item No. |
Input Voltage |
Output Voltage |
Output Current |
Output Power |
THD |
Power factor |
Efficiency |
Size L*W*H mm |
| CUF-027-035-T | 90-264V AC | 54-78V DC | 350mA | 27W | ≤20% | ≥0.95 | 87% | 220*17*12 |
| CUF-027-050-T | 90-264V AC | 38-54V DC | 500mA | 27W | ≤20% | ≥0.95 | 87% | 220*17*12 |
| CUF-027-063-T | 90-264V AC | 30-42Vdc | 630mA | 27W | ≤20% | ≥0.95 | 87% | 220*17*12 |
slim led driver
