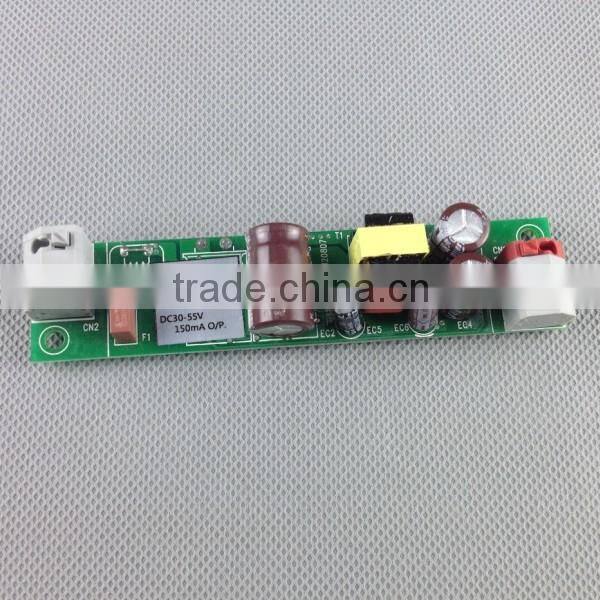

DC-DC LED Power Supply Input 12V/24V

Name: DC-DC LED Power Supply Input 12V/24V
Brand: EVADA
SKU: 113484989
Availability: InStock

Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

EVADA

Model Number:

DC-009-015

Xiamen Evada Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

XIAMEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name EVADA

Model Number DC-009-015

Output Power 1 - 50W

Output Type Single

Input Voltage Other, 12/24V

Output Voltage 30-55Vdc

Output Frequency 50/60Hz

Output Current 150mA

DC-DC LED Power Supply Input 12V/24V

MODEL		DC-009-015
OUTPUT	DC VOLTAGE	30-55V
	RATED CURRENT	150mA
	RATED POWER	10W(MAX)
	Ripple of Current	<1%,
	VOLTAGE TOLERANCE	10%
	LOAD REGULATION	±2.0%
INPUT	VOLTAGE RANGE	90-264Vac
	FREQUENCY RANGE	47~63Hz
	POWER FACTOR	PF≥0.90
	EFFICIENCY(Typ.)	83%
	AC CURRENT	0.15A Max
PROTECTION	OVER CURRENT	±5% rated output current
	OVER CURRENT	Protection type: Constant current limiting
	SHORT CIRCUIT	Hiccup mode
	Over temperature	Protection type: Shut down o/p voltage, re-power on to recover.
ENVIRONMENT	WORKING TEMP.	-30°C~+70°C
	WORKING HUMIDITY	10%RH~100%RH non-condensing
	STORAGE TEMP., HUMIDITY	-40°C~+80°C10~95%RH
SAFETY& EMC	SAFETY STANDARDS	IEC/EN60598;IEC/EN61347;CB
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC
	EMC	EN55015/EN61547/EN61000
OTHERS	IP RATING	IP40
	MTBF	60000Hours
	DIMENSION	1102518mm(LWH)
	PACKING	80g/pc; 100pcs/ctn
