Specifications
Turn key hose Clamp1.No need of tool
2.Comply with Germany standard DIN3017
3.Non-Perforated band
4.Color grip

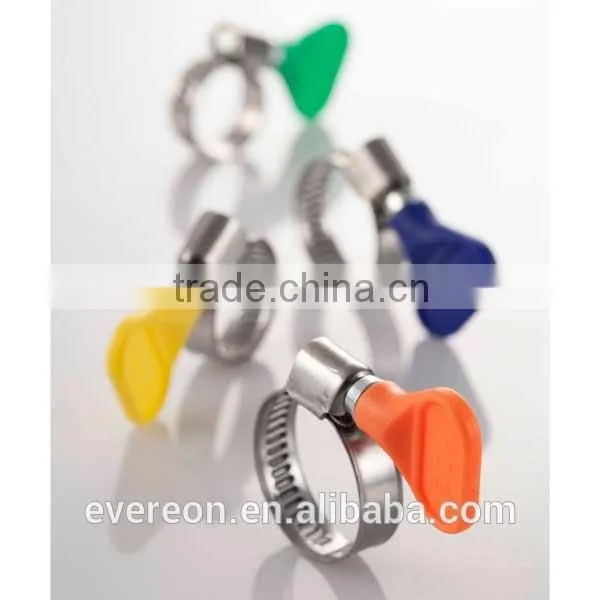

Turn key hose clamp
Band Width:
9mm
Material:
W2 (AISI430S.S): Band & Housing are made of AISI430Stainless Steel, but Screw is Galvanized with Cr3+ coating,
the most popular choice.
Application:
W2 (AISI430S.S): Hardware, Home DIY, Garden, low applying of the corrosion resistance.
For Low pressure requested only.
Clamp Range (Size, Diameter) | Part Number | ||||||
Band Width | Min. (mm) | Max. (mm) | Min. (in) | Max. (in) | W2 (430S.S.) | W4 (304S.S.) | W5 |
1.5-2.5 Nm | - | - | |||||
9 mm | 8 | 12 | 5/16 | 1/2 | Y123-09W012 | - | - |
10 | 16 | 3/8 | 5/8 | Y123-09W016 | - | - | |
12 | 20 | 15/32 | 3/4 | Y123-09W020 | - | - | |
12 | 22 | 15/32 | 7/8 | Y123-09W022 | - | - | |
16 | 25 | 5/8 | 1 | Y123-09W025 | - | - | |
16 | 27 | 5/8 | 1-1/16 | Y123-09W027 | - | - | |
20 | 32 | 25/32 | 1-1/4 | Y123-09W032 | - | - | |
25 | 40 | 1 | 1-9/16 | Y123-09W040 | - | - | |
30 | 45 | 1-3/16 | 1-3/4 | Y123-09W045 | - | - | |
32 | 50 | 1-1/4 | 2 | Y123-09W050 | - | - | |
40 | 60 | 1-9/16 | 2-3/8 | Y123-09W060 | - | - | |

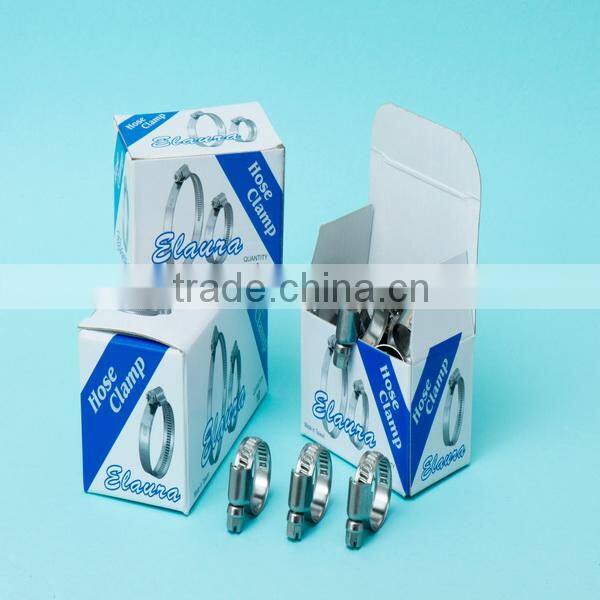

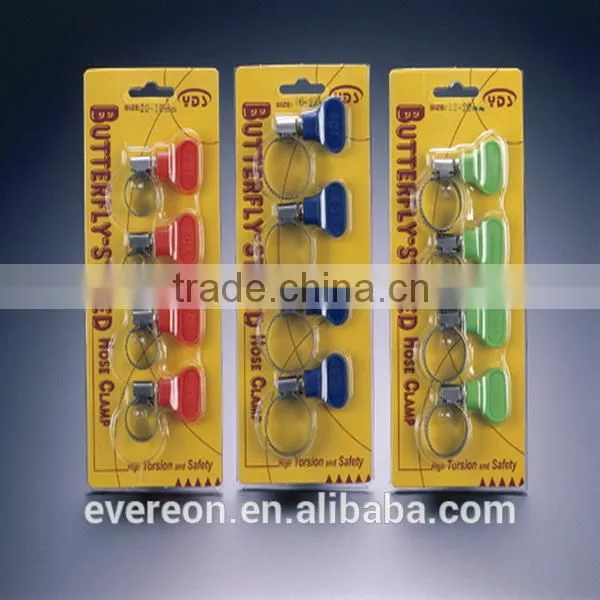

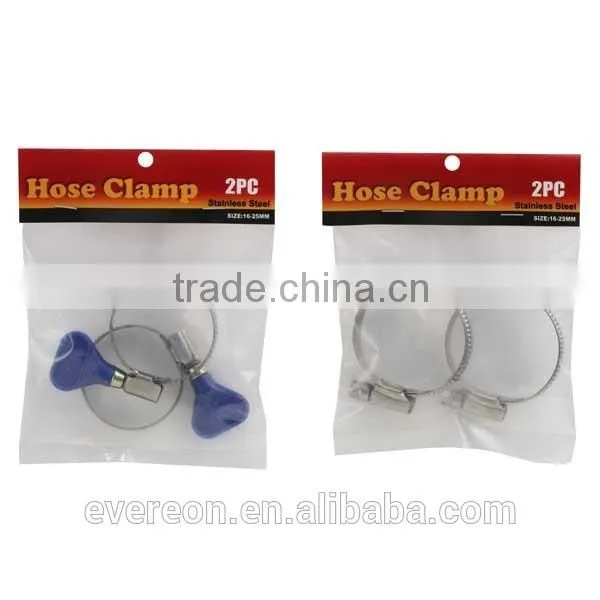

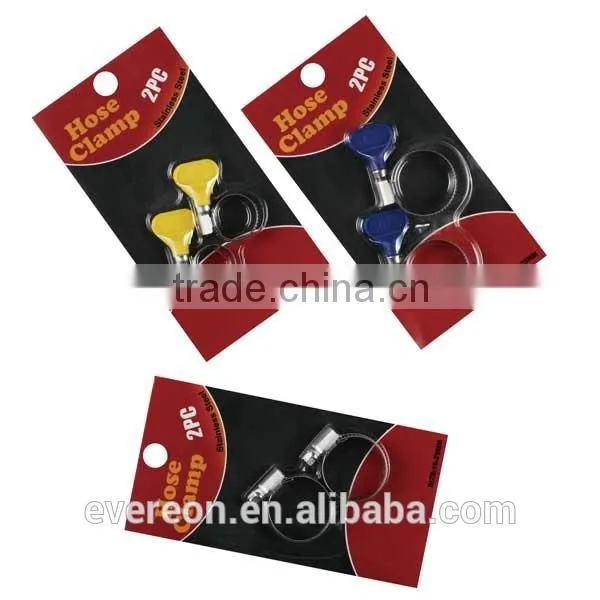

Inner box or blister card , we supply varied packaging for different requirement.

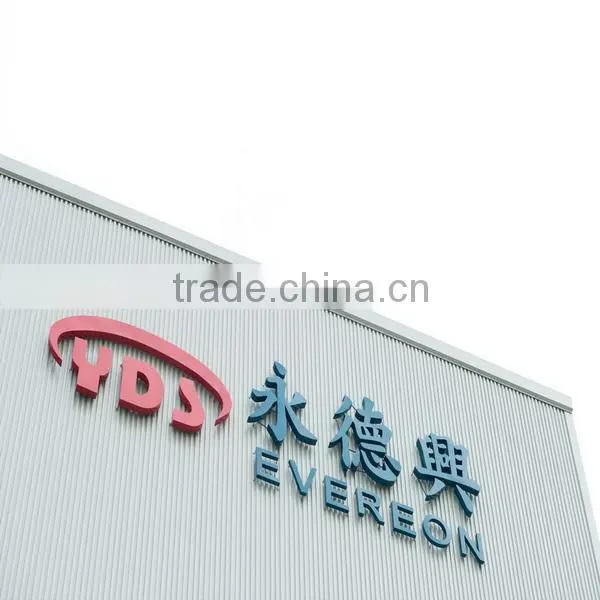

EVEREON INDUSTRIES,INC established in 1993, our factory is located in Taichung with 3000 square meters. We are the professional mold producer at the primary stage, and our outstanding mold products win a great reputation. After devoting our attention to the research and development for several years, we succeed in developing “ German zebra hose (pipe) clamps” in 2000 then became the pioneer factory of producing German hose clamps.
At present, our product has been selling worldwide, and our clamps are mainly exported market to Europe and Asia. Reasonable price and high-end quality product caused us grow up day after day. We both own the R & D department and manufacturing department. Thus we can fulfill all your need embrace new or original items.
Quality products , Stable production , Short leadtime, Satisfied after service
