Home > Lights & Lighting > LED Interior Lighting > LED Tube > Practical and Durable 600mA 36V 22W Led Tube Driver
Negotiable
MOQ: 200 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Warranty(Years):
3
Input Voltage(V):
36
Lamp Power(W):
22
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Constant Current 480ma Led Tube Internal DriverNegotiableMOQ: 500 Units -
Made in China High Quality t8 Led Driver 300mA 72V 22WNegotiableMOQ: 200 Units
-
Isolated T8 LED Tube Driver 25W 700mA With PFC 0.95NegotiableMOQ: 1000 Pieces
-
T8 Led Tube Drivers CE Certification LED Power SupplyNegotiableMOQ: 1000 Pieces
-
Isolated High PFC T8 Led Driver for Led School SupplyNegotiableMOQ: 1000 Pieces
Warranty(Years)
3
Input Voltage(V)
36
Lamp Power(W)
22
Color Temperature(CCT)
Warm White
Working Temperature(℃)
-30, +55
Working Lifetime(Hour)
30000
Certification
CE, SAA, UL
Place of Origin
Fujian, China
Brand Name
Evada
Model Number
T8
Product Description

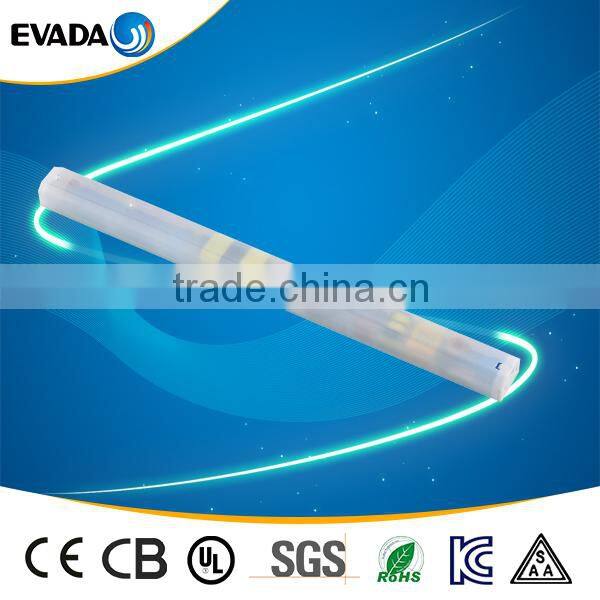

Practical and durable 600mA 36V 22W led tube driver
| Features : | |||
| 1.Universal AC input / Full range (90VAC to 264VAC) | |||
| 2.Protections: Overload / Over voltage /short circuit | |||
| 3.Built-in active PFC function | |||
| 4.Cooling by free air convection | |||
| 5.Compliance to worldwide safety regulations for lighting | |||
| 6.3 years warranty |
SPECIFICATION
| MODEL | CUF-022-060-T8 | |||||||||
| OUTPUT | DC VOLTAGE | 36VDC | ||||||||
| CONSTANT CURRENT REGION | 25-36VDC | |||||||||
| RATED CURRENT | 600mA | |||||||||
| RATED POWER | 22W | |||||||||
| RIPPLE & NOISE (max.) | 760mVp-p | |||||||||
| LINE REGULATION | ±3% | |||||||||
| LOAD REGULATION | ±3% | |||||||||
| SETUP, RISE TIME | 3000/80ms at full load 220VAC /176VAC | |||||||||
| INPUT | VOLTAGE RANGE | 90-264VAC | ||||||||
| FREQUENCY RANGE | 47-63Hz | |||||||||
| POWER FACTOR | PF≥0.98/110VAC PF≥0.95/220VAC | |||||||||
| EFFICIENCY (Typ.230Vac/50Hz) | ≥88% | |||||||||
| AC CURRENT | 0.2A / 110VAC 0.1A / 220VAC | |||||||||
| INRUSH CURRENT(max.) | <600mA | |||||||||
| PROTECTION | OVER CURRENT (Typ.) | 95 - 108% | ||||||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
| OVER VOLTAGE | 40-45VDC | |||||||||
| Protection type : Constant voltage limiting | ||||||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +55℃ @ full load ; +70℃ @ 60% load | ||||||||
| WORKING HUMIDITY | 20-95% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40~ +80℃, 10 ~95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃(0-50℃) | |||||||||
| VIBRATION | 10 - 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||
| SAFETY & EMC | SAFETY STANDARDS | UL1012 ; EN61347-1, EN61347-2-13 independent ; UL60950-1, TUV EN60950-1 (TBD) | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |||||||||
| SOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 ℃/ 70% RH | |||||||||
| EMI CONDUCTION & RADIATION | Compliance to EN55015, EN55022 (CISPR22) Class B | |||||||||
| HARMONIC CURRENT | Compliance to EN61000-3-2 Class C (≥75% load) ; EN61000-3-3 | |||||||||
| EMS IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61547, EN55024, light industry level (surge 4KV), criteria A | |||||||||
| OTHERS | MTBF | 30Khours. | ||||||||
| DIMENSION | L220*W17*H12mm | |||||||||
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. | |||||||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | ||||||||||
3. Constant current operation region is within 75% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design. 4. Safety and EMC design refer to EN60598-1, subject 8750(UL), CNS15233, GB7000.1, FCC part18. | ||||||||||
