Internal Led Driver, Open Frame Led Driver,current Constant Driver
Negotiable
MOQ: 100 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Evada
Model Number:
CUF-018-035-T
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Power Supply Manufacturer Led Tube Internal Driver 25W 480mANegotiableMOQ: 500 Units -
32W LED Tube External Power Drivers, Can Easily Drive up to Two Pieces of T8NegotiableMOQ: 200 Pieces
-
Practical and Durable 600mA 36V 22W Led Tube DriverNegotiableMOQ: 200 Units
-
Constant Current 480ma Led Tube Internal DriverNegotiableMOQ: 500 Units
-
Made in China High Quality t8 Led Driver 300mA 72V 22WNegotiableMOQ: 200 Units
Place of Origin
Fujian, China
Brand Name
Evada
Model Number
CUF-018-035-T
Output Power
Other, 18W
Output Type
Single
Input Voltage
Other, 90-264V AC
Output Voltage
37-52V DC
Output Frequency
50Hz/60Hz
Output Current
350mA

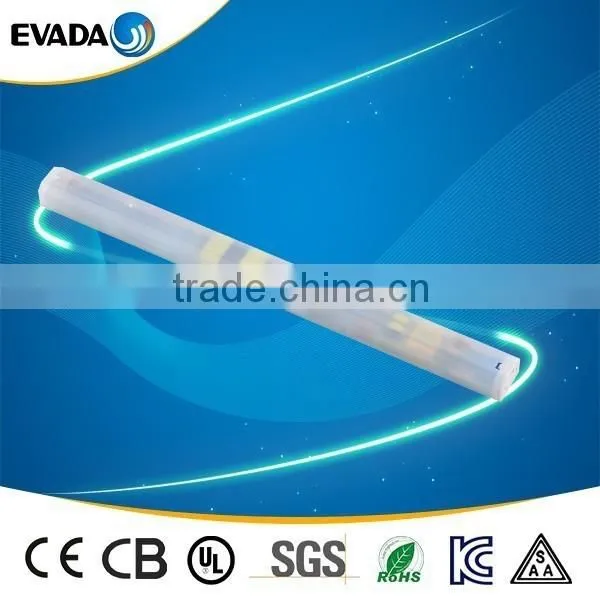

Internal Led Driver, open frame led driver,current constant driver
EVADA is a manufacturer which can make custom designed. Welcome OEM/ODM.

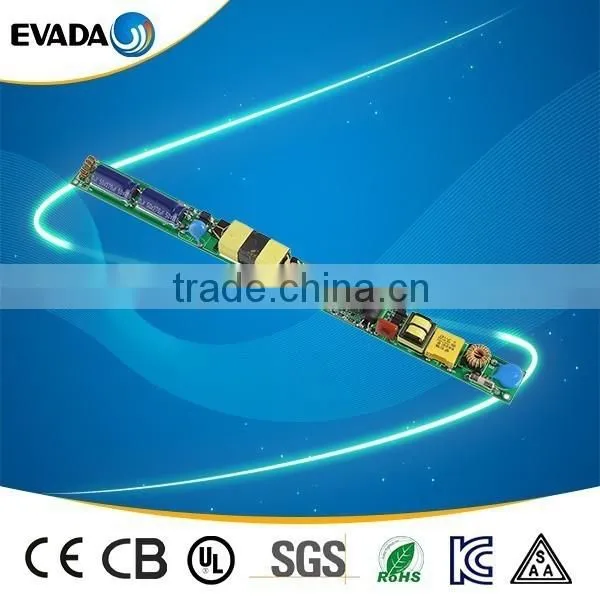

Built in isolated constant current power supply which is specially designed for T5/T8 LED Tubes.
- T8 led tube driver,18-22w
- Input :90-240VAC;
- The output voltage can be adjusted according to the customer;
- Output current can be adjusted according to the customer;
- Can meet 60CM TUBE ,120CM TUBE ,150CM TUBE ;
- Single-channel current output;
- Output open circuit, short circuit protection, over voltage, over-current protection;
- Dielectric Strength: 3000 V;
- Low leakage current: less than 1mA;
- Input surge current prevention;
Max Output Power | 25W |
Input Voltage | AC90-264V |
Output Voltage | DC25-42V |
Max output Current | 600mA |
Efficiency | 87% |
Power Factor | 0.95 |
Dimension(mm) | 100*16*10mm |
MTBF(Ta=25°C) | 60000Hrs |
Warranty Time | 2 years |
Protection | OCP, OVP, SCP |
Working Temperature | -36~+50°C |
Voltage Tolerance | ± 5% |
Working Humidity | 10% ~ 90% |
open frame led driver
