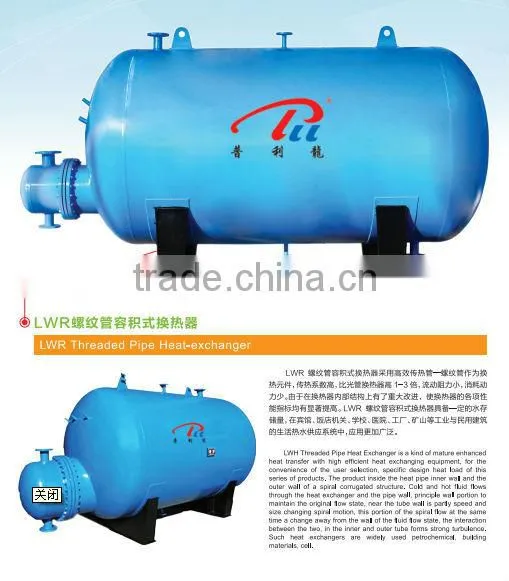

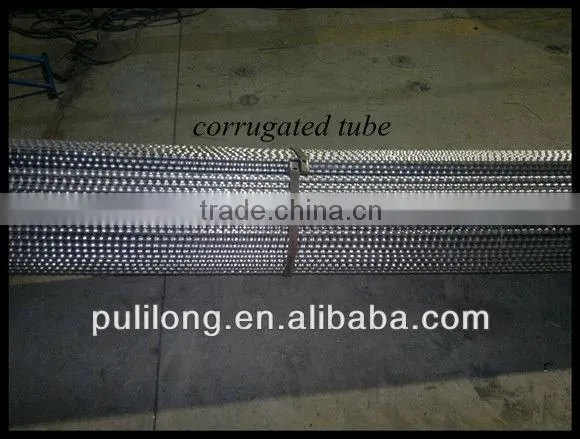

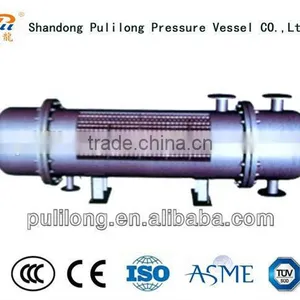

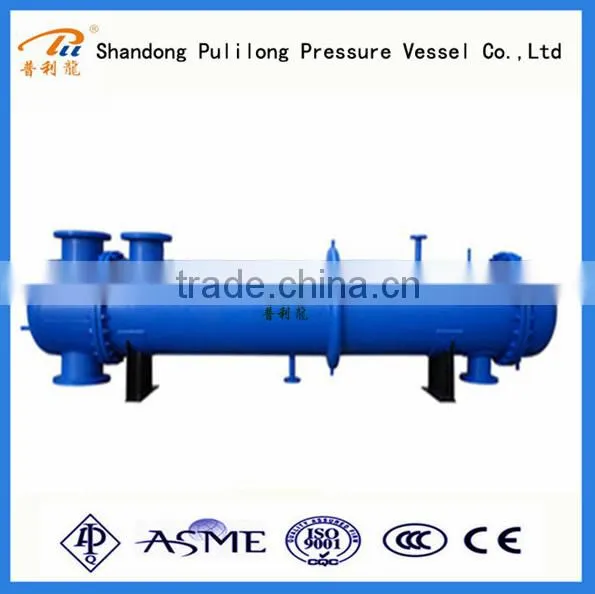

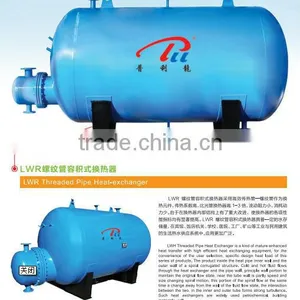

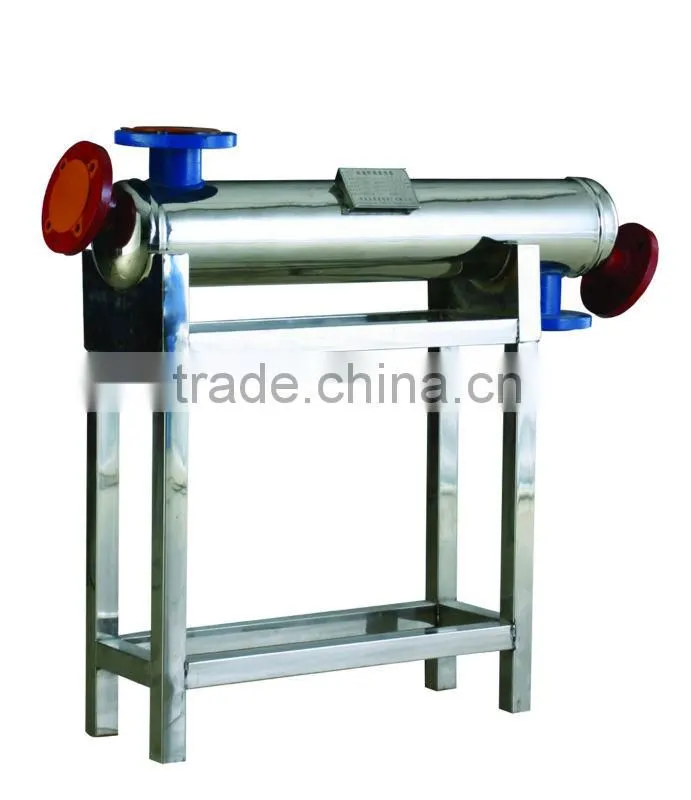

corrugated tube heat exchanger
vortex hot film heat exchanger membrane vortex hot film heat transfer using the latest technology, to increase the heat transfer effect by changing the fluid motion state, when the medium through the vortex tube surface, powerful flush the pipe surface, thus improve the thermal efficiency. Up to 10000 °C w/m2. At the same time the structure to achieve the corrosion resistance, resistance to high temperature, high pressure, anti scaling function. Other types of heat exchanger fluid channel as fixed direction flow form, formed on the surface of heat exchange tube flow around, convective heat transfer coefficient decrease.
Advantages:
1,save energy and time
2, this product can be reduce 70% energy than normal original equipment
3,All stainless steel, long service life, can reach more than 20 years
4,Fast heat exchange and resistance to high temperature (400 °C), high voltage (4.0 MPa), (up to 10.0 MPa)
5,Flexible design, complete specifications, and practical pertinence, save money
| item | model | cool medium | hot medium | steam pressure | heat exchanger | flow capacity of steam | water capacity | shell side pressure less |
| inlet temperature | outlet temperature | MW/ 104Kcal/h |
||||||
| °C | °C | Mpa | t/h | t/h | Mpa | |||
| 1 | WMH-QS-159-1.5 | 70 | 95 | 0.1 | 0.16/13.5 | 0.24 | 5.4 | <0.07 |
| 2 | WMH-QS-159-3.0 | 70 | 95 | 0.1 | 0.32/27 | 0.45 | 10.8 | <0.07 |
| 3 | WMH-QS-219-4.8 | 70 | 95 | 0.1 | 0.5/43.2 | 0.72 | 17.3 | <0.07 |
| 4 | WMH-QS-273-7.2 | 70 | 95 | 0.1 | 0.76/64.8 | 1.08 | 26 | <0.07 |
| 5 | WMH-QS-273-9.6 | 70 | 95 | 0.1 | 1.0/86.4 | 1.44 | 34.6 | <0.07 |
| 6 | WMH-QS-325-12 | 70 | 95 | 0.1 | 1.26/108 | 1.8 | 43.2 | <0.07 |
| 7 | WMH-QS-325-15 | 70 | 95 | 0.1 | 1.58/135 | 2.25 | 44 | <0.07 |
| 8 | WMH-QS-325-18 | 70 | 95 | 0.1 | 1.89/162 | 2.7 | 64.8 | <0.07 |
| 9 | WMH-QS-377-21 | 70 | 95 | 0.1 | 2.2/189 | 3.15 | 75.6 | <0.07 |
| 10 | WMH-QS-377-27 | 70 | 95 | 0.1 | 2.84-243 | 4.05 | 97.2 | <0.07 |
| 11 | WMH-QS-400-33 | 70 | 95 | 0.1 | 3.47/297 | 5 | 120 | <0.07 |
| 12 | WMH-QS-500-42 | 70 | 95 | 0.1 | 4.41/378 | 6.3 | 151 | <0.07 |
1.Wooden box packaging:
2.PE film packaging:
1.PAYMENT TERMS:
T/T, 30% DEPOSIT PAY IN ADVANCE; 70% BALANCED PAYED BEFORE SHIPMENT.
2.Delivery time:
25 working days after receiving the deposit.
Contact: Ms. Tina Xu
Skype: tina54055
Mobile: +86 18396857909

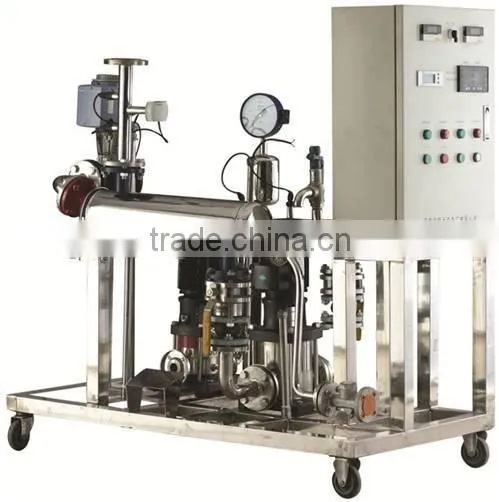

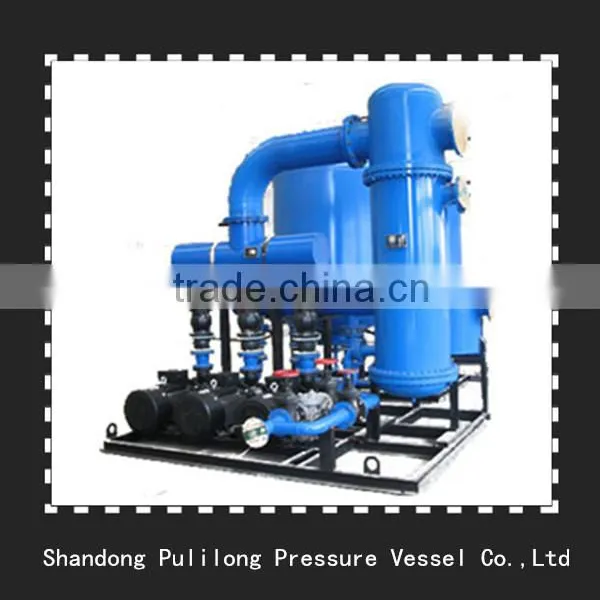

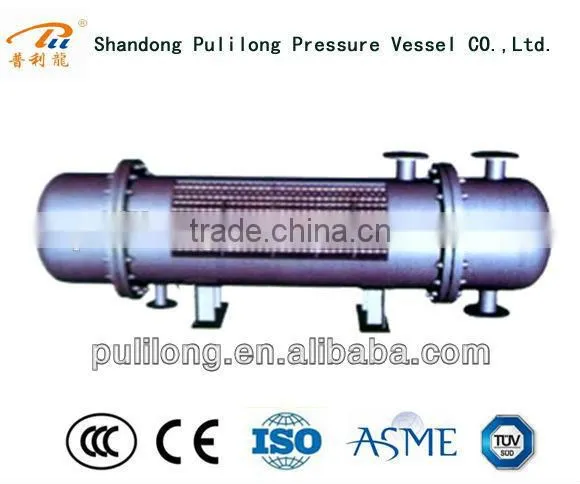

Our products:

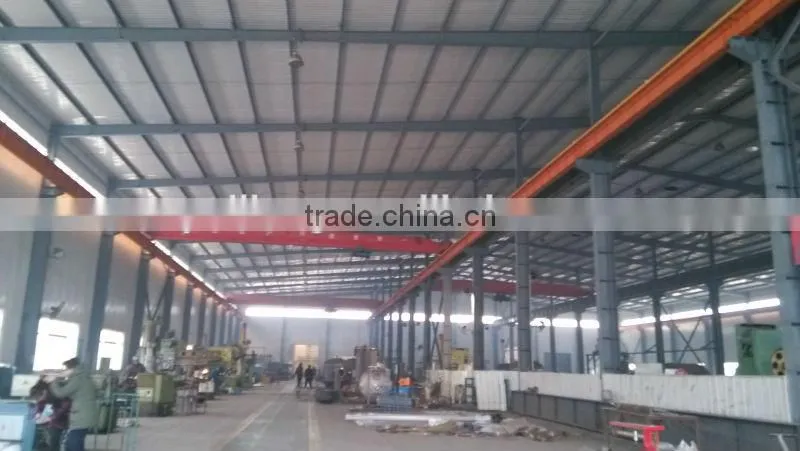

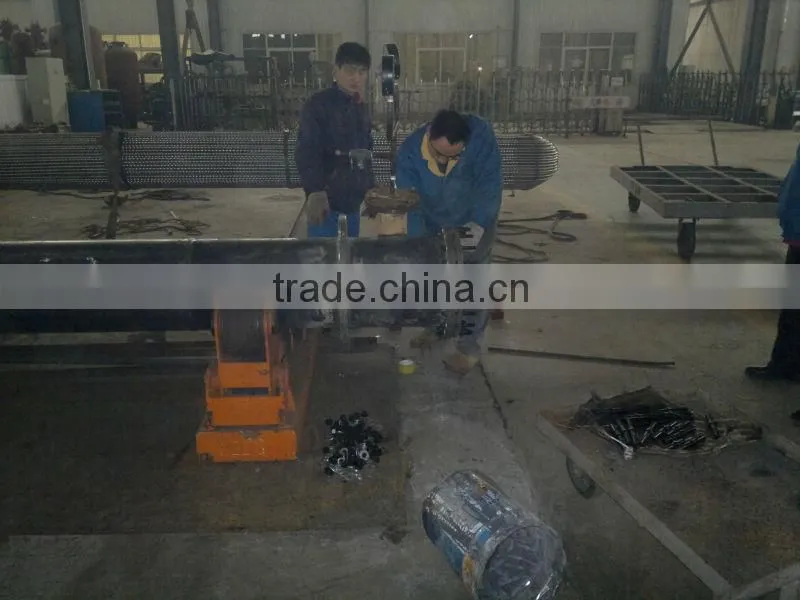

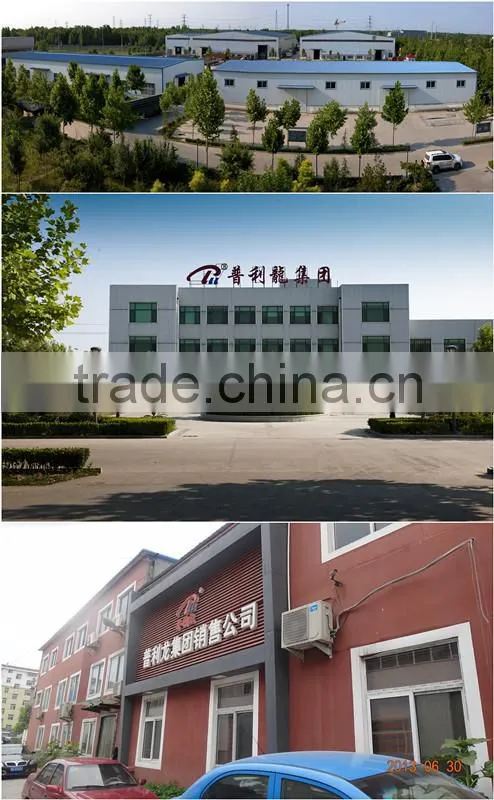

Our factory:
