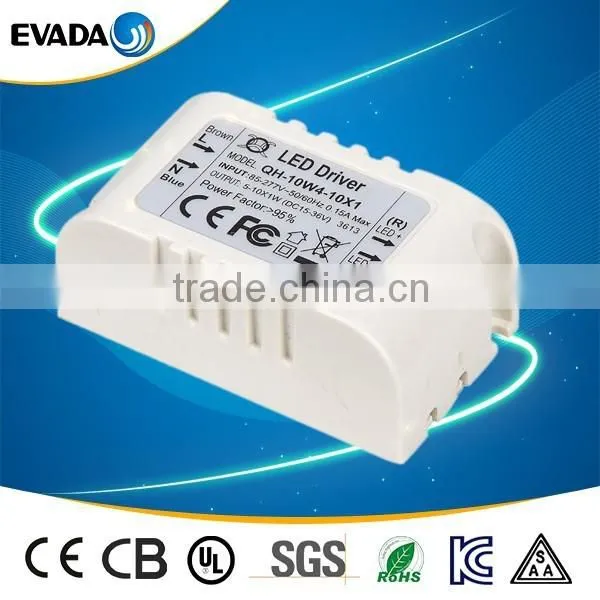

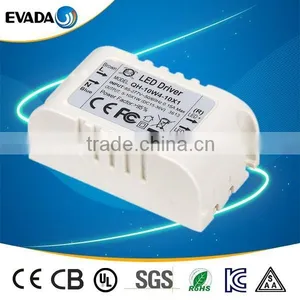

Led Driver Wholesale Small Led Driver 32w Led Driver
Negotiable
MOQ: 500 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Evada
Model Number:
CUF-032-016-EC4
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
500ma Led Driver Plastic Case IP40 16w Power Supply Plastic CaseNegotiableMOQ: 500 Units -
1-50w ac 220v Led Lamp Driver Constant Current Led Driver 15wNegotiableMOQ: 500 Units
-
Steady CE Approved 20w Led Drive Power SupplyNegotiableMOQ: 500 Units
-
300ma Constant Current Led Drivers Driver Led 15wNegotiableMOQ: 500 Units
-
Constant Current Led Light Led Driver 120WNegotiableMOQ: 500 Units
Place of Origin
Fujian, China
Brand Name
Evada
Model Number
CUF-032-016-EC4
Output Power
Other, 32W
Output Type
Single
Input Voltage
Other, 90-264VAC
Output Voltage
110-210VAC
Output Frequency
50Hz/60Hz
Output Current
160mA
Product Description
led driver wholesale small led driver 32w led driver
| Features : | ||
| 1.Universal AC input / Full range (90VAC to 264VAC) | ||
| 2.Protections: Overload / Over voltage | ||
| 3.Cooling by free air convection | ||
| 4.Suitable for LED lighting and moving sign applications | ||
| 5.IP20 design for indoor or outdoor installations | ||
| 6.3 years warranty |
Specification
| MODEL | CUF-032-016-EC4 | |||||||||
| OUTPUT | DC VOLTAGE | 210VDC | ||||||||
| CONSTANT CURRENT REGION | 110-210VDC | |||||||||
| RATED CURRENT | 160mA | |||||||||
| RATED POWER | 32W | |||||||||
| RIPPLE & NOISE (max.) | 200mVp-vp | |||||||||
| LINE REGULATION | ±3% | |||||||||
| LOAD REGULATION | ±3% | |||||||||
| SETUP, RISE TIME | 1000ms, 80ms at full load 220VAC /176VAC | |||||||||
| INPUT | VOLTAGE RANGE | 90-264VAC | ||||||||
| FREQUENCY RANGE | 47-63Hz | |||||||||
| POWER FACTOR | PF≥0.86/176VAC PF≥0.85/220VAC | |||||||||
| EFFICIENCY (Typ.230Vac/50Hz) | ≥84% | |||||||||
| AC CURRENT | 0.06A / 176VAC 0.05A / 220VAC | |||||||||
| INRUSH CURRENT(max.) | COLD START 6A/230VAC | |||||||||
| PROTECTION | OVER CURRENT (Typ.) | 95 - 108% | ||||||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
| OVER VOLTAGE | 53-42V | |||||||||
| Protection type : Constant voltage limiting | ||||||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +55℃ @ full load ; +70℃ @ 60% load | ||||||||
| WORKING HUMIDITY | 20-95% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40~ +80℃, 10 ~95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃(0-50℃) | |||||||||
| VIBRATION | 10 - 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||
| SAFETY & EMC |
SAFETY STANDARDS | UL1012 ; EN61347-1, EN61347-2-13 independent ; UL60950-1, TUV EN60950-1 (TBD) | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |||||||||
| SOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 ℃/ 70% RH | |||||||||
| EMI CONDUCTION & RADIATION | Compliance to EN55015, EN55022 (CISPR22) Class B | |||||||||
| HARMONIC CURRENT | Compliance to EN61000-3-2 Class C (≥75% load) ; EN61000-3-3 | |||||||||
| EMS IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61547, EN55024, light industry level (surge 4KV), criteria A | |||||||||
| OTHERS | MTBF | 30Khours. | ||||||||
| DIMENSION | L57.8*W40*H28mm | |||||||||
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. | |||||||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | ||||||||||
|
3. Constant current operation region is within 75% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design. 4. Safety and EMC design refer to EN60598-1, subject 8750(UL), CNS15233, GB7000.1, FCC part18. | ||||||||||
Other items
| EC4 LED Driver (Output Current/Voltage are customizable) | |||||||
| Item No. | Input Voltage | Output Voltage | Output Current | Output Power | Efficiency | IP rate |
Size L*W*H mm |
| CUF-005-015-EC4 | 90~264Vac | 20-30V | 150mA | 5W | 89% | IP20 | 57.8*40*28 |
| CUF-007-015-EC4 | 90~264Vac | 30-45VDC | 150mA | 7W | 89% | IP20 | 57.8*40*28 |
| CUF-010-030-EC4 | 90~264Vac | 36VDC | 300mA | 10W | 89% | IP20 | 57.8*40*28 |
small led driver
