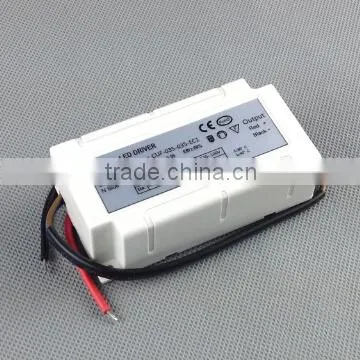

20W 350mA Plastic Case LED Driver/Power Supply 220Vac With Low THD

Name: 20W 350mA Plastic Case LED Driver/Power Supply 220Vac With Low THD
Brand: Evada
SKU: 113482355
Availability: InStock

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

Evada

Model Number:

CUF-020-035-EC1

Xiamen Evada Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name Evada

Model Number CUF-020-035-EC1

Output Power 1 - 50W

Output Type Single

Input Voltage Other, 90-264Vac

Output Voltage 40-58Vdc

Output Frequency 47-63Hz

Output Current 350mA

20W 350mA Plastic Case LED Driver/Power Supply 220Vac with Low THD

Features:

1.AC input voltage: 176-264VAC.

2.DC output voltage: 40-58Vdc.

3.Power Factor: >0.92.

4.Soft switch technology: Efficiency>88%.

5.Protect Function: Short circuit, Surges, Lightning, Overload, Over-temperature, Output over-voltage.

6.IP rating: IP67.

7.Dimensions: 85*45*25mm

8.Net Weight: 90g/pc

MODEL		CUF-020-035-EC1
OUTPUT	DC VOLTAGE	40-58V
	CONSTANT CURRENT REGION	40-58Vdc
	RATED CURRENT	350mA
	RATED POWER	20W
	RIPPLE & NOISE	±4%
	VOLTAGE TOLERANCE	10%
	LOAD REGULATION	±2.0%
INPUT	VOLTAGE RANGE	90-150VAC,176-264Vac
	FREQUENCY RANGE	47~63Hz
	POWER FACTOR	PF≥0.92
	EFFICIENCY(Typ.)	88%
	AC CURRENT	0.65A Max
PROTECTION	OVER CURRENT	±5% rated output current
	OVER CURRENT	Protection type: Constant current limiting
	SHORT CIRCUIT	Hiccup mode
	Over temperature	Protection type: Shut down o/p voltage, re-power on to recover.
ENVIRONMENT	WORKING TEMP.	-30°C~+70°C
	WORKING HUMIDITY	10%RH~100%RH non-condensing
	STORAGE TEMP., HUMIDITY	-40°C~+80°C10~95%RH
SAFETY& EMC	SAFETY STANDARDS	IEC/EN60598;IEC/EN61347;CB
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC
	EMC	EN55015/EN61547/EN61000
OTHERS	IP RATING	IP44
	MTBF	60000Hours
	DIMENSION	854525mm(LWH)
	PACKING	90G/pc;
