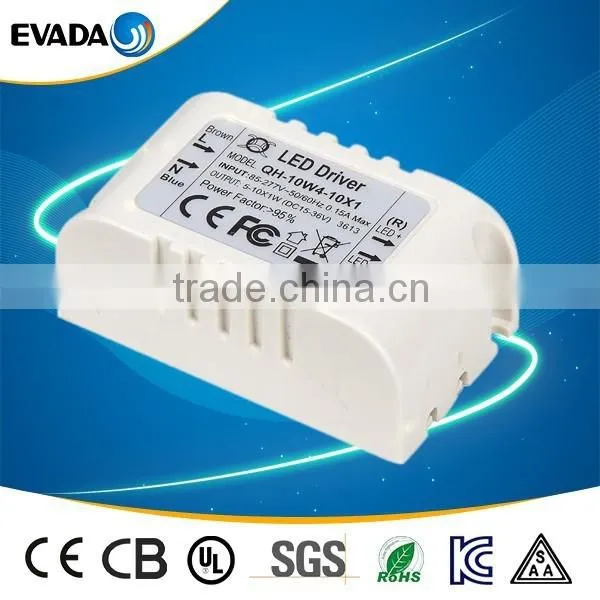

Practical and Durable 36v Led Power Supply
Negotiable
MOQ: 200 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Evada
Model Number:
CHF-010-030-EC4
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Single Output 280VDC 42W IP40 Led Driver Plastic CaseNegotiableMOQ: 200 Units -
Fully Isolated Plastic Case 42w 42VDC Led Driver PowerNegotiableMOQ: 200 Units
-
Fully Isolated Plastic Case High PFC Led Driver 56vNegotiableMOQ: 200 Units
-
External Driver Led Tube 600ma Led DriverNegotiableMOQ: 500 Units
-
Factory Direct Sale Single Output Type 42w Led Driver 70vNegotiableMOQ: 200 Units
Place of Origin
Fujian, China
Brand Name
Evada
Model Number
CHF-010-030-EC4
Output Power
1 - 50W
Output Type
Single
Input Voltage
Other, 90~264Vac
Output Voltage
36VDC
Output Frequency
50-60Hz
Output Current
300mA
Product Description
Practical and durable 36v led power supply
| Features : | ||
| 1.Universal AC input / Full range (90VAC to 264VAC) | ||
| 2.Protections: Overload / Over voltage | ||
| 3.Cooling by free air convection | ||
| 4.Suitable for LED lighting and moving sign applications | ||
| 5.IP20 design for indoor or outdoor installations | ||
| 6.3 years warranty |
SPECIFICATION
| MODEL | CUF-007-030-EC4 | |||||||||
| OUTPUT | DC VOLTAGE | 36VDC | ||||||||
| CONSTANT CURRENT REGION | 28-36VDC | |||||||||
| RATED CURRENT | 300mA | |||||||||
| RATED POWER | 10W | |||||||||
| RIPPLE & NOISE (max.) | 300mVp-vp | |||||||||
| LINE REGULATION | ±3% | |||||||||
| LOAD REGULATION | ±3% | |||||||||
| SETUP, RISE TIME | 1000ms, 80ms at full load 220VAC /176VAC | |||||||||
| INPUT | VOLTAGE RANGE | 90-264VAC | ||||||||
| FREQUENCY RANGE | 47-63Hz | |||||||||
| POWER FACTOR | PF≥0.86/176VAC PF≥0.85/220VAC | |||||||||
| EFFICIENCY (Typ.230Vac/50Hz) | ≥85% | |||||||||
| AC CURRENT | 0.06A / 176VAC 0.05A / 220VAC | |||||||||
| INRUSH CURRENT(max.) | COLD START 6A/230VAC | |||||||||
| PROTECTION | OVER CURRENT (Typ.) | 95 - 108% | ||||||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
| OVER VOLTAGE | 38-45VDC | |||||||||
| Protection type : Constant voltage limiting | ||||||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +55℃ @ full load ; +70℃ @ 60% load | ||||||||
| WORKING HUMIDITY | 20-95% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40~ +80℃, 10 ~95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃(0-50℃) | |||||||||
| VIBRATION | 10 - 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||
| SAFETY & EMC |
SAFETY STANDARDS | UL1012 ; EN61347-1, EN61347-2-13 independent ; UL60950-1, TUV EN60950-1 (TBD) | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |||||||||
| SOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 ℃/ 70% RH | |||||||||
| EMI CONDUCTION & RADIATION | Compliance to EN55015, EN55022 (CISPR22) Class B | |||||||||
| HARMONIC CURRENT | Compliance to EN61000-3-2 Class C (≥75% load) ; EN61000-3-3 | |||||||||
| EMS IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61547, EN55024, light industry level (surge 4KV), criteria A | |||||||||
| OTHERS | MTBF | 30Khours. | ||||||||
| DIMENSION | L57.8*W30*H22.2mm | |||||||||
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. | |||||||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | ||||||||||
|
3. Constant current operation region is within 75% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design. 4. Safety and EMC design refer to EN60598-1, subject 8750(UL), CNS15233, GB7000.1, FCC part18. | ||||||||||
Mechanical Specification
Series Recommend
Packaging & Shipping
DC140V 3 years warranty constant current transformer
