Help CenterDimmable LED Power Supply for Panel Lights
Related Products
-
PWM Dimmable LED Driver Power Supply With 50W 700mANegotiableMOQ: 200 Pieces -
CE CB Approved China Constant Current Dimmable Led Driver 500ma 25wNegotiableMOQ: 500 Units
-
PWM/0-10V 32W Dimmable Power Supply With High EfficiencyNegotiableMOQ: 500 Pieces
-
30W/350mA External UL Passed LED Drivers, IP40 Design, High Powemmable LED Driver/Power Supply With PWM/Resistance DimmingNegotiableMOQ: 200 Pieces
-
PWM/0-10V Dimmable Power Supply With High EfficiencyNegotiableMOQ: 500 Pieces

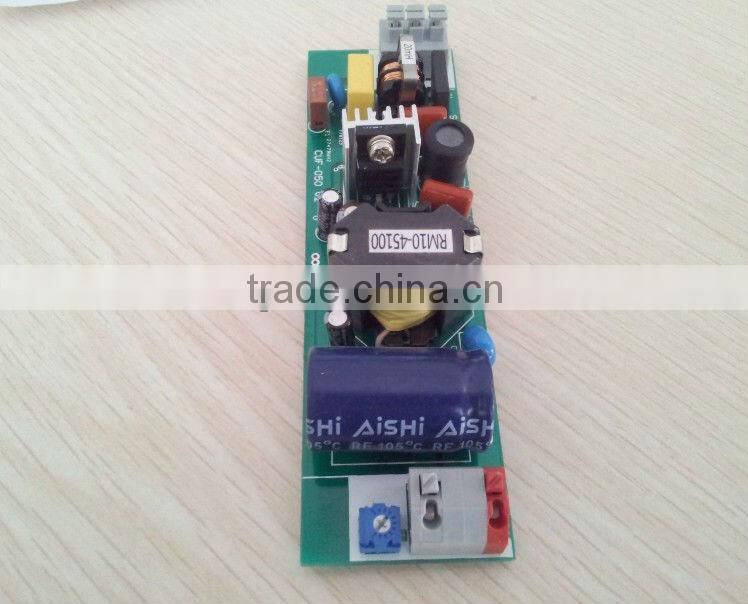

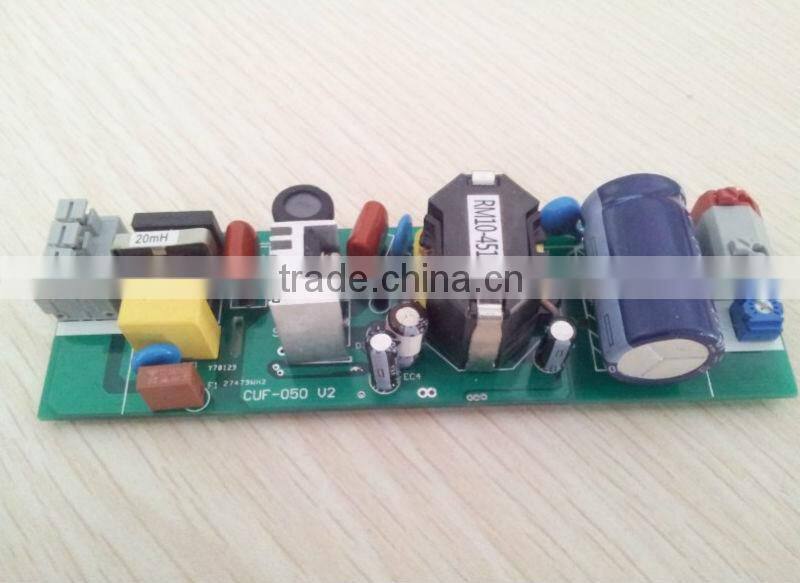

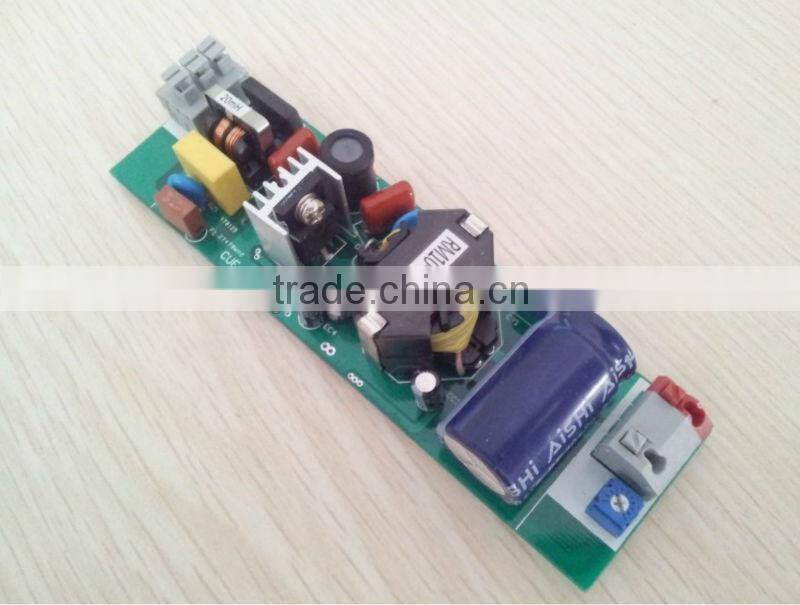

Dimmable Non-Waterproof LED Driver.
PWM+Dimmer dimming mode.
Dimmed by potentiometer, easily operated.
Current can be adjustable by your need through potentiometer.

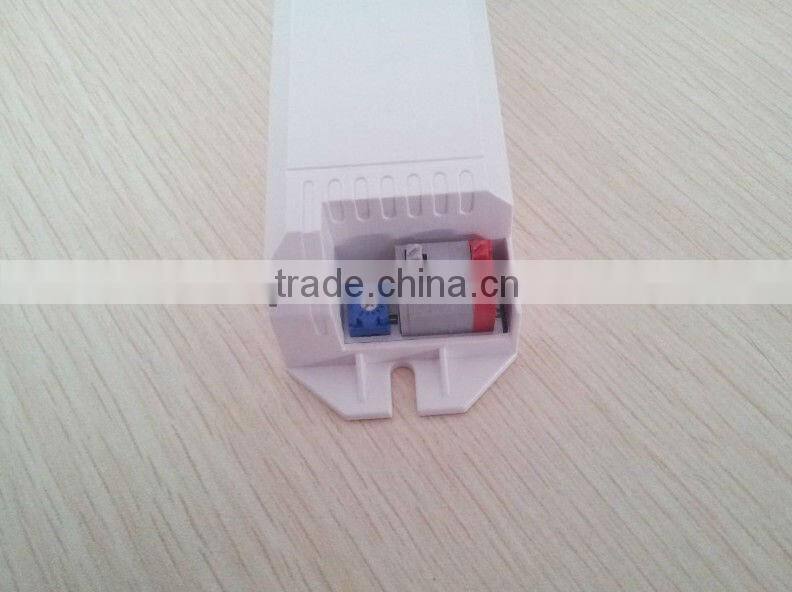

Plastic case, IP40.
Input and output with terminal blocks.
Widely used for LED Panel Lights.
Zero ripple of current, high efficiency, energy-saving and eco-friendly.
Built in PFC function, power factor: ≥0.95
Built in test: 100% for at least 4 hours under environment temperature of 40 degree
Warranty: two years.
DC Voltage and DC current can be customized.
MODEL |
| CUF-050-070-EC2 |
OUTPUT | DC VOLTAGE | 40~70V |
RATED CURRENT | 300~700mA | |
RATED POWER | 50W(MAX) | |
Ripple of Current | <1%, | |
VOLTAGE TOLERANCE | 10% | |
LOAD REGULATION | ±2.0% | |
INPUT | VOLTAGE RANGE | 90-264Vac |
FREQUENCY RANGE | 47~63Hz | |
POWER FACTOR | PF≥0.98 | |
EFFICIENCY(Typ.) | 88% | |
AC CURRENT | 0.61A Max | |
PROTECTION | OVER CURRENT | ±5% rated output current |
Protection type: Constant current limiting | ||
SHORT CIRCUIT | Hiccup mode | |
Over temperature | Protection type: Shut down o/p voltage, re-power on to recover. | |
ENVIRONMENT | WORKING TEMP. | -30°C~+70°C |
WORKING HUMIDITY | 10%RH~100%RH non-condensing | |
STORAGE TEMP., HUMIDITY | -40°C~+80°C10~95%RH | |
SAFETY& EMC | SAFETY STANDARDS | IEC/EN60598;IEC/EN61347;CB |
WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
EMC | EN55015/EN61547/EN61000 | |
OTHERS | IP RATING | IP40 |
MTBF | 60000Hours | |
DIMENSION | 150*40*28mm(L*W*H) | |
PACKING | 120g/pc; 24pcs/ctn |
For connection, there are two ends, one end of the AC input terminal, it contains the “L” “N” and “G”, which can be inserted with wires’ diameter of 2.5mm².
The other end for the DC output terminals, one end of the negative DC output “LED-" Gray; the other end of the DC output positive "LED +" Red.
Note 1: When connecting the driver to LED lights, please pay attention to the input, the output of the correct security access;
Note 2: To avoid LED burned out, please connect the DC output side before connecting the grid;
Note 3: When using this product, please pay attention to the high-pressure safety and good anti-shock measures.
For more information, please contact us.
