Dimmable Non-Waterproof LED Driver.
PWM+Dimmer dimming mode.
Dimmed by potentiometer, easyly operated.
Current can be adjustable by your need through potentiometer.
Plastic case, IP40.
Input and output with terminal blocks.
Widely used for LED Panel Lights.
Zero harmonic, high efficiency, energy-saving and eco-friendly.
Built in PFC function, power factor: ≥0.98
Built in test: 100% for at least 4 hours under environment temperature of 40 degree
Warranty: two years.
DC Voltage and DC current can be customized.
MODEL |
| CUF-047-047-EC2 |
OUTPUT | DC VOLTAGE | 65~100V |
RATED CURRENT | 200~470mA | |
RATED POWER | 47W(MAX) | |
HARMONIC | 0 | |
VOLTAGE TOLERANCE | 10% | |
LOAD REGULATION | ±2.0% | |
INPUT | VOLTAGE RANGE | 90-264Vac |
FREQUENCY RANGE | 47~63Hz | |
POWER FACTOR | PF≥0.98 | |
EFFICIENCY(Typ.) | 88% | |
AC CURRENT | 0.61A Max | |
PROTECTION | OVER CURRENT | ±5% rated output current |
Protection type: Constant current limiting | ||
SHORT CIRCUIT | Hiccup mode | |
Over temperature | Protection type: Shut down o/p voltage, re-power on to recover. | |
ENVIRONMENT | WORKING TEMP. | -30°C~+70°C |
WORKING HUMIDITY | 10%RH~100%RH non-condensing | |
STORAGE TEMP., HUMIDITY | -40°C~+80°C10~95%RH | |
SAFETY& EMC | SAFETY STANDARDS | IEC/EN60598;IEC/EN61347;CB |
WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
EMC | EN55015/EN61547/EN61000 | |
OTHERS | IP RATING | IP40 |
MTBF | 60000Hours | |
DIMENSION | 150*40*28mm(L*W*H) | |
PACKING | 120g/pc; 24pcs/ctn |

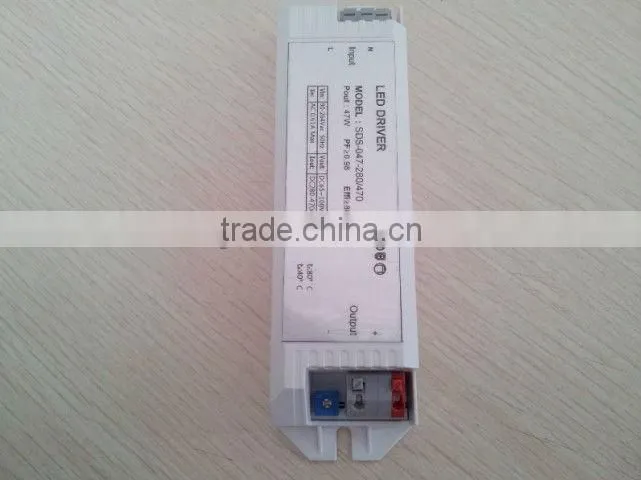

For connection, there are two ends, one end of the AC input terminal, it contains the “L” “N” and “G”, which can be inserted with wires’ diameter of 2.5mm².

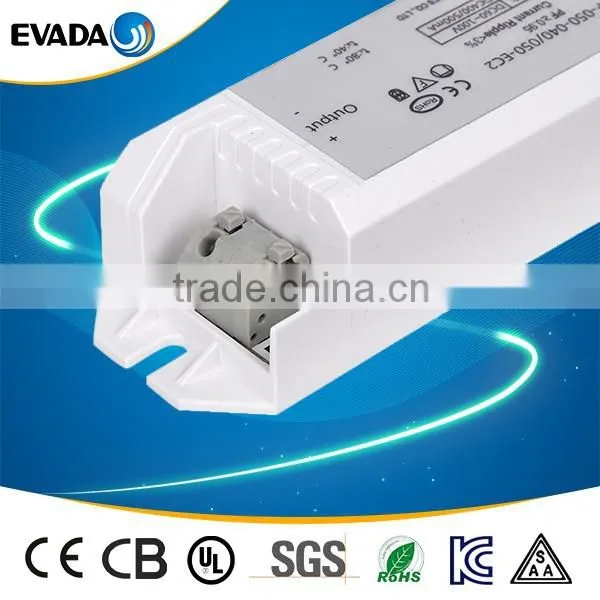

The other end for the DC output terminals, one end of the negative DC output “LED-“; the other end of the DC output positive "LED +".
Note 1: When connecting the driver to LED lights, please pay attention to the input, the output of the correct security access;
Note 2: To avoid LED burned out, please connect the DC output side before connecting the grid;
Note 3: When using this product, please pay attention to the high-pressure safety and good anti-shock measures.
For more information, please contact us.
