UV Systerm Printing Machine,crystal Printing Machine,printing on Crystal Directly

Shenzhen Yueda Printing Machinery Co., Ltd.

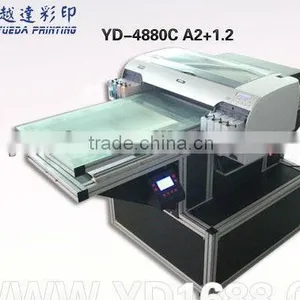

UV Systerm Printing Machine,crystal Printing Machine,printing on Crystal Directly thumbnail-1
UV Systerm Printing Machine,crystal Printing Machine,printing on Crystal Directly photo-1
US$ 10,600 - 13,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, UV systerm printing machine
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Other, UV systerm printing machine
Place of Origin Guangdong, China
Brand Name Epson
Model Number YD-A2a(4880)UV systerm printing machine
Usage Paper Printer, Label Printer, Card Printer, Tube Printer, Bill Printer, Cloths Printer, Other, Paper Printer, Label Printer, Card Printer, Tube Printer, Bill Printer, Cloths Printer, UV systerm printing machine
Automatic Grade Automatic
Voltage AC 110V-220V
Gross Power 75W
Dimensions(L*W*H) 1200*620*600(mm)
Weight 400KG
Certification CE
After-sales Service Provided Overseas service center available

Specifications

1.NO pre-coating,fast printing.
2.Low cost,chage color directly.
3.get samples or products in seconds.
4.Computer operation.

  UV systerm  printing machine,crystal printing machine,printing on crystal directly

Printer advantage compared with traditional way.

1. No plate-making, fast printing, low cost, available for the output of various of software.

2. Changing color directly by the computer, changing color wherever, no need to pay the extra fees.

3. Could meet the requirements of fast getting the sample or products even in some seconds,

4. Could print at unit price, printing in mass production, going with template matching, time saving.

5. Full color photos, finish once, progressive color could meet the image results of quality

 6. Handled with fast, quality production, no need to get professional skills

 7. Computer operation, no need to depend on the stuff with a lot of upgrade space.

Printer specification

Print size   super A0 Format largest printing range0.42m*1.5m
  Print head   180 Nozzles 8 color, intelligent transformation of the   Droplet   Technology.
  Print color   8 color ( C+M+Y+K,LC,LM,LK,LLK)
   Max thickness of flat printing   23cm
   Printing weight   Precision Nondestructive weight 100kg
   Max printing precision   2880DPI * 1440DPI
   Ink tank volume   220ML * 8color
   Printing speed A1 size

   Around 5.0min (720 dpi * 360dpi/plain paper:  Quality mode)

  Around 7.2min (720 dpi * 360 dpi/coating paper: speed mode)

  Around 9.9min (720 dpi * 720 dpi/coating paper: quality mode)

  Around 14.3 min (1440 dpi * 720dpi/photo mode)

  Around 26.9min ( 2880dpi * 1440dpi/high printing quality photo)

   Power requirement   110-220V  50-60HZ  75W
   Printing interface   USB 2.0/1.1 interface and 100 Base -T  Ethernet interface
   Operation system   Window 95, 98, NT, 2000, XP, 2003 / MAC/Linux
   Net weight/ Gross weight   150KG/ 200KG
   Printer size   1.8m* 0.62m*0.6m

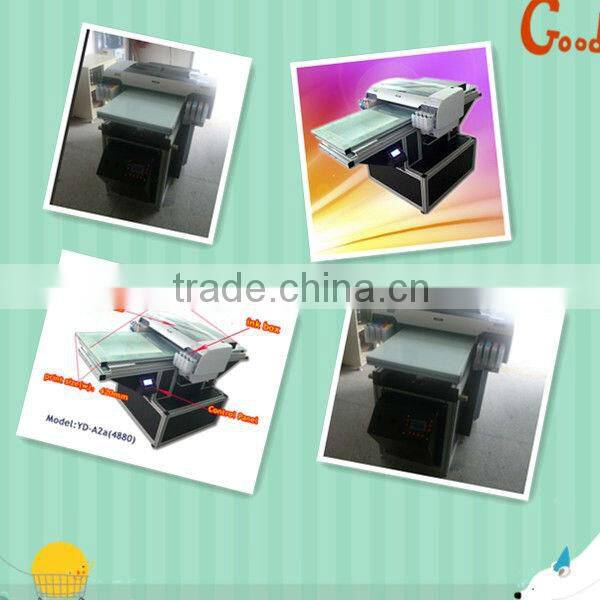

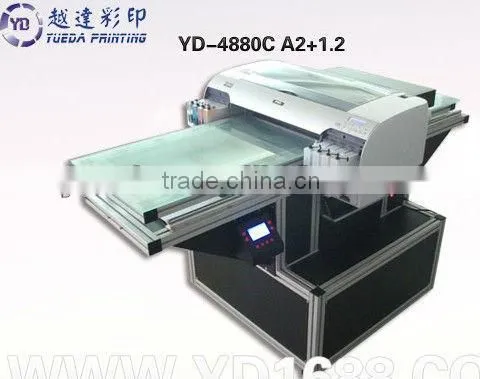

Printer images

 UV systerm printing machine,crystal printing machine,printing on crystal directly

UV systerm printing machine,crystal printing machine,printing on crystal directly   UV systerm printing machine,crystal printing machine,printing on crystal directlyUV systerm printing machine,crystal printing machine,printing on crystal directly



products samples:

 UV systerm printing machine,crystal printing machine,printing on crystal directlyUV systerm printing machine,crystal printing machine,printing on crystal directly



Work shop & Company enviroment

 UV systerm printing machine,crystal printing machine,printing on crystal directlyUV systerm printing machine,crystal printing machine,printing on crystal directly



Printing process

 UV systerm printing machine,crystal printing machine,printing on crystal directly



Printer certificate

 UV systerm printing machine,crystal printing machine,printing on crystal directly



Printer pack details

 UV systerm printing machine,crystal printing machine,printing on crystal directlyUV systerm printing machine,crystal printing machine,printing on crystal directly



Applications materials:

  Plastic (ABS, PC, PE, PP, PU, PVC, etc.), acryl, metal, woodware, leather, textile fabric, glass, crystal, coated paper, ceramic/porcelain, silica gel, etc.



After-sale service

1. One year quality warranty,if some parts of the machine damaged of course not by person on purpose we could provide one to you for free.

2. We have after-sale service department, engineers are meant to solve all the problems for customers, either through skype/msn,phone,email or go to customer's factory for free

3. Lifelong time problems inquiring regarding the machines we could help you out any time you contact us.



 UV systerm printing machine,crystal printing machine,printing on crystal directly
