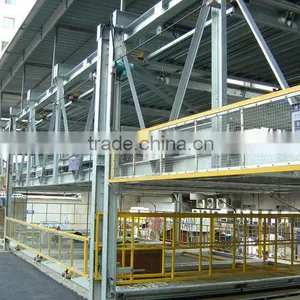

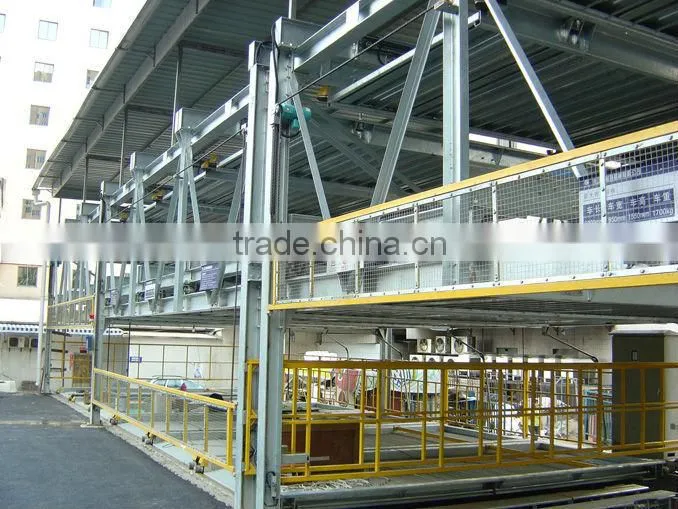

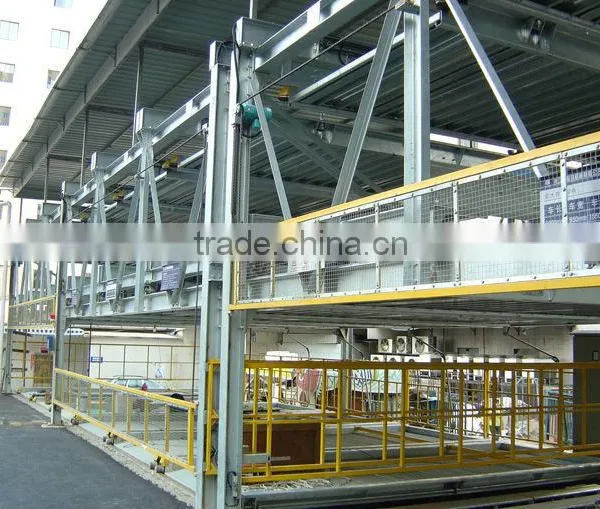

Help CenterCar Vertical Horizontal Parking System
Related Products
-
Mobile Concrete Mixing Plant YHZS35 ManufactureUS$ 100,000 - 200,000MOQ: 1 Set -
GSW 2000 Dry Mortar Mixing Plant Manufacture in ChinaUS$ 50,000 - 100,000MOQ: 1 Set
-
JZC500 Small Portable Concrete Mixer With PumpUS$ 40,000 - 100,000MOQ: 1 Set
-
Wall Plastering MachineUS$ 3,900 - 5,000MOQ: 1 Set
-
Stabilized Soil Mixing PlantUS$ 50,000 - 80,000MOQ: 1 Set
Specifications
1.Less land occupation, efficient space utilization.2.It is convenient to park or retrieve the car.
3.Low energy cost.
Working
There is pellet on each park space. The system moves the pellet vertically or horizontally to park or retrieve the cars. The pellets on the top level and the bottom level can only move vertically and the pellets in the middle level (ground level) could move horizontally only. There is one empty space in the middle level and it could move horizontally with the pellet. When we park or retrieve the specified car, the park space which the specified car correspond in the middle will exchange into the empty space, then the pellet could lower to the ground in order to realize the parking and retrieving of the car.
Features
1.Less land occupation, efficient space utilization.
2.It is convenient to park or retrieve the car. The unique design of span girder provides a barrier-free environment for the car.
3.It adapts the PLC control system and this greatly increases automatic level.
4.Low energy cost, environment friendly and low noise.
Adapted
This equipment used to the open space in front of the building and the basement without a enough long slope.
Technical
| Technical parameters | ||
| Car space capacity size | length×width×height(mm) | 5000mm x 1850mm x 1550mm |
| Car weight(kg) | 2000kg | |
Speed |
Top lifting (m/min) | 4 m/min |
| Down lifting(m/min) | 2.8 m/min | |
| shifting (m/min) | 8 m/min | |
| Noise(db) | ≤65db | |
