N2 Mortar spraying pump/splitter machine
- 20 Set / Sets per Month
- Qingdao
- T/T Credit Card
- outdoor Medium High pressure Portable abrasive waterjet reinforced concrete cutting machine
- 52 Meter Concrete Pump Truck
- Sany concrete pump hose reel 60031864
- Zhongyi motor concrete pump parts
- 37 Meter Concrete Pump Truck
- diesel mini concrete pump for sale Aggregate size 30mm post tension grout mortar cement pump
Product Details
Condition: | New | Power Type: | Electric | Place of Origin: | Shandong, China |
Brand Name: | CO-NELE/SISOUL | Model Number: | PJB-N2 SEMI-AUTOMATIC | Power(W): | 4 KW |
Weight: | 165KG | Dimension(L*W*H): | 1300*650*1200mm | Certification: | CE/ISO9001 |
Warranty: | 24 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications

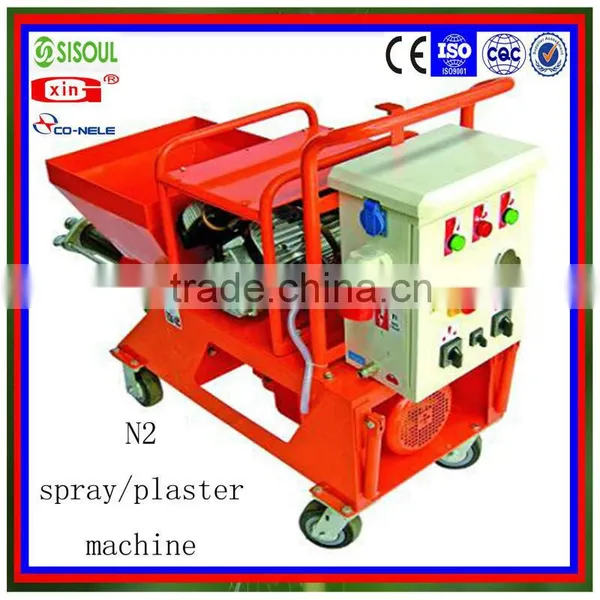

N2 Mortar spraying pump/splitter
1.mortar spraying pump/splitter
2. ISO9001, CE
3. Low price with great quality N2 Mortar sp
Description
N2 spraying pump/splitter is a new type of energy-saving and environmentally-friendly construction machinery developed by our company and enhanced on the basis of Germany advanced technologies. It’s completely applicable to all types of spraying constructions
This set of spraying assembly, blending perfect design with excellent industrial technologies, is reliable, adaptable, strong and durable, and easy to operate. Therefore, it has been praised and recognized by insiders at all levels and strongly seconded and generalized by relevant leaders. Assorted with the current sound-and- thermal insulation system of the space truss structure like CS board, SB board, EPS board, and polyphenyl particle board, the mortar wall surface machine of these halftones is featured by easy use, high hardness, good adhesion, and no hollowness and cracks, distinct from the shortcomings of high difficulty, low hardness, insufficient adhesive, and likely hollowness and cracks of that of the manually-operated space truss structure.
Technical Parameters
Model | PJB-N2 semi-automatic |
Voltage | 380V/220V |
Power | 4KW |
Displacement volume | 3-60L/min |
Delivery pressure | 30bar |
Delivery distance | 0-100m |
Delivery height | 30m |
Allowed maximum diameter of material | 3mm |
Hopper volume | 50L |
Feeding mode | semi-automatic |
Weight of control case | 70kg |
Weight of delivery parts | 95kg |
Weight of hopper | 100kg |
Overall weight | 165kg |
Dimension | 1580mm*660mm*1600mm |
Packaging & Delivery
Packaging Detail: | 1.Wire cables are used for fastening the machine on the trailer or inside the container. 2.Cork wood are placed in front or behind the machine to protect it. 3.Plastic film is covered on the machine as a rain-roof. 4.Reinforcement packaging |
Delivery Detail: | 7~15 working days after receiving the down payment |
Our products are saled all over the country's 34 provinces, cities and autonomous regions, and have exported to more than 30 countries and regions around the world.
Receive maintenance call——Call guidance or send engineer to solve on the spot——If need change some parts———Within the guarantee time change the parts without charging/Without the guarantee time provide the parts with the favourable price
Within the guarantee time send the parts to the door without charging.
Without the guarantee time, provide lifelong charging service and favourable price parts.
