Home > Industrial Equipment & Components > Bearing > Angular Contact Ball Bearing > V Groove Track Roller Bearings, Double Row, Outer Ring With "V" Profile, Metal Shields or Rubber Seals on Both Sides

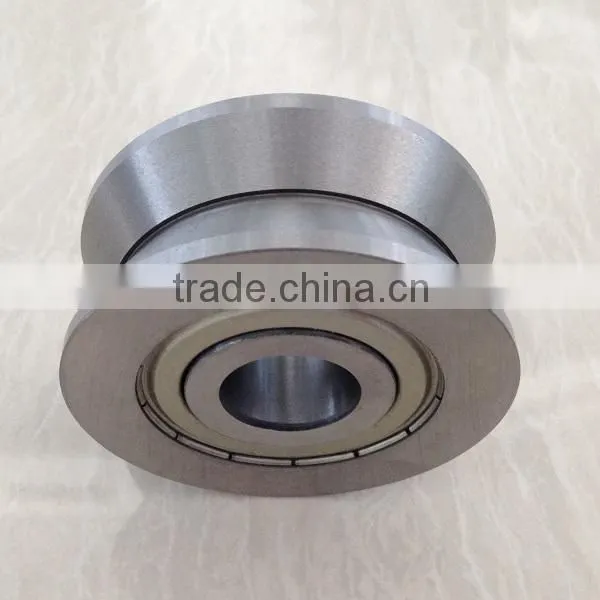

V Groove Track Roller Bearings, Double Row, Outer Ring With "V" Profile, Metal Shields or Rubber Seals on Both Sides

US$ 3.66 - 11.16 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Brand Name:

C&H

Bore Size:

6, 20

Outside Diameter:

20, 58

Contact Supplier Request Quote Chat Now

Shanghai Chenghui Bearing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name C&H

Bore Size 6, 20

Outside Diameter 20, 58

Model Number LV20/7,LV20/8,LV201,LV202-38,LV202-40,LV202-41,LV203,LV204-57,LV204-58

Precision Rating ABEC-1,ABEC-3

Seals Type Shields or NBR Seals

Number of Row Double Row

Place of Origin Shanghai, China

Specifications

V Groove Track Roller Bearings -LV
1. Double Row Angular Contact Ball Bearings
2. Outer ring with V profile
3. Wide using

V GUIDE WHEEL

LV .... Guide Wheel...... Vee Bearing

• V guide wheel can be widely used in the cylindrical track or " V " profile track with an angle of 120 degrees.Different from the series LFR bearings, series LV bearings are more adaptable to the different track sizes. Each type can be applied with a larger range of track diameters.They are widely used for the heavy-duty track, mobile equipment wire straightening machine and so on.

• Bearings take the internal structure design of double row angular contact ball bearings and have a thick-walled outer ring, so the bearings can accommodate higher loads.

• Bearings are made of the high-quality bearing steel, processed by heat treatment and precision grinding, and are filled with a long service life, high-grade and multi purposes grease. Bearings take the metal shields to prevent the dust.

• The bearings have an undercut on its bottom of groove on the outer ring. If the application disallow this undercut, we can meet customer's technical requirement. Also can accept the bearings with various angle of " V "profile.

Characteristics of Guide System that series LV wheels are applied

• Low resistance, long service life, widely-use

The roughness of the " V ", profile surface can be reached to Ra0.32 processed by precision grinding. The bearingshave good parallelism between the " V " profile groove and the mounting planes of inner ring relatively. When bearings working, the stresses between the bearing and cylindrical track is in good-distribution and the friction resistance is low.

• Easy installation

After bearing assembled the concentric or eccentric pivot, installation will be convenient. To adjust the eccentric one's eccentricity, the bearing can get the fitting preload

Warranty

The C&H Track Roller is made very strictly, the inspection is critical, special for the runout of outer ring and roughness of working surface, to guarantee the smooth running and mini error and low the noise Level.

• 52100 Bearing Steel or 440 Stainless Steel

• Permanently grease lubricated

• Available with 304 Stainless Steel shields or NBR seals

• Low resistance, long service life, widely-use












Designation	Principle Dimensions (mm)								Load Rating (N)		Weight
	dw	d	D	B	C	A	α	rs	Cr	Cor	≈(g)
LV50/6 NPP	5	6	20	10	10	11.63	120	0.3	3080	1400	20
LV 20/7 KDD	10	7	22	11	11	14.5	120	0.3	3780	2050	17
LV 20/7 NPP	10	7	22	11	11	14.5	120	0.3	3780	2050	17
LV 20/8 KDD	10	8	30	14	14	18.1	120	0.3	5130	2670	49
LV 20/8 NPP	10	8	30	14	14	18.1	120	0.3	5130	2670	49
LV 201 KDD	20	12	41	20	20	28	120	0.3	8470	5370	130
LV 201 NPP	20	12	41	20	20	28	120	0.3	8470	5370	130
LV 202-38 KDD	10	15	38	17	17	22.3	120	0.5	8470	5370	87
LV 202-38 NPP	10	15	38	17	17	22.3	120	0.5	8470	5370	87
LV 202-40 KDD	10	15	40	18	18	22	120	0.5	8470	5370	110
LV 202-40 NPP	10	15	40	18	18	22	120	0.5	8470	5370	110
LV 202-41 KDD	20	15	41	20	20	28	120	0.5	8470	5370	116
LV 202-41 NPP	20	15	41	20	20	28	120	0.5	8470	5370	116
LV 203 KDD	20	17	58	25	25	35	120	0.5	14660	9100	325
LV 203 NPP	20	17	58	25	25	35	120	0.5	14.66	9.1	325
LV 204-57 KDD	30	20	57	22	22	41	120	0.6	14.66	9.1	290
LV 204-57 NPP	30	20	57	22	22	41	120	0.6	14.66	9.1	290
LV 204-58 KDD	30	20	58	25	25	41	120	0.6	14.66	9.1	310
LV 204-58 NPP	30	20	58	25	25	41	120	0.6	14.66	9.1	310
LV 201-14 KDD	14	12	39.9	20.1	18	24	100	0.5	8900	5000	107
LV 201-14 NPP	14	12	39.9	20.1	18	24	100	0.5	8900	5000	107

Packaging & Shipping

Packing

• For express ( Plastic Tube + Neutral Boxes + Neutral Cartons )

• By vessel ( Placstic Tube + Neutral Cartons + Plywood Pallets or Cases )

Delivery ways and Times

• 3~7 days ( Door to door servies ) by FEDEX / DHL / UPS ...

• 35~60 days by vessel for big amount order

Our Services

• Free Sample

• Customer brand and Packing is available

• Customer size is available in condition of a commercial quantity

Company Information

Welcome to Shanghai C&H Bearings Co., Ltd

Established in 2006, the C&H pioneering and professionalism commitment to the bearing and transmission component markets. Through over seven years of exploration in those markets, C&H has built a high level of technical and services team.

Nowadays, C&H has gained extensive customer recognition in the bearing and transmission market with its professional services. It has developed customers over 20 countries and regions. In particular, it has nurtured good reputation in South America.

C&H owns not only an outstanding technical service delivery team within China, but also powerful supply chain and integration capacity as well as wide product range that contributes to the one-stop, customized solution for customers.

Our customers can buy bearings, auto parts, trucks and trailer parts from C&H, majority of which are industry bearings, automotive bearings. These products can be produced according to the specific requirements of customers. Besides, all of our products have passed through the authentication of ISO9001 and TS16949.

C&H adheres to the pursuit of excellence, strives for perfection, values customer satisfaction most.

C&H will continue to strive for excellence, deliver C&H products to all over the worlds, so that more users can enjoy our products and services!

Welcome your any inquiry !

Give Us a Chance, Return You a Surprise!

FAQ

A. For Track Roller and Guide Wheels, If C&H can produce more precision wheels?

By now, the available tolerance for C&H is UP to ABEC-3.

B. If C&H can produce low noise track roller and guide wheels, what's the grade?

Yes, Z1 is avaiable.

C. If C&H can supply concentric or eccentric bushings ?

We are developing these product.

We also supply Dual V Guide Wheel, LFR Series Yoke Type Track Rollers, Cam Rollers and Wire Straightening Wheels .......
