Carbon Steel Balls

Carbon Steel Balls thumbnail-1
Carbon Steel Balls photo-1
US$ 1.08 - 1.45 MOQ: 1000 Kilograms
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
C&H
Model Number:
3/16
Contact Supplier Request Quote Chat Now
Shanghai Chenghui Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name C&H
Model Number 3/16
Material Other, carbon steel

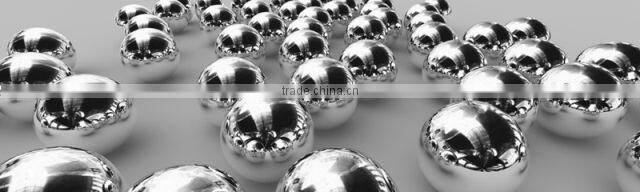

Carbon steel balls



C&H can supply high quality carbon steel balls, chrome steel balls, stainless steel balls

The grade is up to precision G5 for precision application. Such as auto mobile, motor bearings, screw bearings

and so on.



The above information is as your ref. For more details, please check with us.





The Grade of Steel Balls



International Standards: ISO3290-1998

Grade Ball   Dia. Vibration Spherical   Deviation  Rough   -ness Batch   Ball Dia Vibration Vdwl Gauge   space Gauge Sub-gauge   space Sub-gauge
Vdws Sph Ra
3 0.08 0.08 0.01 0.13 0.5 -5,…-0.5,0,+0.5…+5 0.1 -0.2,-0.1,0,+0.1,+0.2
5 0.13 0.13 0.01 0.25 1 -5,…-0.5,0,+0.5…+5 0.2 -0.4,-0.2,0,+0.2,+0.4
10 0.25 0.25 0.02 0.5 1 -9,…-1,0,+1…+9 0.2 -0.4,-0.2,0,+0.2,+0.4
16 0.4 0.4 0.03 0.8 2 -10,…-2,0,+2…+10 0.4 -0.8,-0.4,0,+0.4,+0.8
20 0.5 0.5 0.03 1 2 -10,…-2,0,+2…+10 0.4 -0.8,-0.4,0,+0.4,+0.8
24 0.6 0.6 0.04 1.2 2 -12,…-2,0,+2…+12 0.4 -0.8,-0.4,0,+0.4,+0.8
28 0.7 0.7 0.05 1.4 2 -12,…-2,0,+2…+12 0.4 -0.8,-0.4,0,+0.4,+0.8
40 1 1 0.06 2 4 -16,…-4,0,+4…+16 0.8 -1.6,-0.8,0,+0.8,+1.6
60 1.5 1.5 0.08 3 6 -18,…-6,0,+6…+18 1.2 -2.4,-1.2,0,+1.2,+2.4
100 2.5 2.5 0.1 5 10 -40,…-10,0,+10…+40 2 -4,-2,0,+2,+4
200 5 5 0.15 10 15 -60,…-15,0,+15…+60 3 -6,-3,0,+3,+6
500 12.5 12.5 - 25 - - - -
1000 25 25 - 50 - - - -



Material of Steel Balls



Steel   Code Chemical Element Composition %
C Si Mn P S Ni Cr Mo Cu
max msx max
GCr15 0.95-1.05 0.15-0.35 0.25~0.45 0.025 0.025   1.40-1.65
1015 0.1~0.2 0.1~0.2 0.60~0.90 0.04 0.5
AISI440C 0.95-1.2 1.00max 1.00max 0.04 0.03 0.60max 16.0-18.0 0.75max
AISI420C 0.42-0.50 1.00max 1.00max 0.04 0.03   12.5-14.5   0.3
AISI304 0.08max 1.00max 2.00max 0.045 0.03 8.00-10.5 18.0-20.0
AISI316 0.08max 1.00max 2.00max 0.045 0.03 10.0-14.0 16.0-18.0 2.00-3.00



Grade Available of Steel Balls



Range of Sizes Grade
Chrome Steel Ball 1/8"(3.175mm)~1/2"(12.700mm) G5,G10~G40
Chrome Steel Ball 17/32"(13.494mm)~1"(25.400mm) G10,G16~G40
Chrome Steel Ball 1-1/8"(28.575mm)~2-1/2"(63.500mm) G16,G20~G200
Carbon Steel Balls -1/8”(3.175mm)----1”(25.400mm) G40,G100----G1000
Stainless Steel Balls -1/8”(3.175mm)----1”(25.400mm) G40,G100----G1000



Dimension list

Carbon steel balls

Dw Mass (kg) Dw Mass (kg) Dw Mass (kg) Dw Mass (kg)
mm                in 1000pcs mm         in 1000pcs mm           in 1000pcs mm        in  1000pcs
0.5 0.00051 10 4.08 26.194  1 11/32 73.3 60.325  2 3/8 902
0.635   1/40 0.001 10.319  13/32  4.48 26.988  1 11/16 80.2 62 980
0.68 0.00128 10.5 4.76 27.781  1 13/32 87.4 63.5     2  1/2 1050
0.794   1/32 0.002 11 5.42 28 89.5 66.675  2 5/8 1220
0.8 0.00209 11.111   7/16 5.6 28.575   1 1/8 95.2 69.85   2 3/4 1400
1 0.00408 11.5 6.22 29.369   1 5/32 104 73.025  2 7/8 1600
1.191   3/64 0.007 11.509   29/64 6.22 30.163   1 3/16 112 76.2      3" 1820
1.2 0.00705 11.906   15/32 6.88 31.75     1 1/4 130.6 80 2100
1.3 0.00893 12 7.04 33.338   1 5/16 151.1 82.55   3 1/4 2310
1.45 0.0124 12.303   31/64 7.6 34 162 88.9     3 1/2 2890
1.588   1/16 0.016 12.5 8.03 34.925     1 3/8 173.8 92 3200
1.75 0.0218 12.7       1/2 8.35 35.719  1 13/32 187 95.25    3 3/4 3550
2 0.0326 13.4938  17/32 10 36.513   1 7/16 198.6 98.425  3 7/8 3920
2.381   3/32 0.055 14 11.18 38.1       1 1/2 225.6 101.6    4" 4310
2.5 0.0637 14.2878  9/16 11.9 39.688   1 9/16 257 105 4760
3 0.11 15.081  19/32 14 40 261 107.95  4 1/4 5170
3.175    1/8 0.131 15.875    5/8 16.3 40.481  1 19/32 273 110 5470
3.5 0.175 16 1   6.69 41.275    1 5/8 287 114.3    4 1/2 6140
3.969   5/32 0.255 16.669  21/32 18.9 42.863 1 11/46 321 120 7100
4 0.261 17 20.02 43.656  1 23/32 342 125 8003
4.763   3/16 0.441 17.463  11/16 21.7 44.45      1 3/4 356 127       5" 8420
5 0.51 18.256  23/32 24.8 45.244  1 25/32 381 130 9030
5.159  13/64 0.56 19 27.96 46.038  1 13/16 401 135 10100
5.556   7/32 0.699 19.05     3/4 28.2 47.625   1 7/8 441 140 11300
5.953   5/64 0.86 19.844  25/32 32.1 48.419  1 29/32 467 145 12500
6 0.881 20.637   13/16 35.8 50.403  1 63/64 526 150 13900
6.35     1/4 1.04 21 37.75 50.8       2" 535 155 15300
6.5 1.119 21.431  27/32 40.1 51.5 561 160 14800
6.745   17/64 1.25 22.225   7/8 44.8 52.5 595 165 18500
7.144    7/32 1.49 23 49.59 53.975    2 1/8 646 170 20200
7.938   5/16 2.04 23.019  29/32 49.8 55 684 175 22000
8 2.09 23.813  15/16 55.1 55.562   2 3/16 705 190 28200
8.5 2.5 24 56.34 56.356   2 7/32 736 195 30500
8.731   11/32 2.71 24.606  31 /32 60.8 57.15     2 1/4 767 200 32900
9 2.97 25 63.68 59 844 220 43800
9.525    3/8 3.52 25.4       1" 66.8
