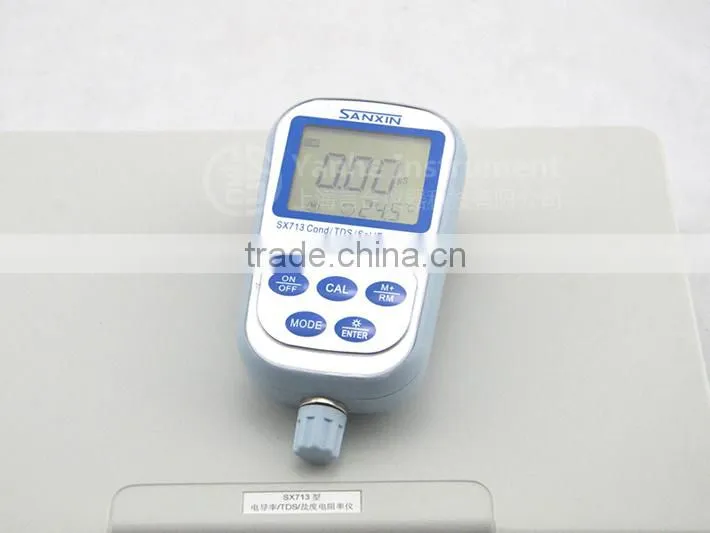

Help CenterSX713 Portable Electrical Conductivity Meter Water Conductivity Sensor
Related Products
-
SX716 Portable Dissolved Oxygen Analyzer DO Meter IP57US$ 320 - 345MOQ: 1 Set -
SX721 Portable PH/ORP Meter Double-parameter Analyzer Multiparameter Water Quality Meter Quality ChoiceUS$ 200 - 220MOQ: 1 Set
-
SX723 Portable PH/Conductivity Meter Electrical Conductivity and ph MeterUS$ 275 - 300MOQ: 1 Set
-
SX726 Portable Conductivity/Dissolved Oxygen Meter IP57US$ 416 - 448MOQ: 1 Set
-
SX731 Digital Portable PH/ORP/Conductivity Meter Laboratory pH Analyze IP57US$ 315 - 345MOQ: 1 Set
The most cost effective portable conductivity meter, measurement of conductivity, TDS, salinity and resistivity of water solutions, suited for industrial and mining factories, water treatment engineering and environmental protection field, especially suited in field and on-site.
| Built-in microprocessor chips, intelligent functions such as automatic calibration, automatic temperature compensation, data storage, function set-up, automatic power-off and low voltage display. |
| Automatic identification of 8 conductivity standard calibration solutions, two options of standard calibration solutions: Europe and America series and China series. |
| Adopt advanced conductivity measurement technology, use conductivity electrode of constant K=1, only need one point calibration and meet the measurement precision requirement of 0.5μS/cm ~ 200 mS/cm. |
| Ability to switch among conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and salinity to ensure the conversion precision of the full scale. |
| Conductivity measurement mode has the function of non-linear temperature compensation for high purity water. |
| Plastic conductivity electrode with automatic temperature compensation, fast response and accurate result. |
| Meter meets IP57 rating, equipped with calibration solution and portable case. |
| Category | Product Name | Basic features and specifications |
| Conductivity | Measuring range | Conductivity:(0.00~19.99)μS/cm (20.0~199.9)μS/cm (200~1999)μS/cm (2.00~19.99)mS/cm (20.0~199.9)mS/cm TDS: (0 ~ 100)g/L Salinity: (0 ~ 100)ppt Resistivity:(0 ~ 100)MΩ·cm |
Resolution |
0.01/0.1/1μS/cm 0.01/0.1 mS/cm | |
| Accuracy | Meter:±1.0% FS, Overall:±1.5% FS | |
Temp. compensation range |
(0 ~ 50)℃(manual) | |
Electrode constant |
0.1 / 1 / 10 cm-1 | |
Benchmark temperature |
25℃,20℃ and 18℃ | |
| Other Technical Parameters | Data storage |
200 groups |
| Storage content | Series number, measuring value measuring unit and temperature, | |
Power |
Two AA batteries (1.5V x2) | |
Size and weight |
meter:(65×120×31)mm/180g;Suitcase: (360×270×76)mm/1.6Kg | |
| Quality and safety certification | ISO9001:2000, CE and CMC | |
| Working Condition | Environment temperature |
5 ~ 35 ℃(0.01grade) |
Environmental humidity |
≤85% | |
IP rating |
IP57 Dustproof and waterproof |

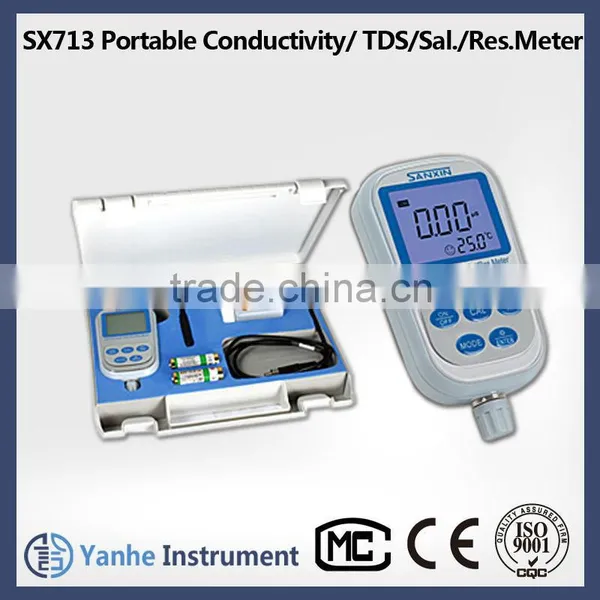

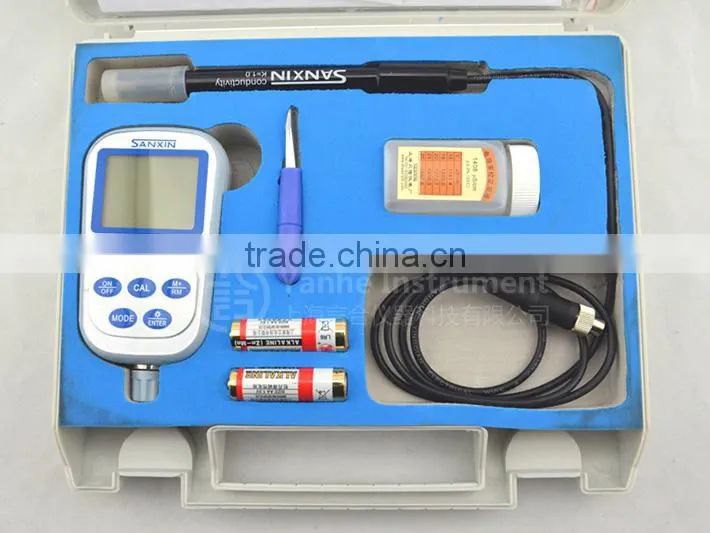

| 1. Model SX713 Conductivity/TDS/Salinity/Resistivity meter | 1unit |

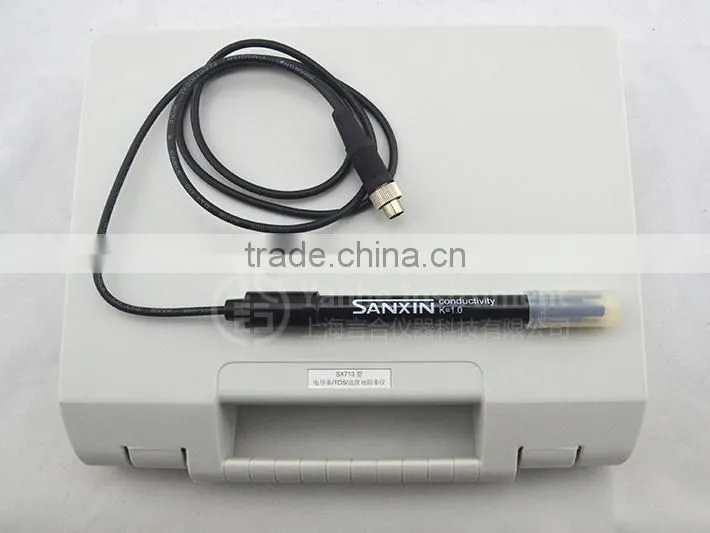

| 2. 2301-S plastic conductivity electrode | 1pc |
| 3. 1413μS/cm conductivity standard solution (50mL) | 1btl |
| 4.Screw driver | 1pc |
| 5. Spare AA batteries | 2pcs |
| 6. Operation manual | 1pc |
| 7. Carrying case | 1unit |
Accessory Category |
Description |
Specifications |
Conductivity electrode |
2301-S Plastic conductivity electrode |
K=1.0 cm-1,ATC, suited for conductivity measurement of general water solution, 8 pin connector. |
DJS-0.1-S Glass conductivity electrode |
K=0.1cm-1,ATC, suited for pH measurement of of high purity water, 8 pin connector. |
|
Glass flow cell |
Match DJS-0.1-S electrode. |
|
Conductivity standard |
84 μS/cm conductivity standard |
500mL/250mL/50mL(bottle) |
1413 μS/cm conductivity standard |
500mL/250mL/50mL(bottle) |
|
12.88 mS/cm conductivity standard |
500mL/250mL/50mL(bottle) |
|
146.6 μS/cm conductivity standard |
500mL/250mL/50mL(bottle) |
|
1408 μS/cm conductivity standard |
500mL/250mL/50mL(bottle) |
|
12.85 mS/cm conductivity standard |
500mL/250mL/50mL(bottle) |
|
Portable case |
Small portable case(255×210×50)mm |
Match single electrode. |
Big portable case(360×270×76)mm |
Match multi- electrode |
