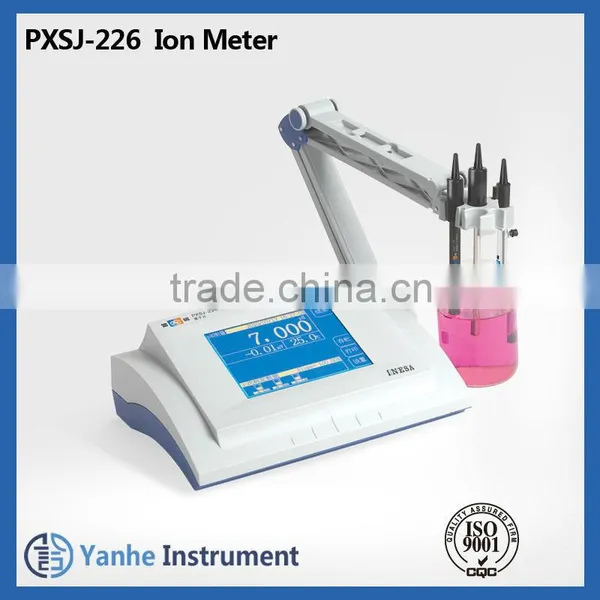

Help CenterPXSJ-226 Benchtop Ion Meter Laboratory Analyzers PX/Ion/mV (ORP) /temp
Related Products
-
DDSJ-318 Digital Conductivity Meter Cond/Resistivity/TDS/Salinity/temp Electrical Resistivity Measuring InstrumentsUS$ 865 - 910MOQ: 1 Set -
ZD-2 Digital LCD Automatic Potential Titrator MV(ORP)/pH Meter TesterUS$ 678 - 689MOQ: 1 Set
-
ZDJ-4A Digital LCD Automatic Potential Titrator PH/mV(ORP)/TempNegotiableMOQ: 1 Set
-
ZDJ-5 Coulomb/Automatic Titrator AutomaticUS$ 2,200 - 2,350MOQ: 1 Set
-
Economy Pocket Size ph Meter 5021 Conductivity Pocket TesterUS$ 51 - 60MOQ: 1 Set
Functions:
1.Large LCD touch screen and English operation interface
2.Support multiple common ion mode (such as H+,Ag+,Na+,K+,NH4+,Cl-,F- etc…). The user can define specific ion mode and test other ions.
3.It can measure pH value, and several kinds of buffer solutions can be selected to have one-point or two-point (up to5-point)calibration. The user can establish standard buffer groups and the meter can recognize 10 kinds of buffer solutions.
4.The test results can be stored, deleted, viewed, printed or transmitted to PC. It can store up to 350 sets of measuring results. For other ions, the user can store up to 100 sets of pX measuring results and 100 sets of concentration measuring results.
5.It is equipped with RS-232 and USB port. If matched with specific data collecting software, it can be connected with PC.
Specifications:
Model |
PHSJ-5 |
PXSJ-226 |
Parameters |
pH / mV(ORP) /℃ |
pX / Ion concentration / mV (ORP) /℃ |
Range |
pH: -2.000~18.000 mV: ±1999.99 Temp: -5.0~105.0℃ |
pX: 0.000~14.000 mV: ±1999.99 Ion Concentration: (0~19990), unit ug/L,mg/L,g/L,mol/L,mmol/L Temp: -5.0~105.0℃ |
|
Resolution
|
pH: 0.1/0.01/0.001 mV: 0.1/ 0.01 Temp: 0.1℃ |
pX: 0.001 mV: 0.01 Temp: 0.1℃ |
Accuracy |
pH: ±0.002±1 bit mV: ±0.03%FS Temp:±0.2℃±1 bit |
pXⅠ: ±0.002±1 bit, pXⅡ: ±0.005±1 bit mV: ±0.03%FS Ion Concentration: ±0.5%±1bit Temp: ±0.2℃±1 bit |
Ion Mode |
— |
Support multiple common ion mode (such as H+,Ag+,Na+,K+,NH4+,Cl-,F- etc…) Custom ion mode |
Temp Compensation |
Manual/Auto(-5.0~105.0)℃ |
Manual/Auto(0.0~60.0℃ |
Calibration |
Five-point calibration |
|
GLP standard |
Yes |
|
Buffer Recognition |
Automatic: USA/NIST |
Auto-recognition, Up to 10 Buffers |
Data Storage |
200 sets of data |
350 sets of data |
View, Delete & Print |
Yes |
|
Display |
Touch, 5" LCD screen |
|
Communication Interface |
RS-232, USB |
|
Power |
AC (220±22)V; (50±1)Hz |
|
Dimension&Weight |
250×195×100(mm), 2kg |
|
Standard Configuration |
E-201-D pH Combination Electrode; T-820D ATC Probe; Standard Buffer |
PF-1-01 Fluoride ISE; 232-01 Reference Electrode; T-820D ATC Probe; JB-1A Stirrer |
