HUAZHONG silver welding,offer free samples
Main applications

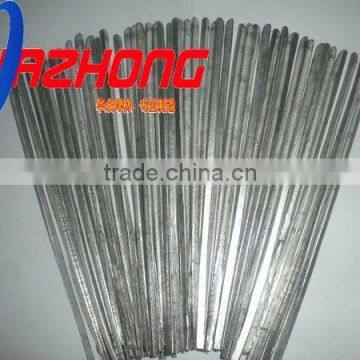

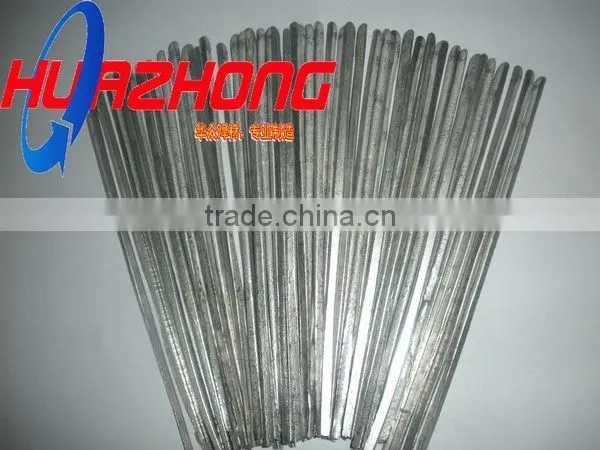

Brazing alloy Rods with 1% Ag
Factory Brand: HZ-Ag1B
This high quality welding and brazing alloy is an alloy of copper and zinc with small addition of silicium, silicon, nickel and manganese to assist deposition.This addition refines the alloy--HZ-Ag1B, lowers the melting range, improvingelectrical conductivity and increasing ductility.
Having a slightly lower melting range, is recommended for the brazing of galvanized steels, while protecting the zinc coat. Its high fluidity and good capillarity makes it suitable for brazing tricky works.
Heating can be achieved by induction, torch or by furnace.Most used in lock-smithing and work shops.A flux is necessary.
EN ISO 3677: B Cu 59 Zn Ag Si 850-870
| Parameters | Analysis | Properties | Ø x L(mm) | manufacturer |
|
Melting range: 850-870 ° C |
Cu: 58.0% Zn: balance Ag: 1.0% Others: Si,Mn,Sn |
Rm: 480 Mpa A: 30% d: 8,5 g/cm³ |

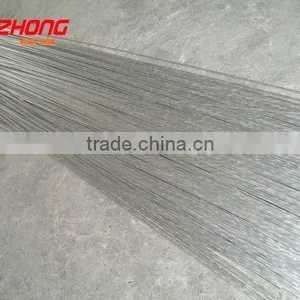

Bare and rods Ø 1,5 - 2 - 2,5 - 3 - 4 mm, standard length 500 mm and 1000mm. Wire:0.3-4.0mmAlso available in wire, ring strip and performs. |
HUAZHONG |
1kg/bag,2kg/bag
It also can be customized if you have some your own requirements
Technique innovation& Products excellent & Quality first & Customer satisfaction

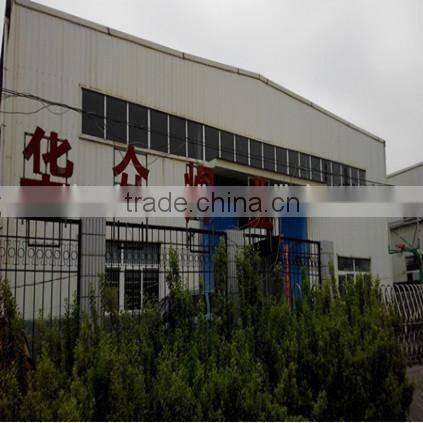

Anhui Huazhong Welding Material Manufacturing Co., Ltd is established in 2004, and located in Hefei——the central City of Anhui Province. We are specialized in manufacturing and producing brazing materials. Our main products include silver-based brazing filler metal, copper-based brazing filler metal, aluminum-based brazing filler metal and associated brazing flux, flux-cored welding wire etc. Our brazing flux products include: silver welding paste, silver welding powder, copper welding paste, copper welding powder, aluminum welding paste, aluminum welding powder, spot welding paste (water), etc. The available shape of brazing alloys are rod, ring, sheet, strip, wire etc.
If you have any other questions,pls feel free to contact me.
