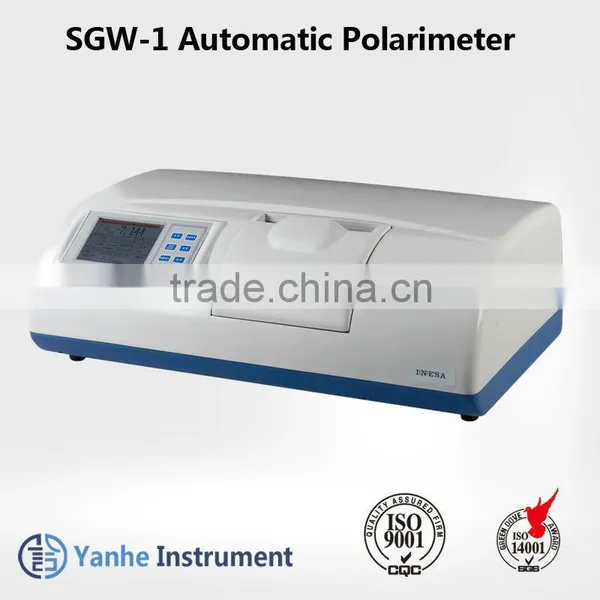

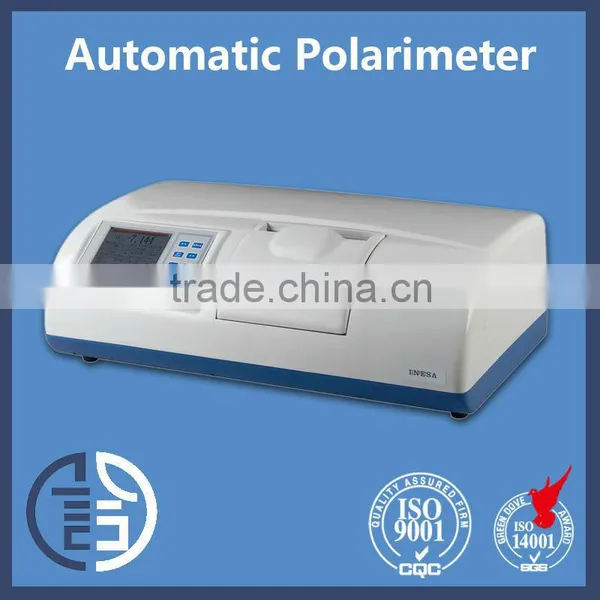

Help CenterSGW-1 Automatic Polarimeter Lab Optical Measurement Analysis Instrument
Related Products
-
SGW-2 Automatic Polarimeter USB & RS232 Laboratory InstrumentsUS$ 3,960 - 3,975MOQ: 1 Set -
SGW-3 Automatic Polarimeter Touch ScreenNegotiableMOQ: 1 Set
-
SGW-5 Lab Digit Automatic PolarimeterNegotiableMOQ: 1 Set
-
WZZ-2S Digital Automatic Polarimeter Photoelectric TesterNegotiableMOQ: 1 Set
-
WZZ-2B Automatic Polarimeter Automatic Servomechanism ControlNegotiableMOQ: 1 Set
Haracteristics
Need not prewarm when turning on.
Measuring specific rotation, optical rotation, sugar degree and concentration
Automatic repetition-measurement for 6 times, and calculation of average value and means square root
Sample chamber adopts constant temperature designing in order to decrease the temperature heating effect on measurement
Measurement of dark-colored sample
USB
Specifications
Measurement range: -45~+45, -120~+120Z
Accuracy:
(0.005 + measuring value 0.03%)
(0.015Z + measuring value 0.03%)
Minimum indicating value: 0.001, 0.01Z
Repeatability: sample transmittance>1% 0.002 ( 0.006Z)
Display: LCD
Light Source: LED (2.4V, 1W, 5000hours)
Operation Wavelength: 589.3nm
Length of Test Tube (100mm and 200mm): 1 each
Weight (Gross): 32 kg
Overall Dimensions: 850mm 470mm 380mm
Optional Accessories: Micro test tube (50mm)
