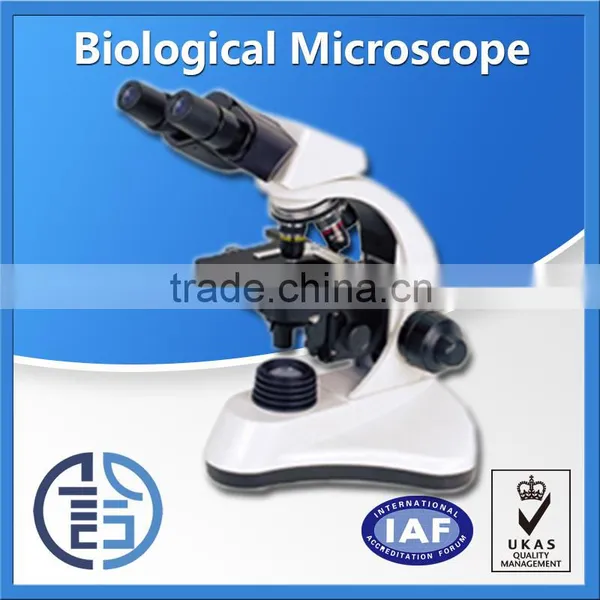

N-200M Biological Microscope Medical Laboratory Microscope Dark Field Microscope

N-200M Biological Microscope Medical Laboratory Microscope Dark Field Microscope thumbnail-1
N-200M Biological Microscope Medical Laboratory Microscope Dark Field Microscope photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
YanHe
Model Number:
N-200M
Contact Supplier Request Quote Chat Now
Shanghai Yanhe Instrument Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name YanHe
Model Number N-200M
Theory Biological Microscope
Drawtube Other, binocular

N-200M Biological microscope medical laboratory microscope dark field microscope

With excellent optical system and reliable structure, it makes the image much sharper, and the operation easier. With wide range of accessories [e.g. dark field, phase contrast, epi-fluorescent] and advances to expand the application scope of the N-200M, the versatility of the microscope provides More Microscopy for you.


Feature:

N-200M Biological microscope medical laboratory microscope dark field microscope Big Operating Space with Backward Nosepiece, Sharp Image with High Quality Objectives
N-200M Biological microscope medical laboratory microscope dark field microscope Easier Comparing Test with Dual Slides Finger of Mechanical Stage
N-200M Biological microscope medical laboratory microscope dark field microscope Comfortable Handling with Precise Focusing System



Specification:

  N-200M
Viewing Head Compensation Free Binocular Head, Inclined at 30° A
Compensation Free Trinocular Head, Inclined at 30° O
Monocular Head, Inclined at 30° O
Eyepiece Wide Field Eyepiece WF10×/ 18 A
Wide Field Eyepiece WF16×/ 11 O
Objective Semi-plan Achromatic Objective 4×, 10×, 40×, 100× A
Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100× O
Nosepiece Backward Quadruple Nosepiece A
Quintuple Nosepiece O
Stage Double Layers Mechanical Stage 140×140mm/ 75×50mm A
Condenser NA 1.25 Abbe Condenser with lris Diaphragm and Filter A
Illumination S-LED Illumination, Brightness Adjustable A
Halogen Lamp 6V/ 20W, Brightness Adjustable O
Kohler Illumination O
Filter Blue Filter O
Green Filter A
Polarization Set Simple Polarization Set O
Phase Contrast Kit Simple Phase Contrast Kit O
Sliding Phase Contrast Kit O
Turret Phase Contrast Kit O
Dark Field Attachment Dark Field Condenser (Dry) NA 0.9 O
Dark Field Condenser (Oil) NA 1.25-1.36 O
Epi-fluorescent Attachment   O
Pointer Green LED Pointer System O
Note: "A" Standard Outfit, "O" Optional
