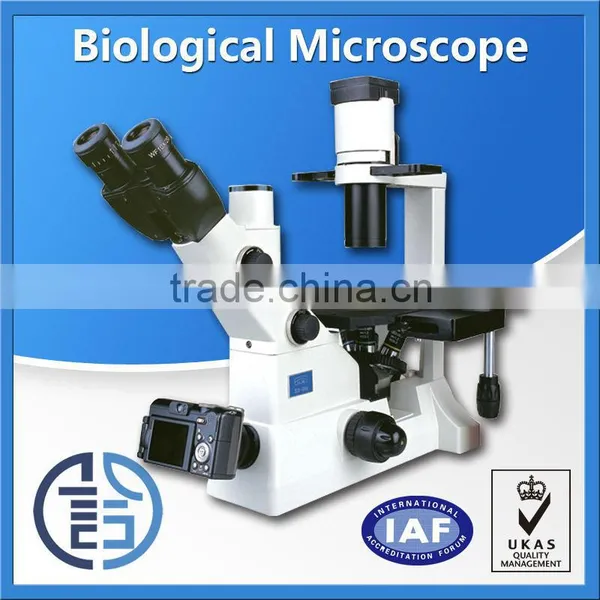

XD-202 Laboratory Biological Microscope Electron Microscopes for Sale

Name: XD-202 Laboratory Biological Microscope Electron Microscopes for Sale
Brand: YanHe
SKU: 113441337
Availability: InStock

US$ 1,704 - 1,814 MOQ: 1 Set

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

YanHe

Model Number:

XD-202

Shanghai Yanhe Instrument Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name YanHe

Model Number XD-202

Theory Biological Microscope

Drawtube Binocular

Specification

XD-202
Optical System	Infinite Optical System		A
Viewing Head	Seidentopf Binocular Viewing Head, Inclined at 45°, 360° Rotatable, Interpupillary 48-75mm		A
Eyepiece	d30 Wide Field Eyepiece WF10×/22, Eyepiece Tube Diameter 30mm		A
	Wide Field Eyepiece WF15×/16		O
	Wide Field Eyepiece WF20×/12		O
Objective	Infinite Plan Achromatic Objective 4×/0.10 WD=22		A
	LWD Infinite Plan Achromatic Phase Objective	10×/0.25 WD=6	A
		20×/0.4 WD=3.1	A
		40×/0.55 WD=2.2	A
	Lamp House Adjustment Objective		O
Nosepiece	Backward Quintuple Nosepiece		A
Condenser	ELWD Condenser NA0.3,LWD72mm(without Condenser 150mm)		A
Centering Telescope	Centering Telescope(φ30mm)		A
Phase Annulus	10×,20×,40× Phase Annulus Plate(Adjustable)		A
	Plain Stage 230×170		A
Stage	Glasse Insert		A
	Attachable Mechanical Stage,X,Y Coaxial Control,Moving Rang 80×120mm		A
	Auxiliary Stage		A
	Terasaki Holder		A
	Petri Dish Holderφ38
	Petri Dish Holderφ54		A
Focusing System	Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range up 4.5mm down 4.5mm		A
Illumination	6V30W Halogen Lamp, Brightness Adjustable		A
Filter	Blue,Green and Ground Glasse,Diameter 45mm		A
Accessories	Photo Attachment		O
	C Mount 0.4×		O
	Epi-Fluorescent Attachment		O
Note: "A" Standard Outfit, "O" Optional
