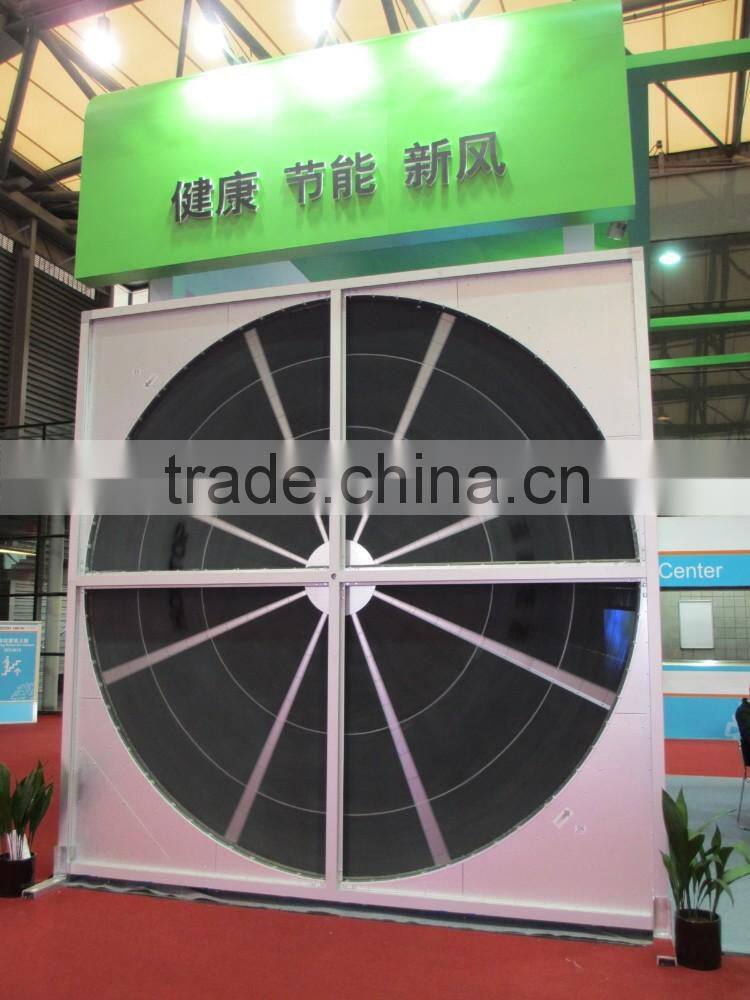

Heat Recovery Wheel, Rotary Heat Wheel
- 350 Unit / Units per Month
- Tianjin Port
- T/T Credit Card
- Enthalpy Heat Wheel
- Heat Recovery Wheel with 3A molecular sieve
- Hygroscopic Type Heat Recovery Wheel
- Hygroscopic type Rotary Heat Recovery Wheel, Eurovent Certificate
- Hygroscopic & Sensibel type Rotary Heat Recovery Wheel, Eurovent Certificate
- Hygroscopic & Sensibel Heat Recovery Wheel, Rotor Wheel, Eurovent Certificate
Product Details
Place of Origin: | Beijing, China | Brand Name: | Holtop | Model Number: | HRT500-5000 |
Type: | Other, Ventilation | Application: | Refrigeration Parts | Certification: | Other, Third Party Test Report |
Packaging Details
Wooden Pallet
Product Description

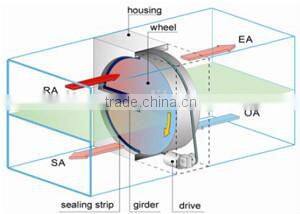

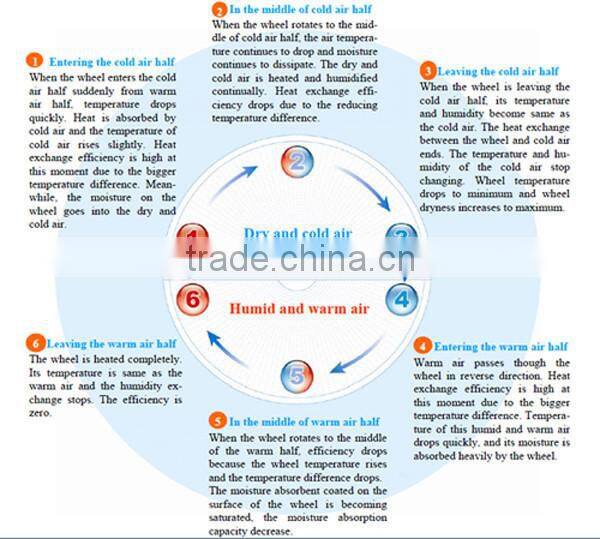

Working Principle
Features
Wheel materials: the sensible rotary heat exchanger is made by aluminum foils of 0.05mm thickness. The total hygroscopic enthalpy heat recovery wheel is made by aluminum foils coated with 3A molecular sieve of 0.04mm thickness. Molecuar sieve selectively absorbs moisture and expels odor by molecular lattice. .
Wheel construction: The mass of rotary heat exchanger is made of alternating layers of flat and corrugated aluminum foil to form the alveolate shape. Various height of corrugation is available. Flat surface ensures minimum leakage. Interior spokes are used to mechanically bond the rotor's laminations. These are threaded at the hub and welded at the periphery.
Laminar flow channels with self-cleaning, Double sealing sysem around rotor periphery and central beam.
Purge sector: ensures the cleaning effectiveness and ensures a leakage below 0.3% from exhaust air to outdoor air.
Bearing and lubrication: life-time lubricated ball bearing or roller bearing, and with covers at both sides. No maintenance needed under normal usage.
Driving system: The drive system is composed of motor, turbine-worm reducer, belt pulley and V belt. The motor is installed on the special bracket tensioning by the spring, it can ensure the gradually loose of V-belt in case of sudden stop.
Operation control: optional.
Application

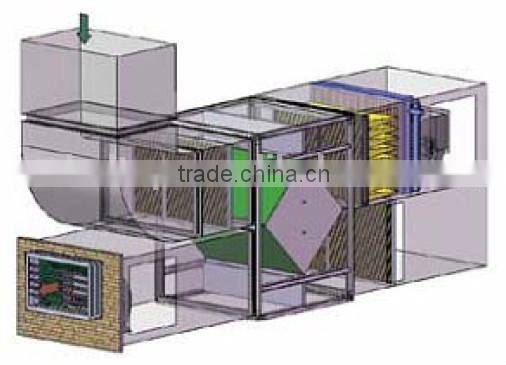

Air to air rotary heat exchanger can be built in air handling unit(AHU) as a main part of heat recovery section. Usually side panel of the exchanger casing is unnecessary, except that bypass has been set in AHU.
It can also be installed in the ducts of ventilation system as a main part of the heat recovery section, connected by flanges. In this case, side panel of the exchanger is necessary to prevent leakage.

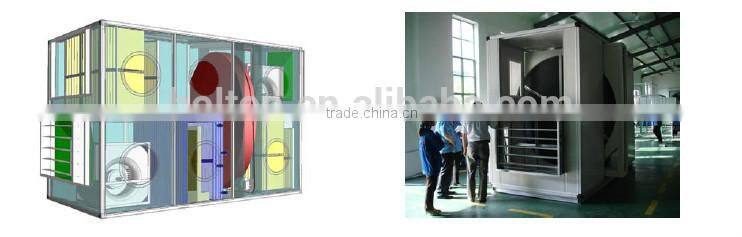

AHU on CRH

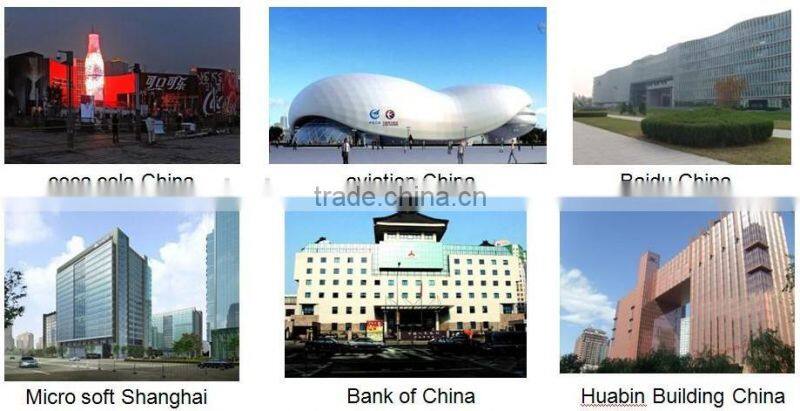

Project Cases
Certification
Need more information,
Company Profile
Founded in 2002, we are a famous air to air heat exchanger equipment manufacturer in China. Our company is located in Baiwang Mountain Forest Park that is famous for "Oxygen Source of Beijing", with construction area of 30,000 square meters. Yearly production quantity reaches 100,000 sets. We have been dedicating to researching and developing air heat exchange technology since setting up. We were one of the main companies engaged in editing national standard "GB/T 21087-2007 air to air energy recovery equipment" in 2007 and "unit type ventilation air to air heat recovery units for air condition" in 2013.
We master air heat exchange core technology. We independently develop various kinds of heat exchangers such as plate, rotary, heat pipe type and liquid circulation type etc. and use the heat exchange technology developing heat recovery ventilator and combining heat recovery air handling units, wind turbine air to air heat exchange coolers etc., which are widely applied to healthy green house, commercial central air condition, industrial purification central air condition, wind turbine, basement station cooling system etc. Our products sell in native and export to 41 foreign countries and areas. Heat recovery ventilator and heat exchanger rank top one in native market share.
